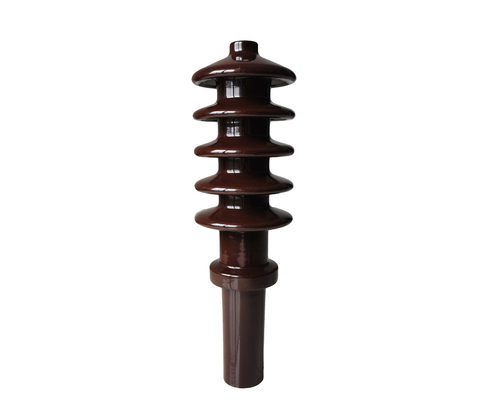

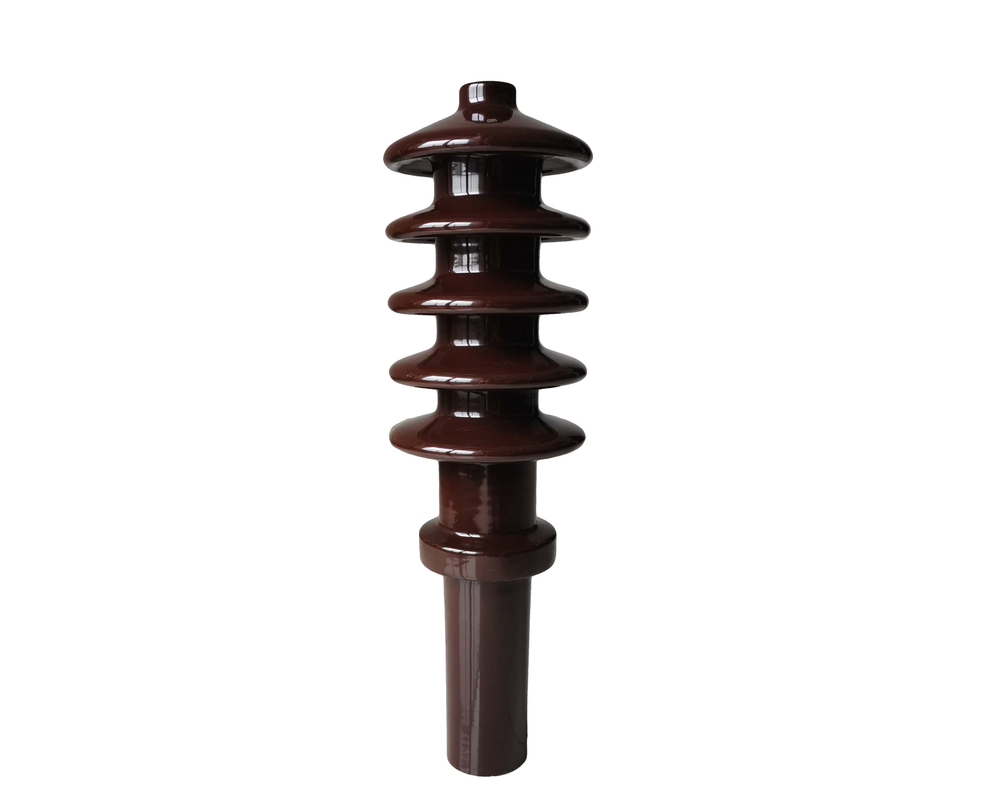

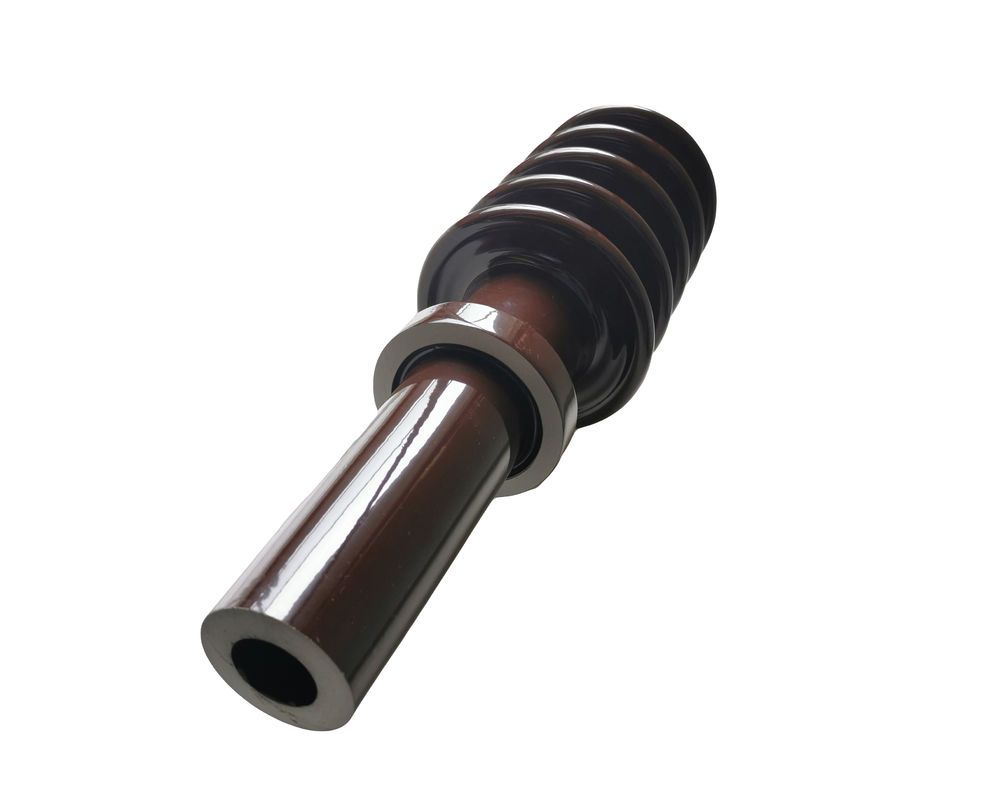

Brown 6.6kg 30NF250 High Voltage Power Line Insulators

Brown 6.6kg 30NF250 High Voltage Power Line Insulators

  • High Light

    30NF250 High Voltage Power Line Insulators

    ,

    6.6kg High Voltage Power Line Insulators

    ,

    30NF250 Brown Power Line Insulators

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    IEC
  • Product Name
    Transformer Porcelain Bushing
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    33kV,30NF250
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

Brown 6.6kg 30NF250 High Voltage Power Line Insulators


IEC standard High voltage Porcelain Power Line Insulators / brown color


Description:

DIN 42531 Height(mm) Creepage distance (mm) Power frequency withstand voltage(kV) Lightning impluse withstand voltage(kV) Weight(kg)
30NF250 485 600 70 170 6.6





Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current


Features:

Excellent thermal stability, with low dielectric losses even athigh operating temperatue (such as 90°C).
Equipped with test tap for tan δ and partial discharge measurement on transformer.
Less maintenance and resistance to aging.
Hermetically sealed with separate oil system.



Competitive Advantages:



Timely delivery.

Twenty four hours on-line service.

After delivery, we will track the products for you, until you get the products. When you got the goods, test them, and give us a feedback.
