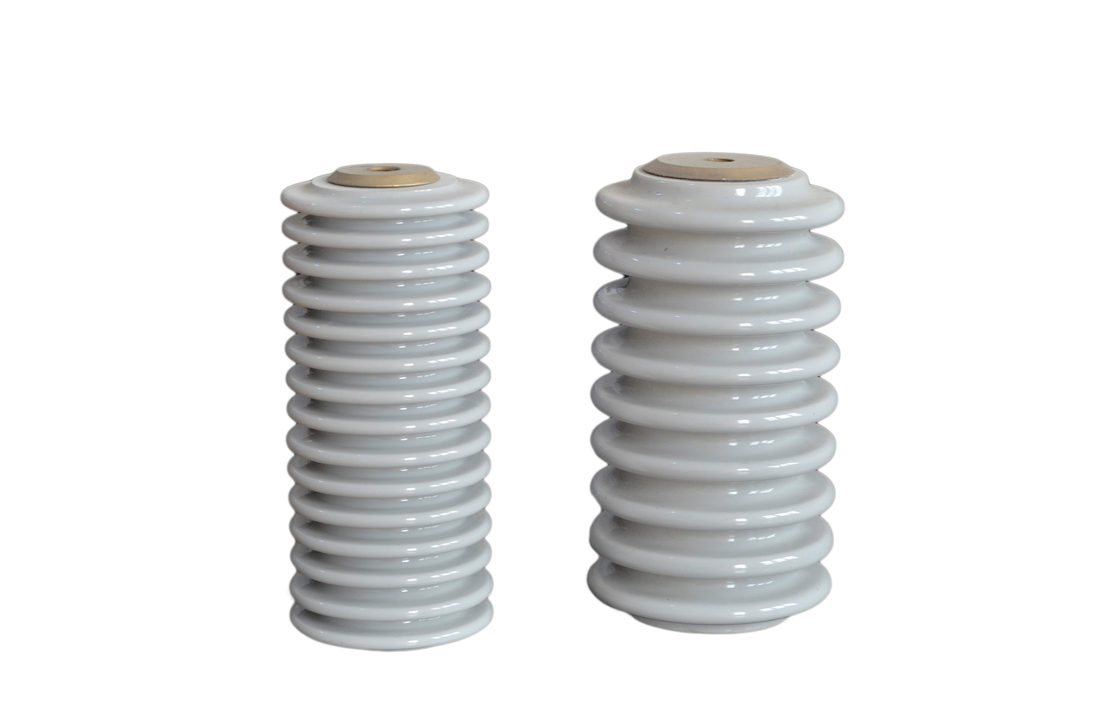

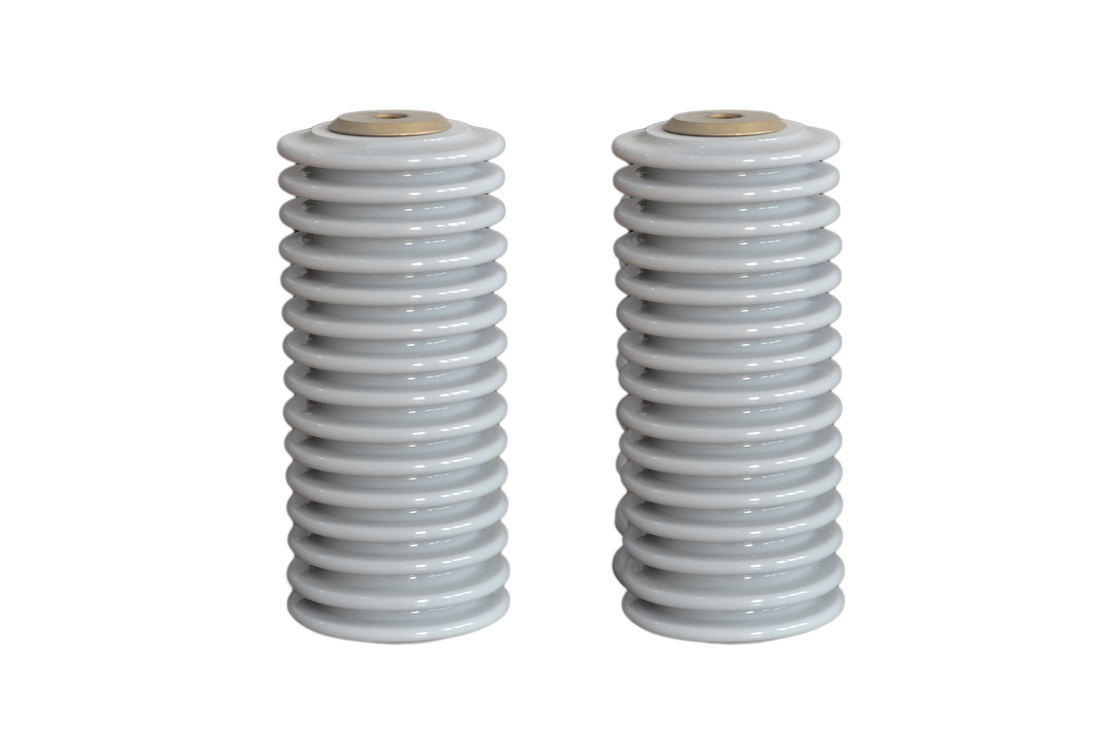

ANSI 13.3kN 14.4KV High Voltage Standoff Insulators

ANSI 13.3kN 14.4KV High Voltage Standoff Insulators

  • High Light

    14.4KV High Voltage Standoff Insulators

    ,

    13.3kN High Voltage Standoff Insulators

    ,

    14.4KV Standoff Insulators

  • Color
    Light Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    A20-4
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    2000PCS PER MONTH

ANSI 13.3kN 14.4KV High Voltage Standoff Insulators



ANSI 14.4KV indoor post insulator/ light gray / OEM design available





Description:

ANSI CLASS Rated voltage (kV) Height (mm) cantilever strength (kN) Tensile strength (kN) Torsion strength (N.m) Compression strength (kN) Power frequency withstand voltage(kV) Impulse withstand voltage (kV)
A20-4 14.4 190.5 4.5 13.3 396 88.9 50 110

Our porcelain insulators are manufactured using a wet porcelain process and cured in an environmentally controlled production facility to ensure a complete and even cure of the porcelain while also resulting in the highest quality surface finish.





Features:



Insulator fittings , other than the suspension clamp ,which is physically in contact with the aluminum conductor, shall be made of galvanized steel with the exception of some critical items, such as the split pin of ball and socket clevises, which shall be made of pressed steel.




Application:



post insulators are designed to provide rigid support of conducting cable while offering the maximum resistance to damage from electrical or mechanical events. Horizontal and gain-base line post insulators are often used in applications to avoid the need to install a cross-arm on the pole.





Ordering instructions:



1.If the porcelain insulator is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.

2.When the user has special requirements, the design can be carried out according to the user's requirements.
