Description:

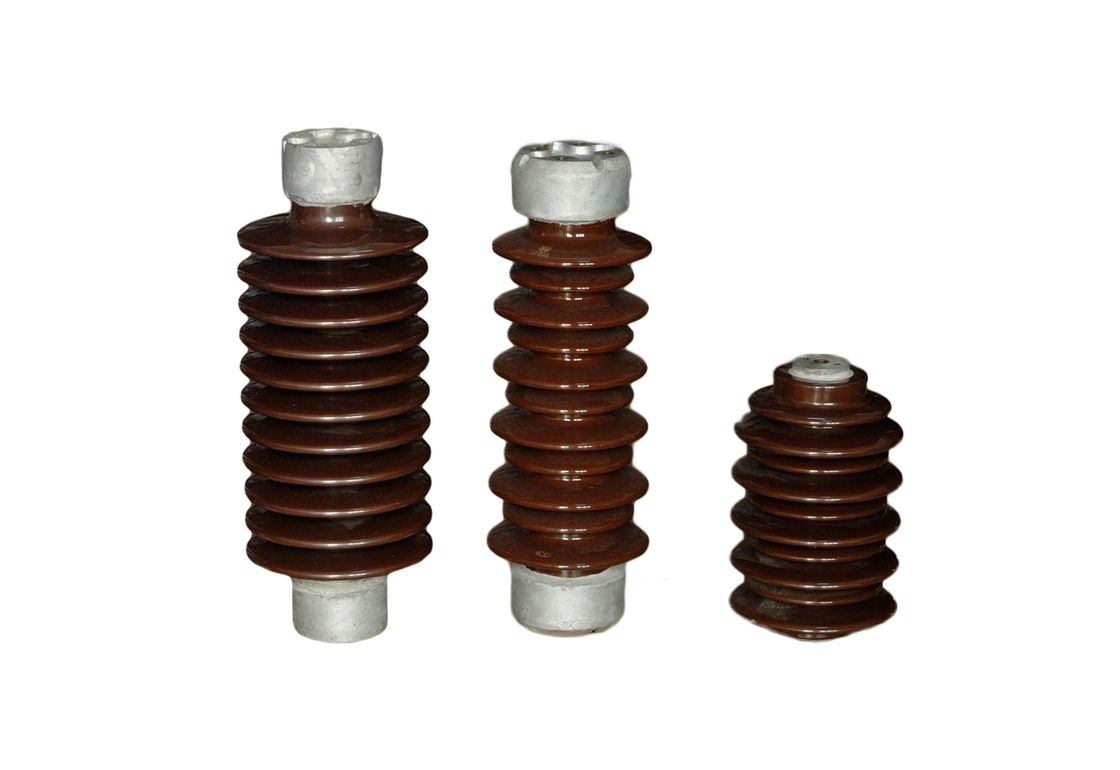

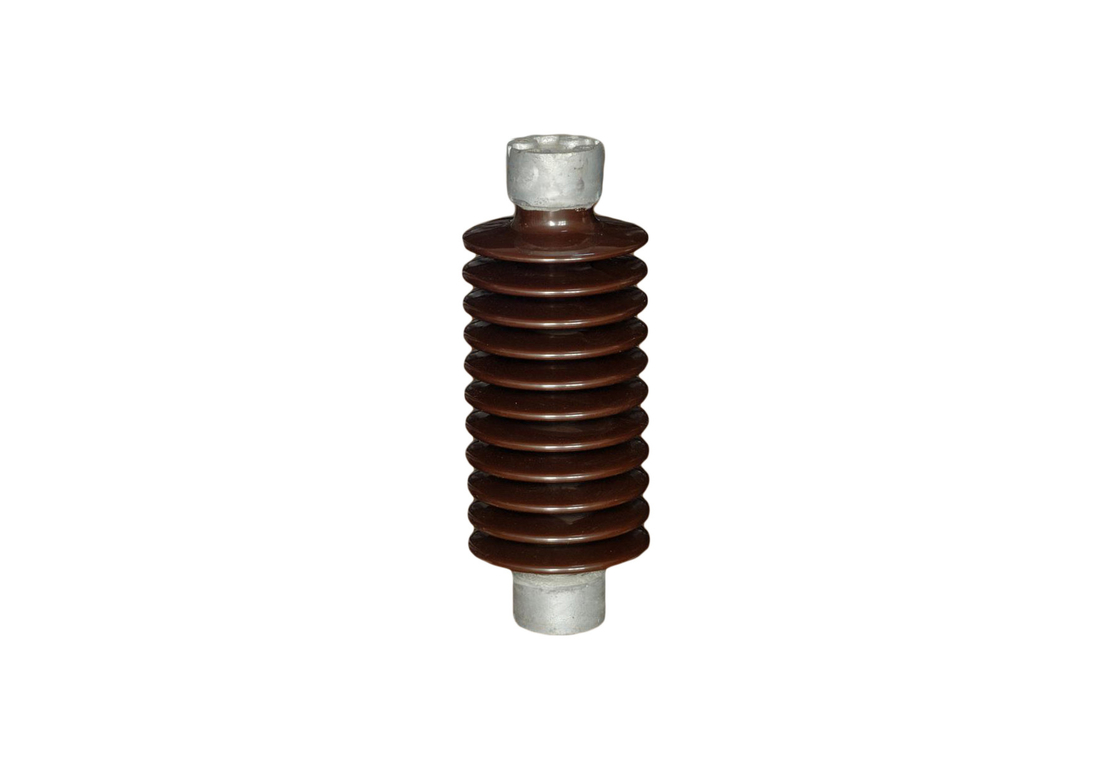

We offers a wide range of porcelain station post insulators. For decades, these products have demonstrated reliable performance in various types of applications all over the world. Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation. Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.
Specifications:
| Technical Data Sheet | |||||||||
| ANSI CLASS | Creepage distance (mm) | Torsion strength (N.m) | cantilever strength (kN) | Lower frequency flashover voltage | Critical impulse flashover voltage | Impulse withstand voltage (kV) | Weight (kgs) | ||
| Dry(kV) | Wet(kV) | Positive (kV) | Negative (kV) | ||||||
| TR-208 | 610 | 904 | 8.9 | 110 | 75 | 170 | 250 | 150 | 11 |
Features:
1. Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body.
2. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.
3. Either chocolate brown or Munsell gray glaze is available. caps and flanges are ferrous, hot dip galvanized. thread holes are proper tapped.
Competitive advantages:
1.Efficient and fast responses are pre-requisite.
2.Maintain composure and patience in the face of difficult situations of clients.
3.Training of introduction of equipment are offered according to client's demand.
4.Build up long-term and stable partnerships, and constantly provide high-quality products.
5.Equipment are guaranteed up to one year and an overall after-sales service is provided.
Our products are sold all over the world, you can rest assured.
