Descriptions:

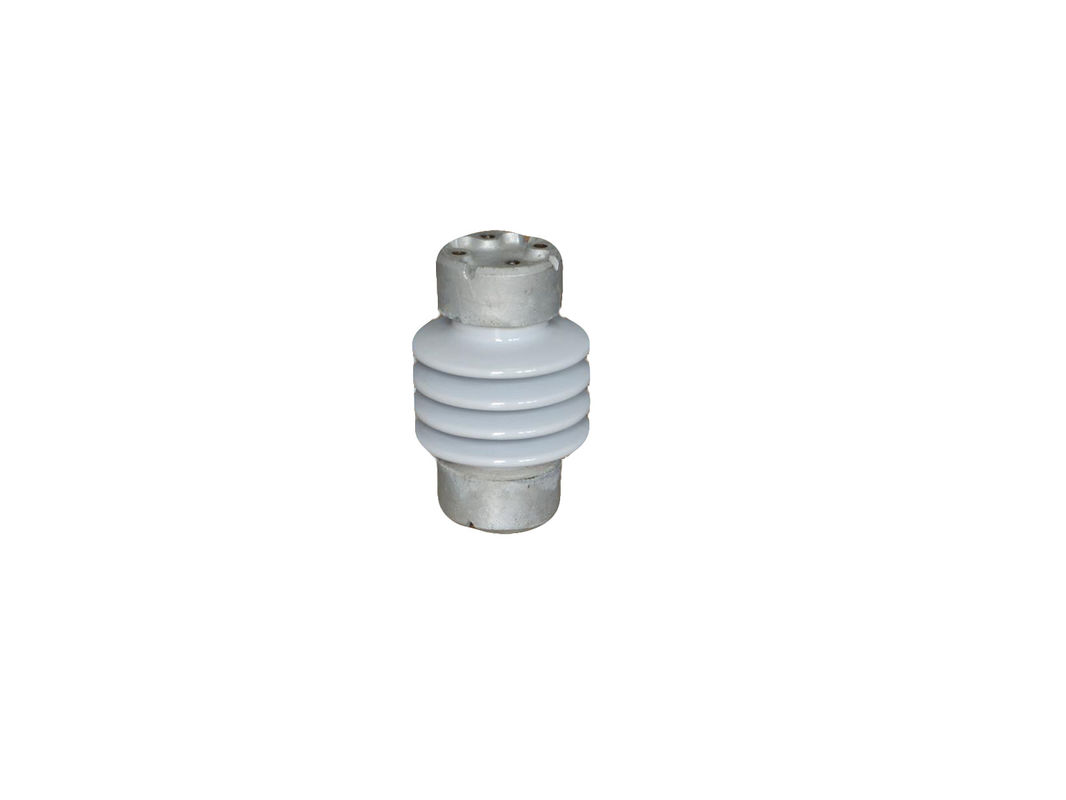

Solid-core porcelain insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.
Specifications:
1. Glaze: Light Gray
2. Creepage distance: 394mm
3. Impulse withstand voltage: 110kV
4. Wet power frequency withstand voltage: 45kV
5. Cantilever strength: 8.9kN Torsion strength: 791N.m
6. Compression strength: 44.5KN Tension strength: 38KN
7. Standard: ANSI C29.9
Pre-sales service:
1. Choose the proper reactor type
2. Installation recommendations and to provide technical information
3. Satisfied users of the special design requirements
After-service sales:
1. Offer professional equipment installation instructing
2. Provide spare parts for wearing parts(such as post insulator, bolt, etc.)
Competitive advantages:
Reasonable insulation structure high reliability of inter-turn insulation.
Stainless steel flange low magnetic inductivity high resistivity.
Convenient transportation and flexible installation.
Low loss
Low temperature rise
High mechanical strength, strong weather ability.
Outstanding crack resistance.
Low thermal expansion coefficient
Our products are sold all over the world, you can rest assured.
