Porcelain Solid Core Station Post Insulator

Porcelain Solid Core Station Post Insulator

  • High Light

    Porcelain Solid Core Station Post Insulator

    ,

    ANSI Solid Core Station Post Insulator

    ,

    Porcelain Solid Core Post Insulators

  • Color
    Light Gray
  • Material
    Porcelain C-120
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    TR-208
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

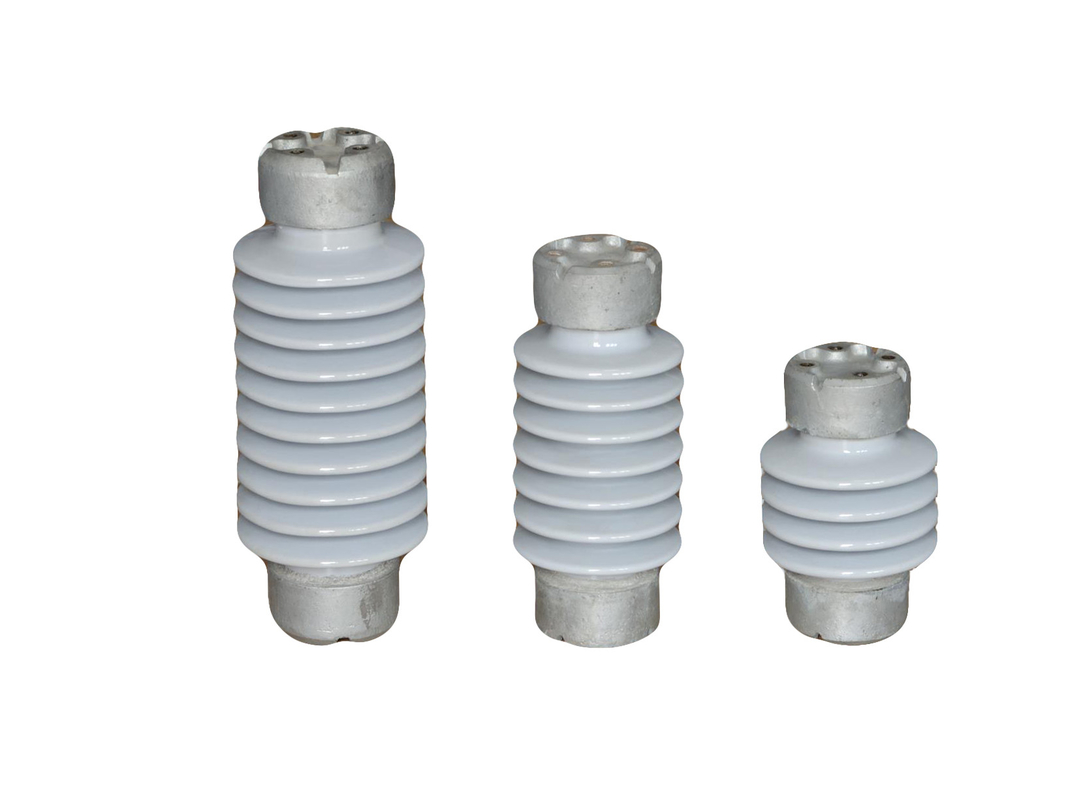

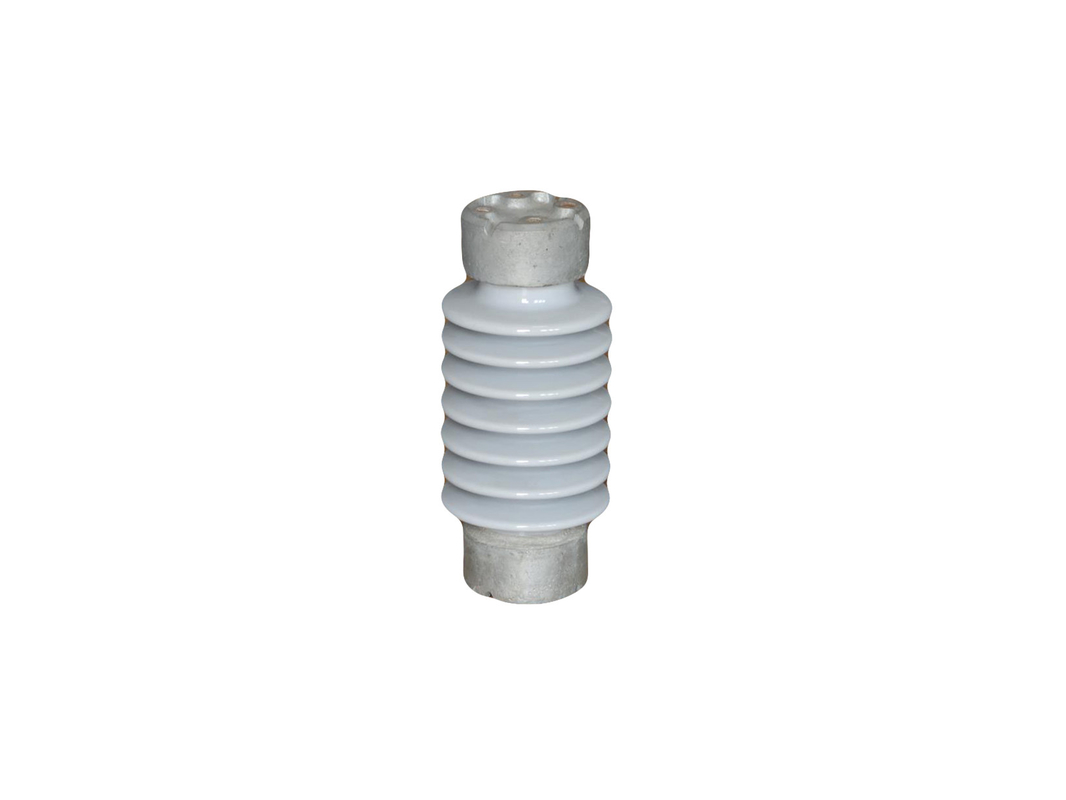

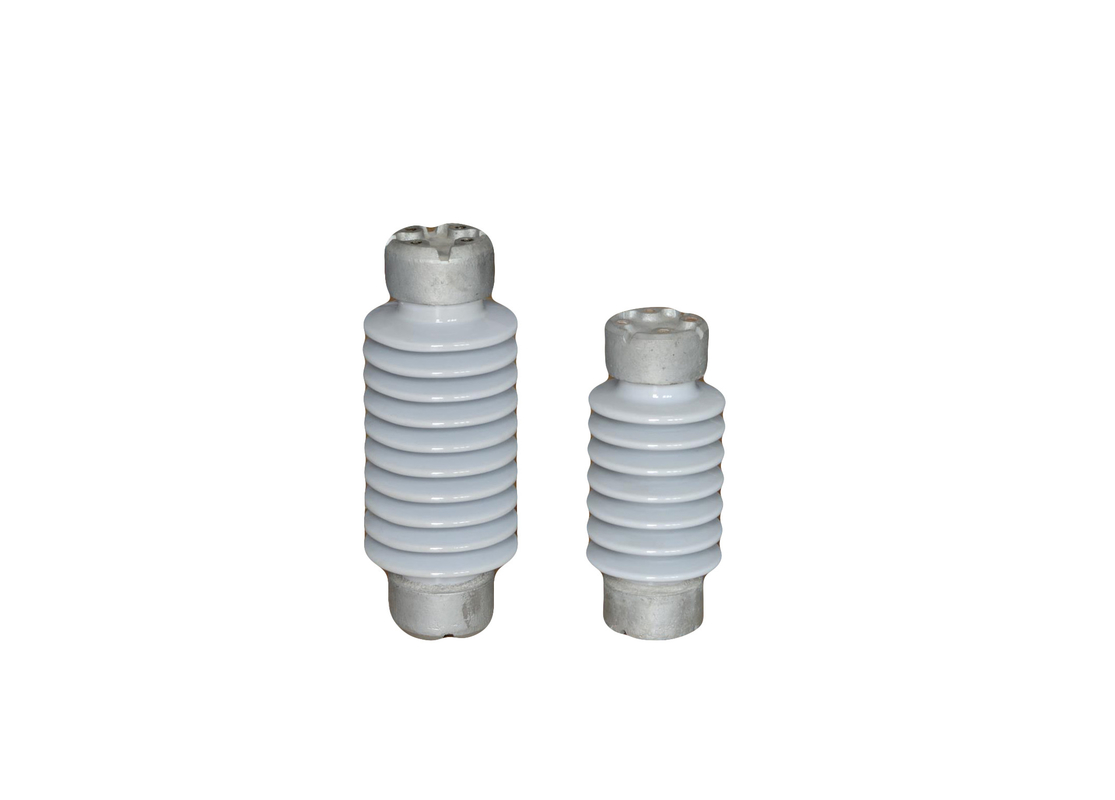

Porcelain Solid Core Station Post Insulator



Light gray color TR-208 Transmission line Soild-Core Station post insulator



Descriptions:

1. Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body.
2. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.
3. Either chocolate brown or Munsell gray glaze is available. caps and flanges are ferrous, hot dip galvanized. thread holes are proper tapped.


Specifications:



Technical Data Sheet
ANSI CLASS Creepage distance (mm) Torsion strength (N.m) cantilever strength (kN) Lower frequency flashover voltage Critical impulse flashover voltage Impulse withstand voltage (kV) Weight (kgs)
Dry(kV) Wet(kV) Positive (kV) Negative (kV)
TR-208 610 904 8.9 110 75 170 250 150 11



Applications:

The insulator can be used as insulation parts ,which provide mechanical support . it can also be used as electrical canbinet insulation parts.




Design features:


1. Porcelain part of this series post insulator is solid construction with cylinder sand on cementing part.The porcelain body was bond with metal part by cement.Brown glaze color on porcelain surface which also can be white or gray as per customer’s requirement.
2. The material for metal part adopt nodular cast iron with high mechanical strength conducting hot galvanizing and better resistant to rust.
