Brown 95BIL High Tension Insulators For Switches

Brown 95BIL High Tension Insulators For Switches

  • High Light

    95BIL High Tension Insulators


    Brown High Tension Insulators


    95BIL Insulators For Switches

  • Color
  • Material
    Porcelain C-120
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
  • Size
    Customized Size
  • Sample
  • Oem
  • Pack
    Standard Export Packing
  • Place of Origin
  • Brand Name
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
  • Delivery Time
  • Payment Terms
    T/T, L/C
  • Supply Ability

Brown 95BIL High Tension Insulators For Switches

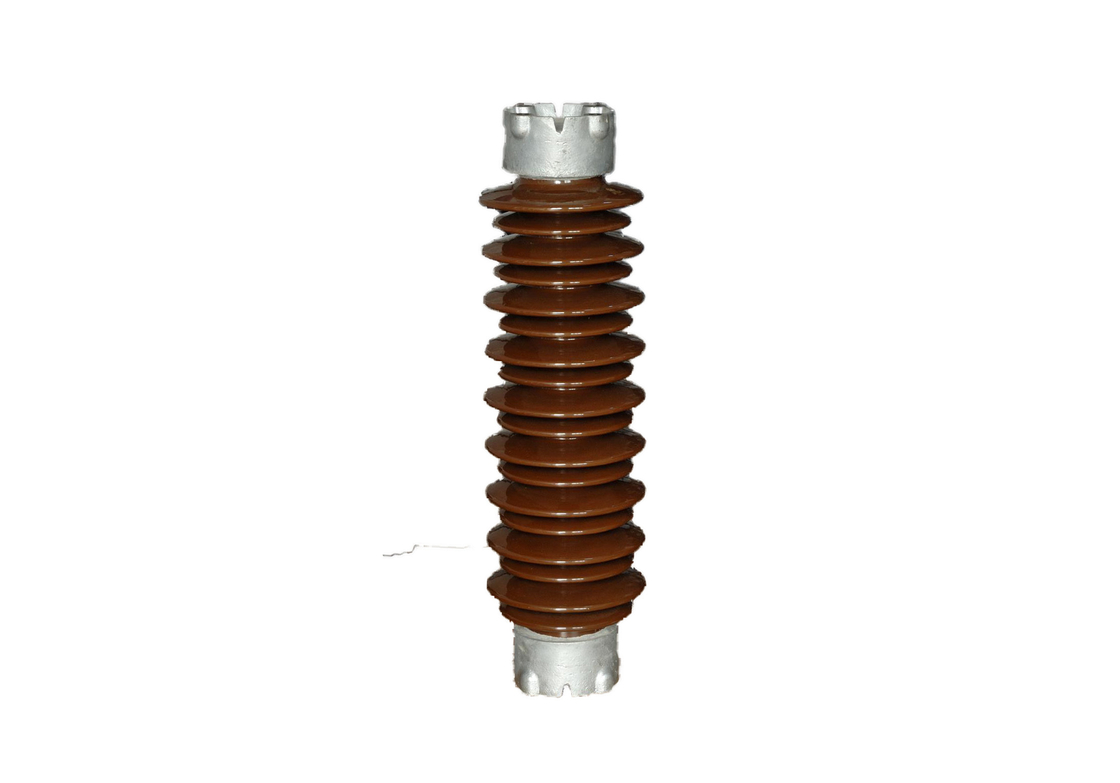

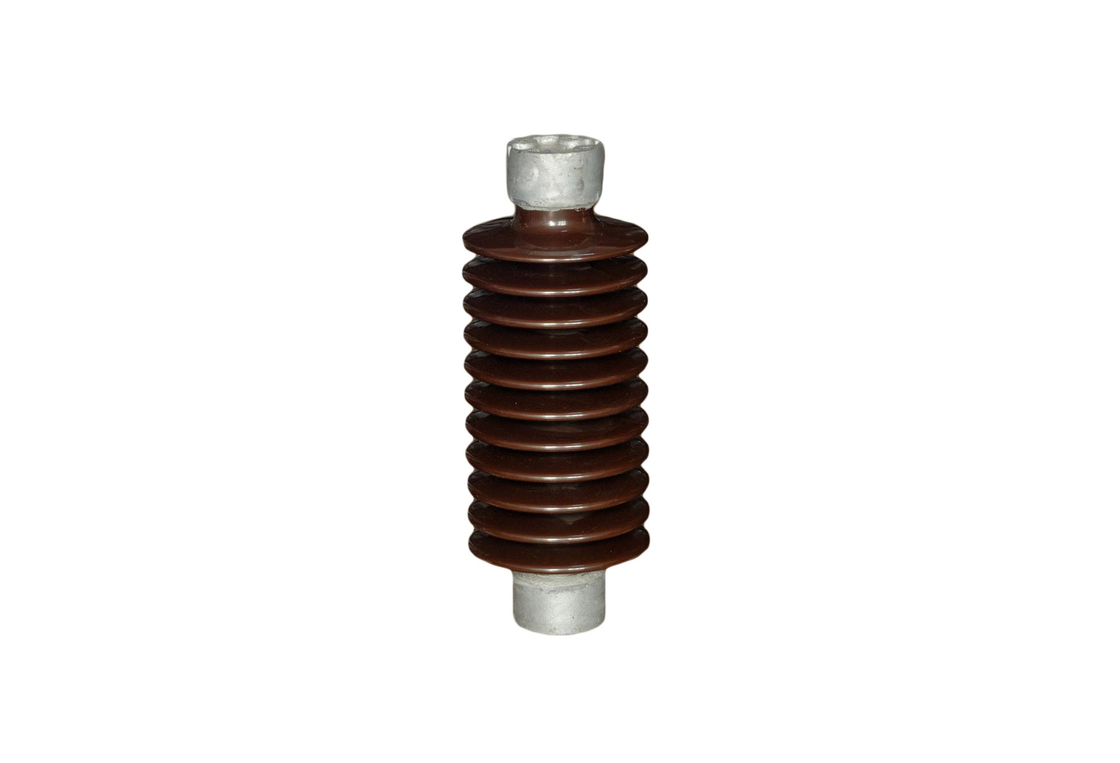

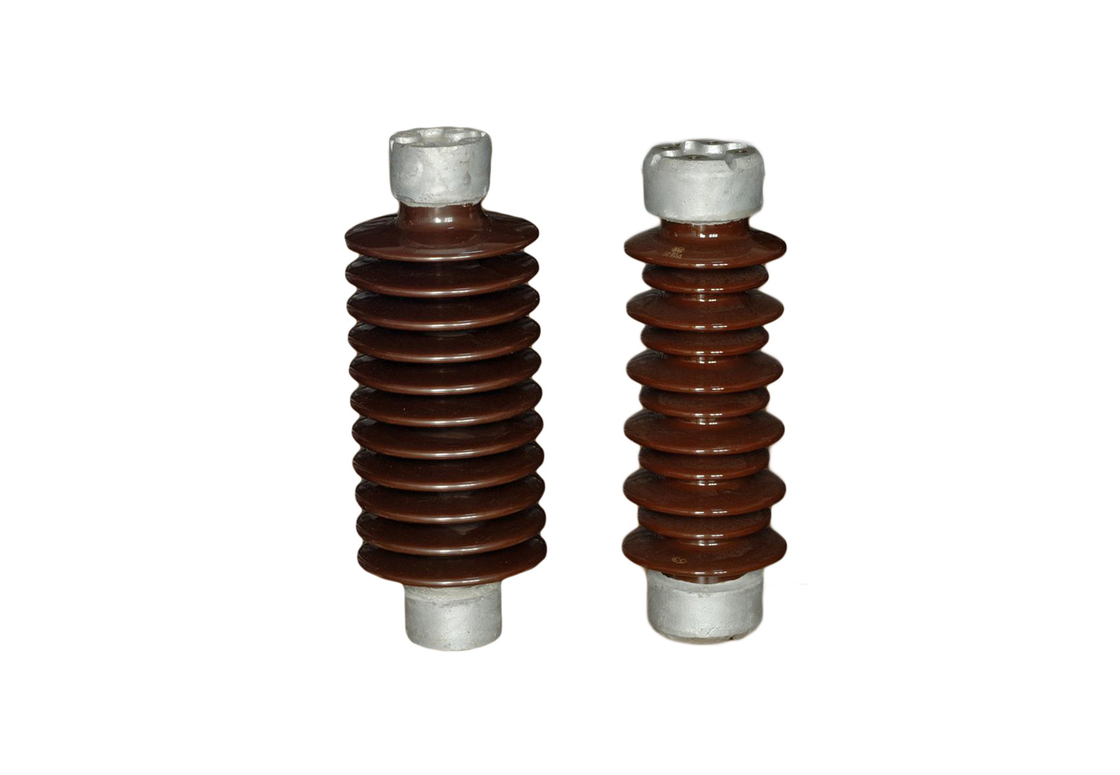

Brown color transmission line Soild-Core Station post insulator for switches





Basic Insulation Level(kV) 95
IEC Post Insulator Designation C4-95Ⅱ C4-95Ⅱ C6-95Ⅱ C8-95Ⅱ
Cat. No. 34431 34431W 34432 34430H
Creepage Distance (mm) 380 550 380 394
Failing Load Bending (kN) 4 4 6 8
Torsion (kN.m) 0.8 0.8 0.8 1.2
Main Dimensions H (mm) 255 255 255 255
φD (mm) 142 184 142 158
Top a1 (mm) 4-M12 4-M12 4-M12 4-M12
φd1 (mm) 76 76 76 76
Bottom a2 (mm) 4-M12 4-M12 4-M12 4-M12
φd2 (mm) 76 76 76 76
Impulse Withstand Voltage (kV) 95 95 95 95
Wet Power Frequency Withstand Voltage(kV) 38 38 38 38
Net Weight, Each, Approx(kg.) 6.4 9 6.4 6.8



Post insulators are divided into line post porcelain insulator, cross arm porcelain insulator and long rod suspension insulator, etc. They have characteristic of no puncture, high mechanical strength, excellent insulation and anti-pollution.



Product features:


To ensure mechanical strength and heat stability we adopt high strength ceramic formula contenting higher aluminium oxide. As per drawing and standard requirement,all post insulator will conduct visual dimension ,geometric tolerance ,ultrasonic test and four-way bending test one by one.

High-voltage insulators made by KSIpower posses beautiful appearance ,pure glaze,reasonable structure,good resistance to heat and cold, stronger for low temperature cold resistance,good earthquake.



Competitive advantages:


Reasonable insulation structure high reliability of interturn insulation.

Stainless steel flange low magnetic inductivity high resistivity.Small volume light weight.

Convenient transportation and flexible installation.

Low OSS.Low temperature rise.High mechanical strength, strong weather ability.

Outstanding crack resistance.

Low thermal expansion coefficient.
