Lower Part Screwed Porcelain C110 34.5kV Porcelain Power Line Insulators

Lower Part Screwed Porcelain C110 34.5kV Porcelain Power Line Insulators

  • High Light

    34.5kV Porcelain Power Line Insulators

    ,

    C110 Porcelain Power Line Insulators

    ,

    34.5kV Lower Part Screwed Insulators

  • Color
    Light Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    34.5kV
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

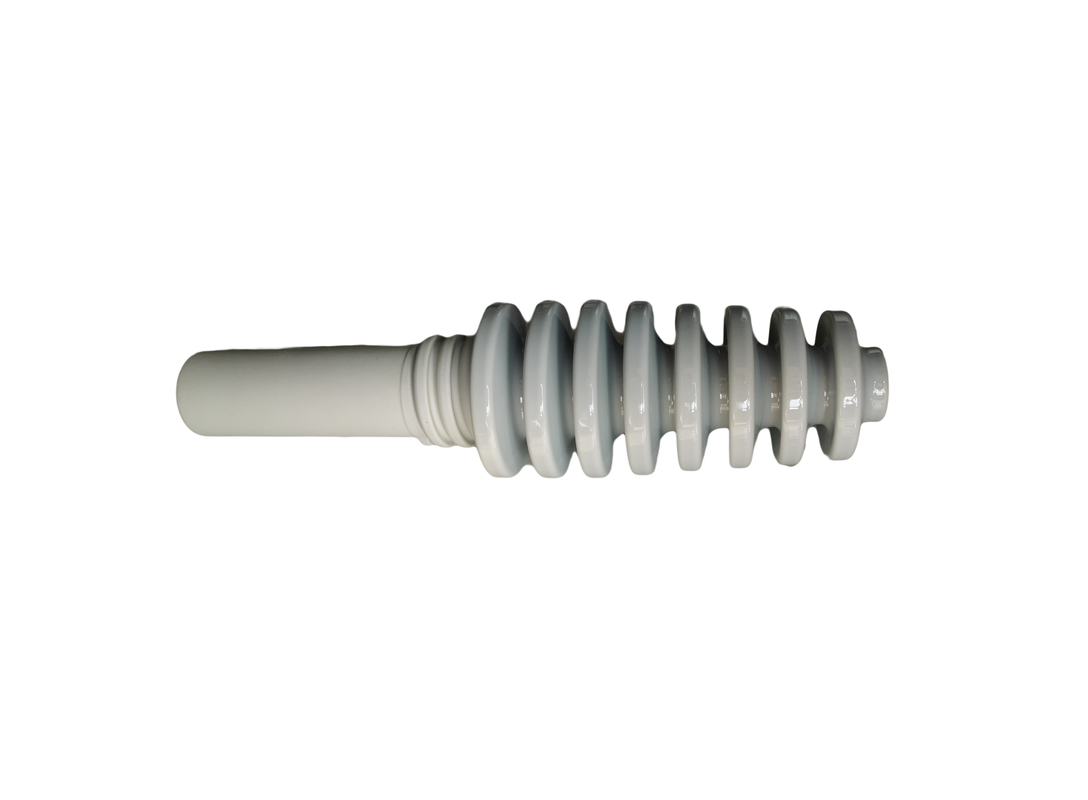

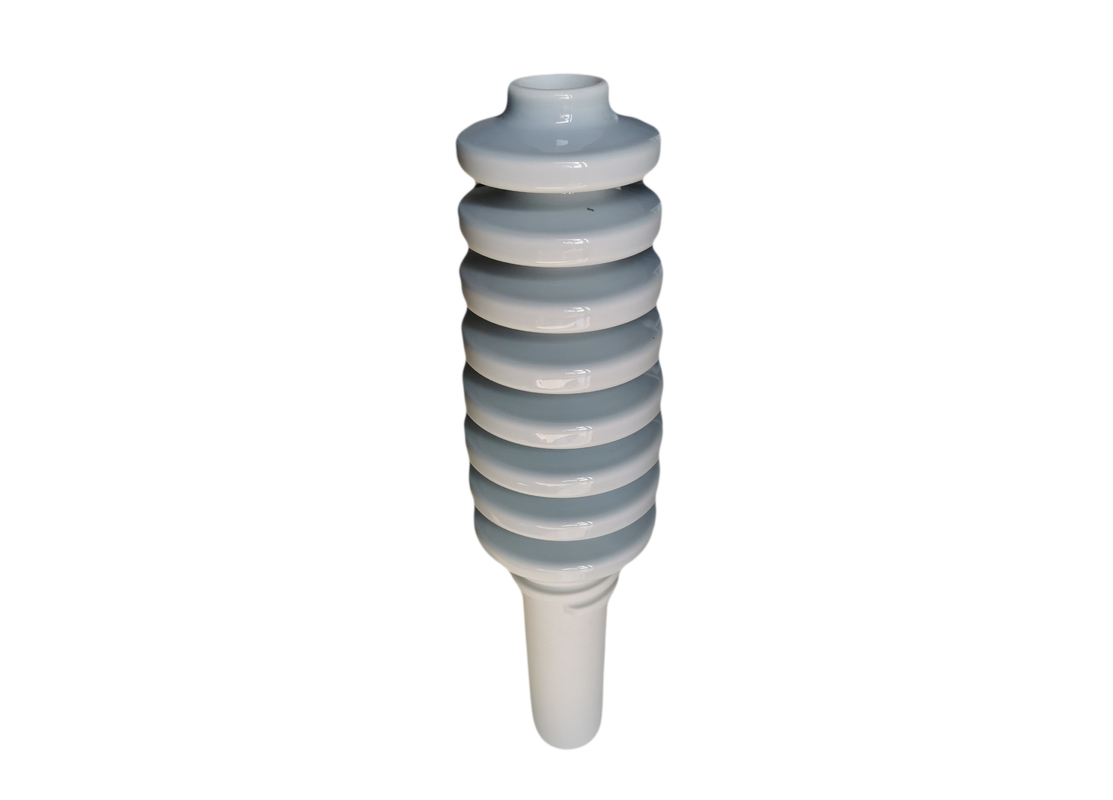

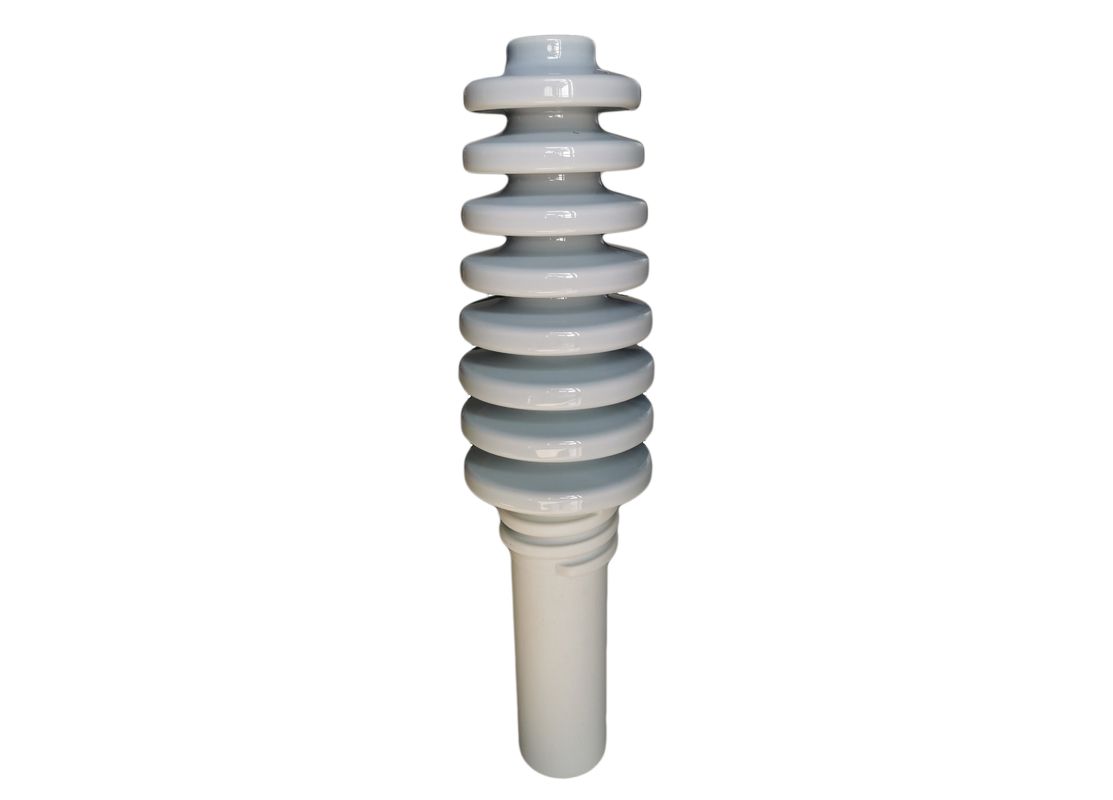

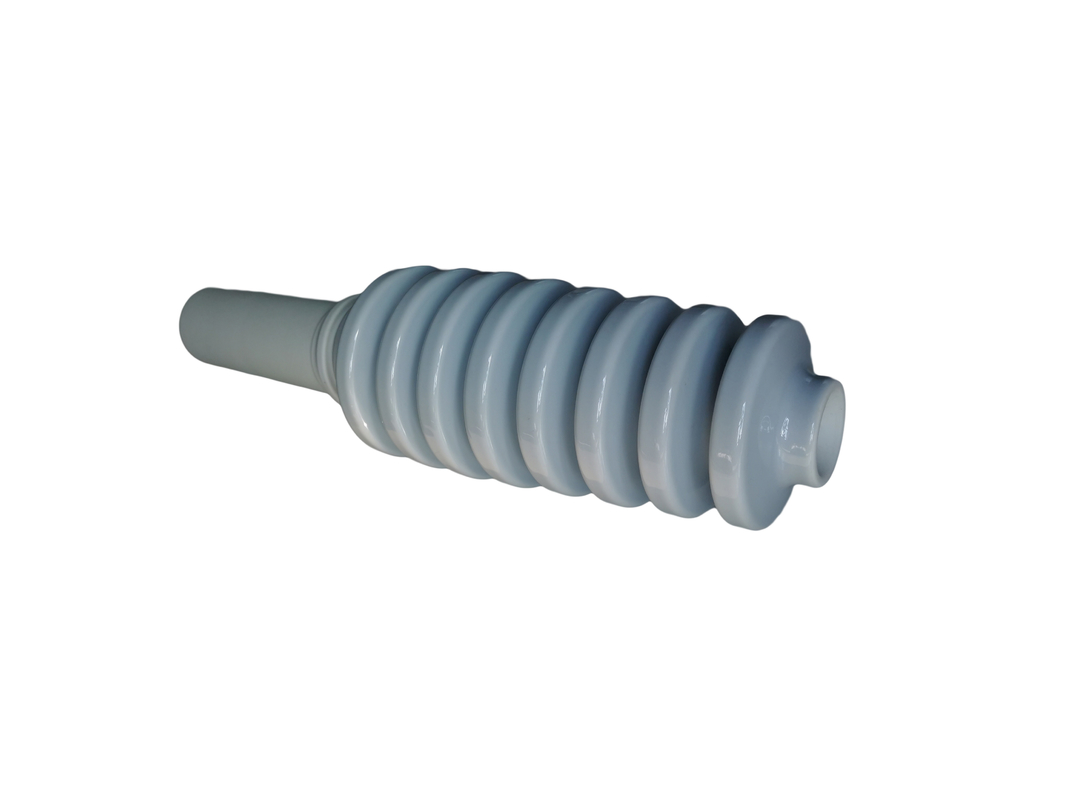

Lower Part Screwed Porcelain C110 34.5kV Porcelain Power Line Insulators



Lower part screwed Porcelain Power Line Insulators for US market / light gray



Descriptions:

ANSI CLASS Height(mm) Creepage distance (mm) Dry arcing distance (mm) BIL(kV) Torsion strength (N.m)
34.5kV 529 785 350 150 20.3

The ANSI screwed porcelain bushing are internally connected with current transformer oil,effectively solving the problem of oil leakage,poor heat dissipation,high temperature rise,big volume and expensive cost which occurred in traditionally designed OIP bushing.





Application:



At present,the bushing are mainly configured with copper conductor or aluminum conductor,in which the aluminum conductor is cheaper but with equal performance.





Competitive advantages:



1. Make the professional power plan project idea for our client depends on the year experience. including burden capacity analysis, category selection ,technology consultation,assistance with machinery room collocation and advice for facilities installation.

2. Provide nanny-type order tracking service for customers, track and feedback every link in the production and sales process, and establish traceable files.

3. We attach great importance to after-sales service. We will establish a database for users and follow up service regularly.

4. Provide free technical support at any time.
