ANSI Standard C29.9 TR-205 White Porcelain Insulators

ANSI Standard C29.9 TR-205 White Porcelain Insulators

  • High Light

    TR-205 White Porcelain Insulators


    C29.9 White Porcelain Insulators


    TR-205 High Voltage Insulators

  • Color
    Light Gray
  • Material
    Porcelain C-120
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
  • Size
    Customized Size
  • Sample
  • Oem
  • Pack
    Standard Export Packing
  • Place of Origin
  • Brand Name
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
  • Delivery Time
  • Payment Terms
    T/T, L/C
  • Supply Ability

ANSI Standard C29.9 TR-205 White Porcelain Insulators

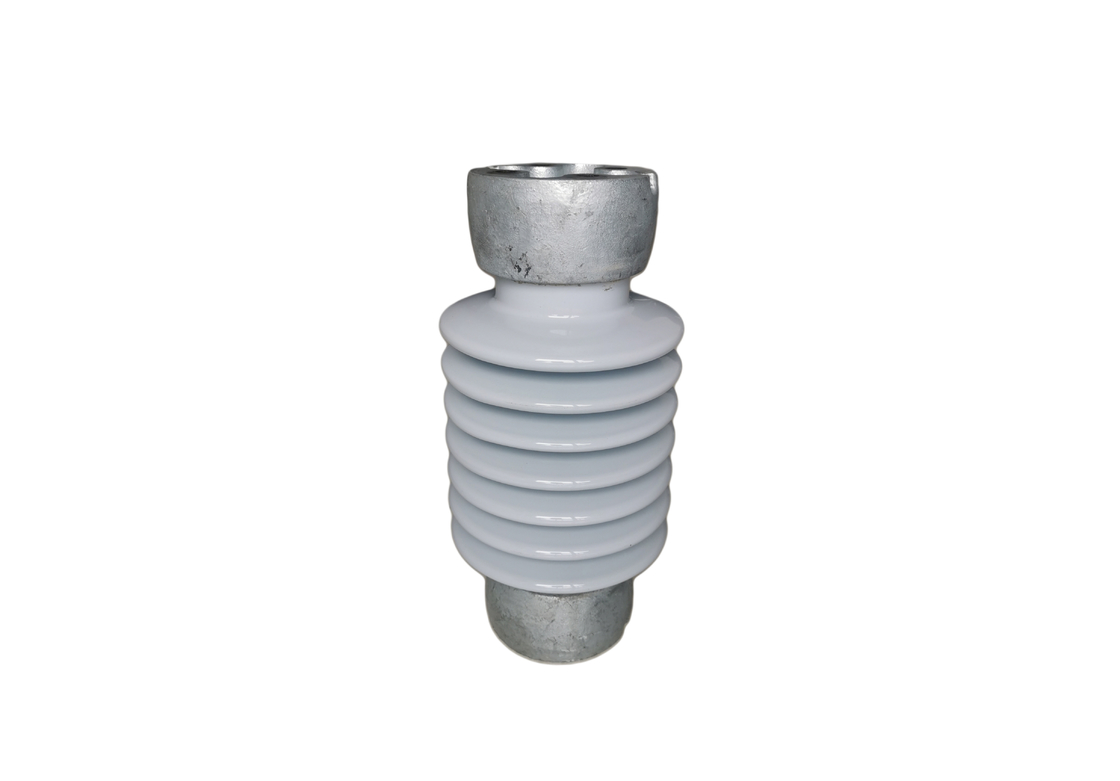

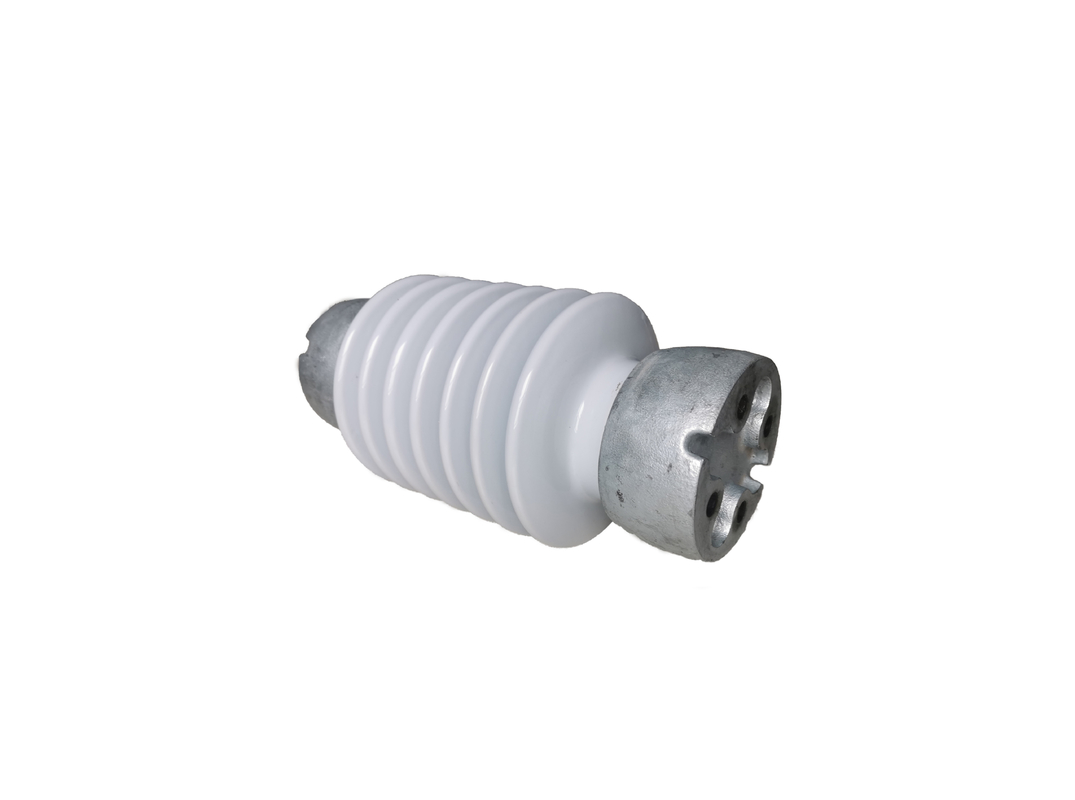

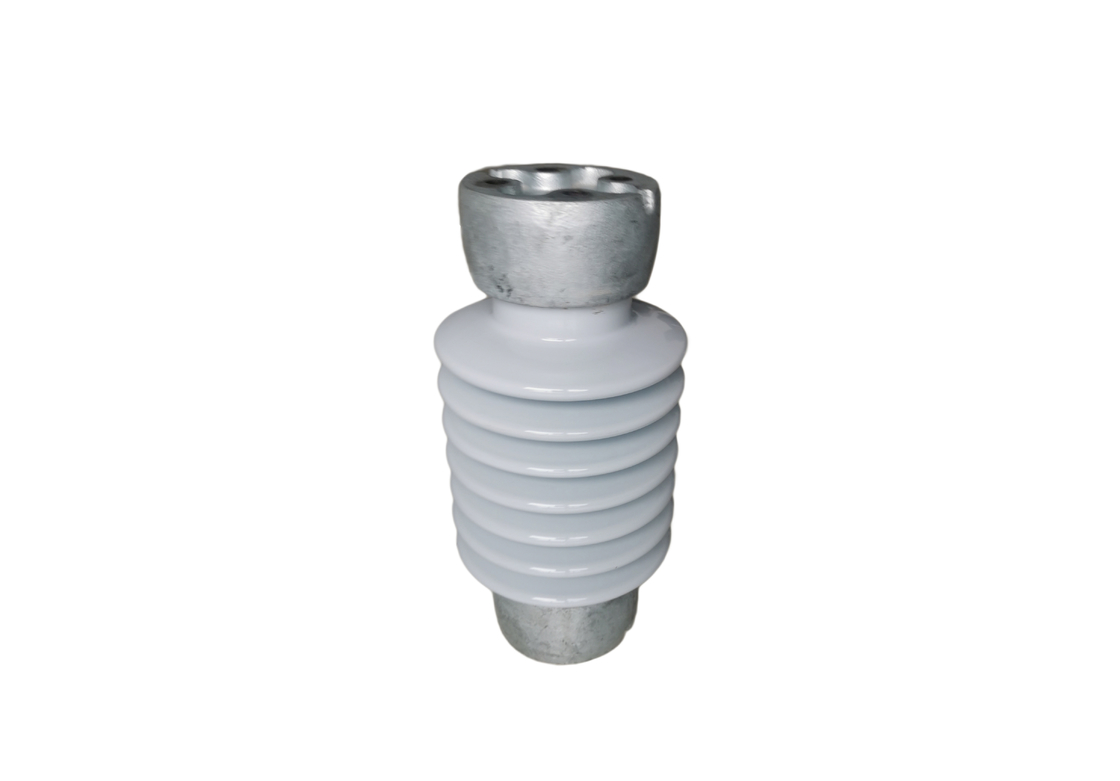

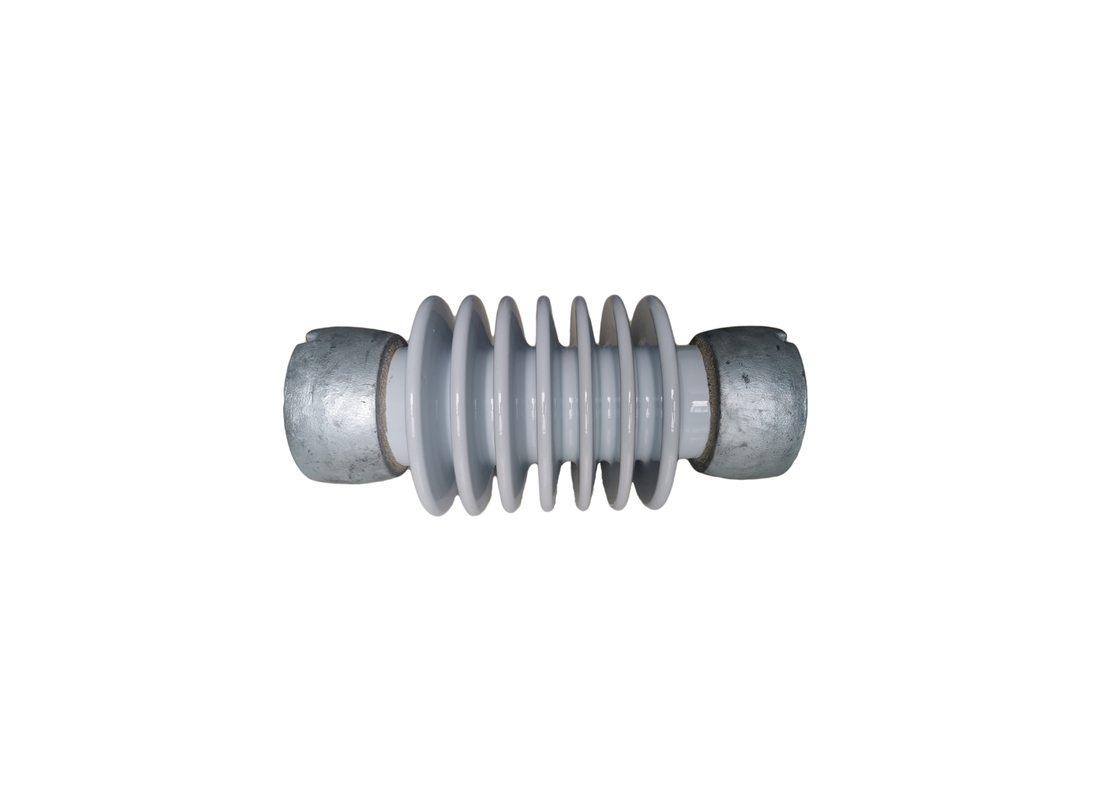

ANSI standard C29.9 Soild-Core Station post insulator light gray TR-205





We supply a wide range of porcelain station post insulators. For many years, these products have demonstrated reliable performance in various types of applications all over the world. Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation. Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.





ANSI CLASS Creepage distance (mm) Torsion strength (N.m) cantilever strength (kN) Lower frequency flashover voltage Critical impulse flashover voltage Impulse withstand voltage (kV) Weight (kgs)
Dry(kV) Wet(kV) Positive (kV) Negative (kV)
TR-205 394 791 8.9 85 55 125 200 110 7





1. Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body.

2. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.

3. Either chocolate brown or Munsell gray glaze is available. caps and flanges are ferrous, hot dip galvanized. thread holes are proper tapped.



Competitive advantages:


1.Efficient and fast responses are pre-requisite.

2.Maintain composure and patience in the face of difficult situations of clients.

3.Training of introduction of equipment are offered according to client's demand.

4.Build up long-term and stable partnerships, and constantly provide high-quality products.

5.Equipment are guaranteed up to one year and an overall after-sales service is provided.
