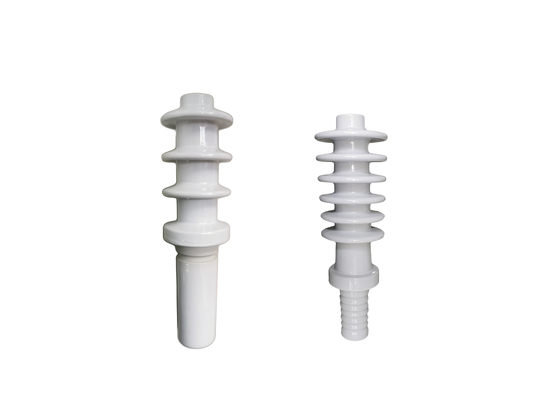

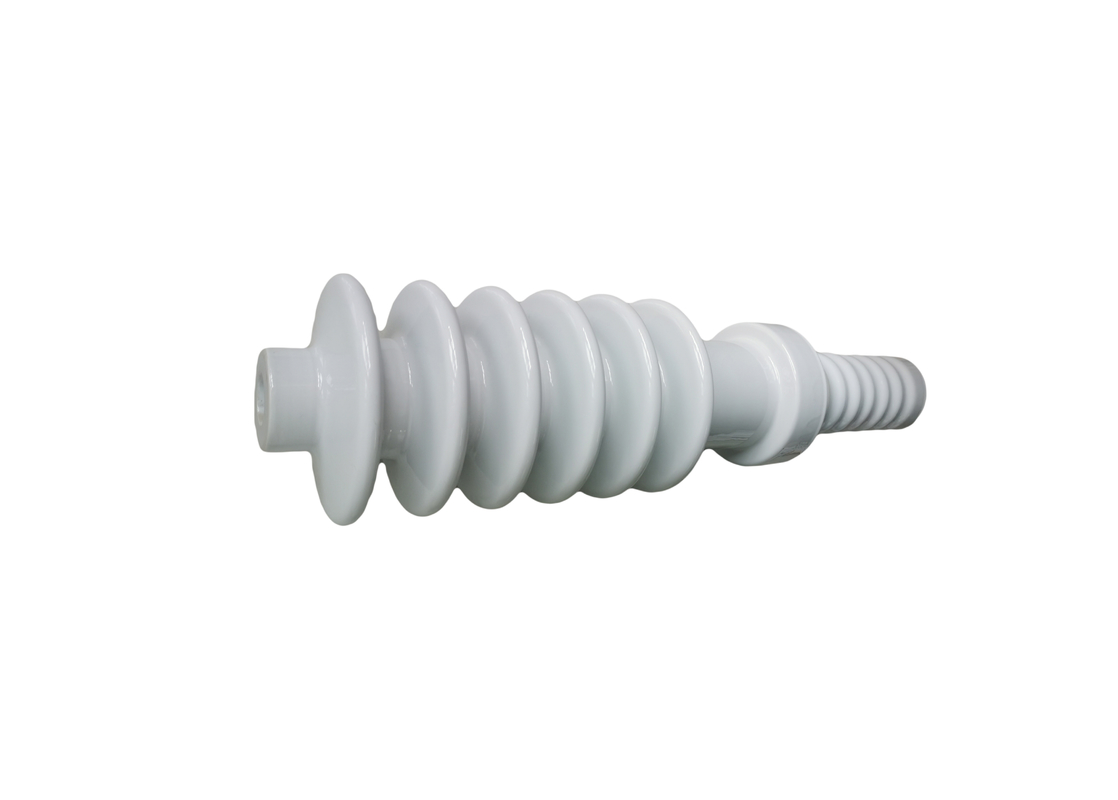

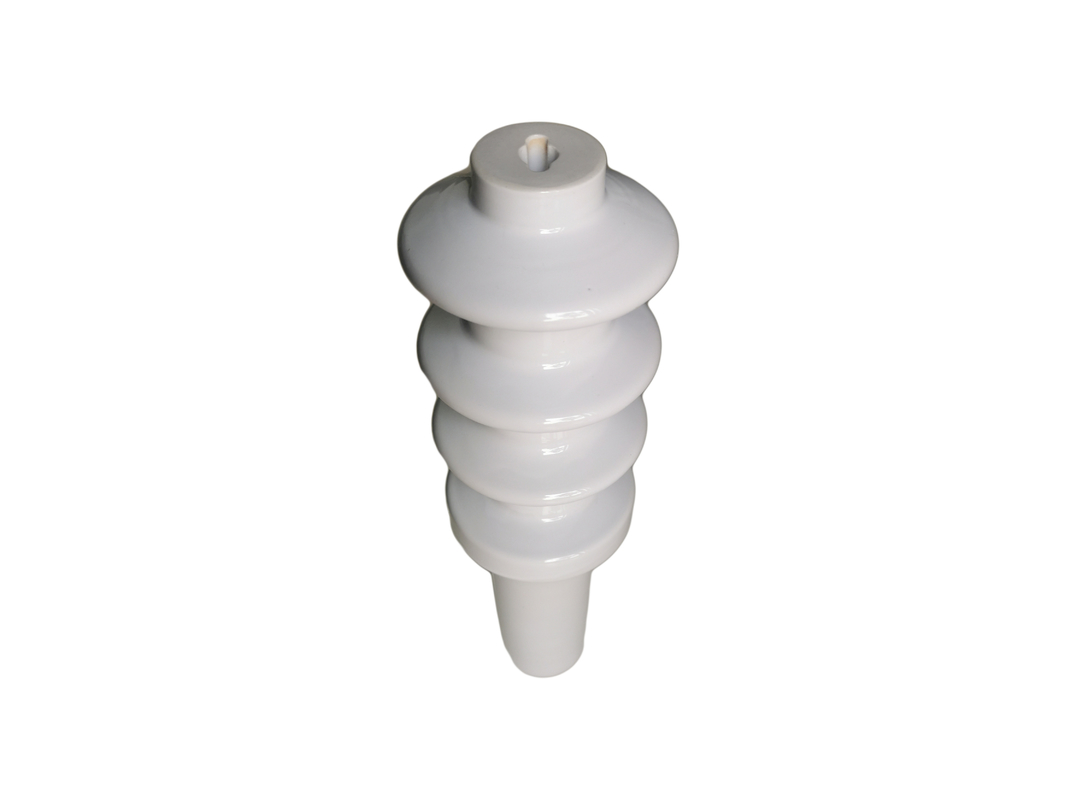

IEC Standard White 25kV Ceramic Power Line Insulators

IEC Standard White 25kV Ceramic Power Line Insulators

  • High Light

    25kV Ceramic Power Line Insulators


    White Ceramic Power Line Insulators


    25kV IEC Standard Insulators

  • Color
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
  • Sample
  • Oem
  • Size
    Customized Size
  • Pack
    Standard Export Packing
  • Place of Origin
  • Brand Name
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
  • Delivery Time
  • Payment Terms
    T/T, L/C
  • Supply Ability

IEC Standard White 25kV Ceramic Power Line Insulators


IEC standard 25kV Porcelain Power Line Insulators / white color / OEM available




IEC CLASS Height(mm) Shed dia.(mm) Flange dia. (mm) Inner hole dia.(mm)
25kV 515 160 102 20

Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current.





These insulator types are produced to withstand high mechanical forces such as inner pressure and cantilever. The design of these insulators is tailor-made to customer requirements. We are capable of producing special shapes by applying latest state of the art manufacturing tools and technology.



Competitive Advantage:


1. we offer 1 years up to 2 years quality guarantee for our product .

2. The insulator finish are smooth and shinning , it has very good self-cleaning performance and easy for maintenance.

3. OEM design are available .



Ordering instructions :


1. If the transformer bushing is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.

2. When the user has special requirements, the design can be carried out according to the user's requirements.
