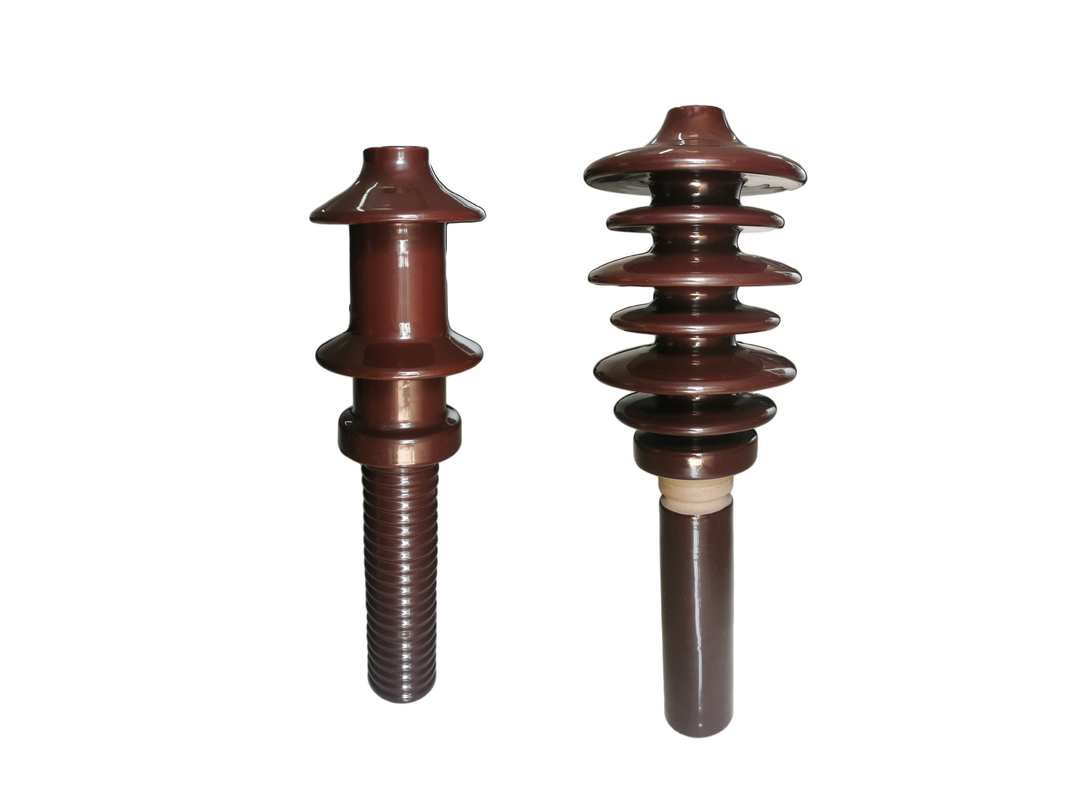

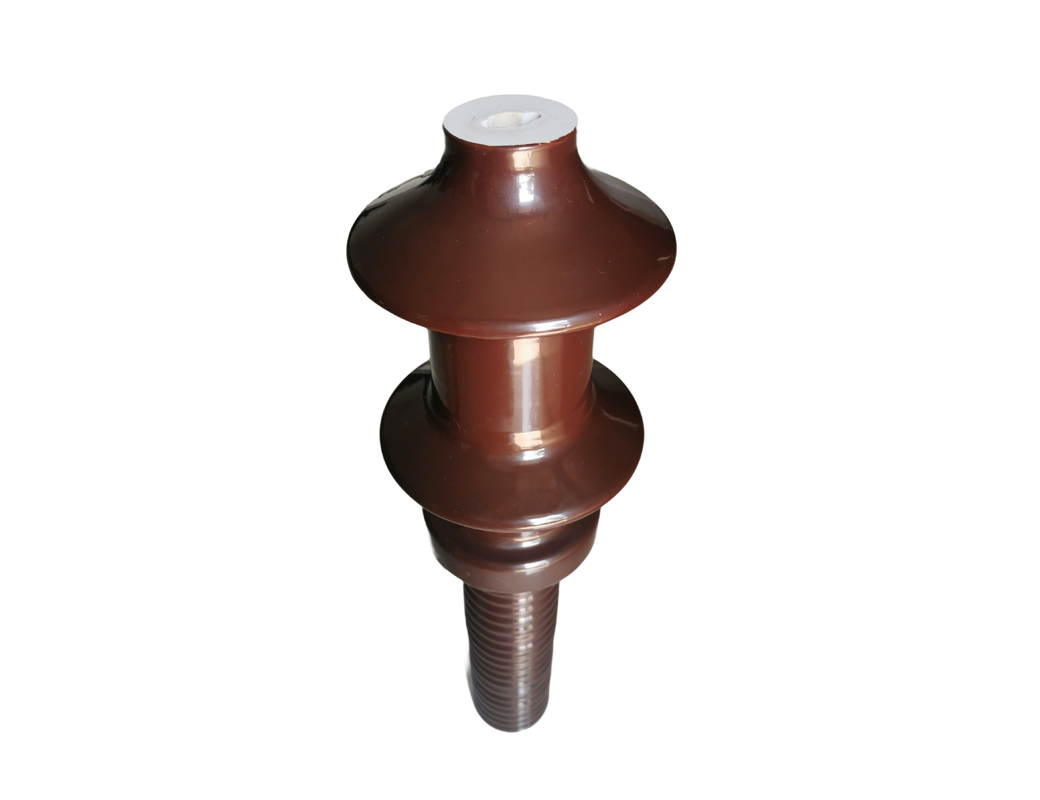

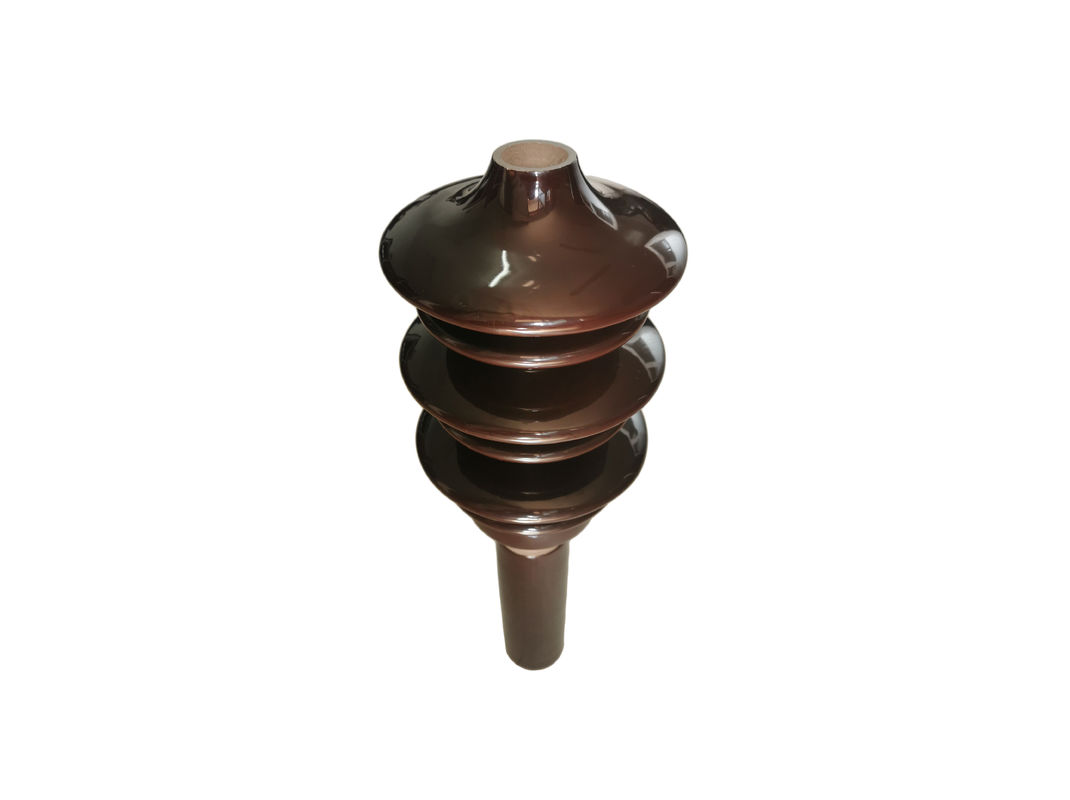

Customerized Brown 10NF250 Porcelain Power Line Insulators

Customerized Brown 10NF250 Porcelain Power Line Insulators

  • High Light

    10NF250 Porcelain Power Line Insulators

    ,

    Brown Porcelain Power Line Insulators

    ,

    10NF250 Porcelain Insulators

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    IEC
  • Sample
    Provided
  • Oem
    YES
  • Size
    Customized Size
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    12kV,10NF250
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

Customerized Brown 10NF250 Porcelain Power Line Insulators



Special customerized Porcelain Power Line Insulators in brown color





Description:



DIN 42531 Height(mm) Creepage distance (mm) Power frequency withstand voltage(kV) Lightning impluse withstand voltage(kV) Weight(kg)
10NF250 295 305 28 75 3.2





Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current





Applications:



The bushings are used for oil type distribution transformer.





Ordering instructions:



1.If the transformer bushing is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.

2.When the user has special requirements, the design can be carried out according to the user's requirements.





Competitive Advantage:



1.  Efficient and fast responses are pre-requisite.

2.  Maintain composure and patience in the face of difficult situations of clients.

3.  Training of introduction of equipments are offered according to client's demand.

4.  Build up long-term and stable partnerships, and constantly provide high-quality products.

5.  Equipments are guaranteed up to one year and an overall after-sales service is provided.
