DIN 42539 OEM 3KV Porcelain Power Line Insulators

DIN 42539 OEM 3KV Porcelain Power Line Insulators

  • High Light

    3KV Porcelain Power Line Insulators

    ,

    DIN 42539 Porcelain Power Line Insulators

    ,

    3KV Porcelain Insulators

  • Color
    Brown, White
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    DIN
  • Sample
    Provided
  • Oem
    YES
  • Size
    Customized Size
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    3KV/250A
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN PALLET
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

DIN 42539 OEM 3KV Porcelain Power Line Insulators

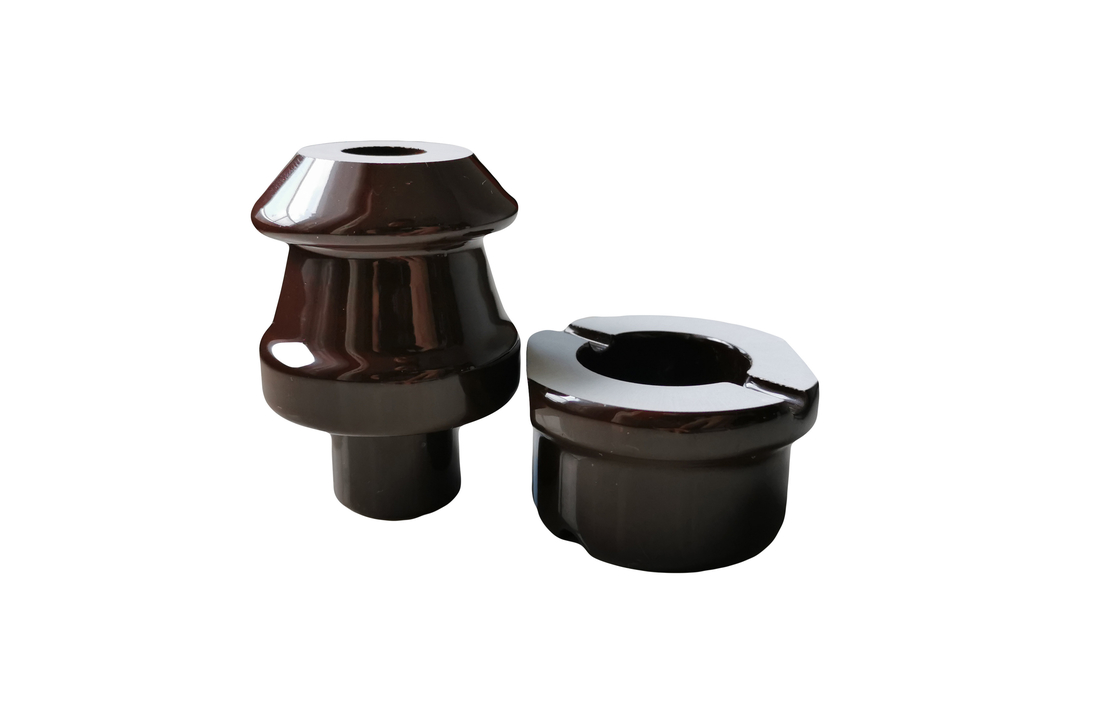

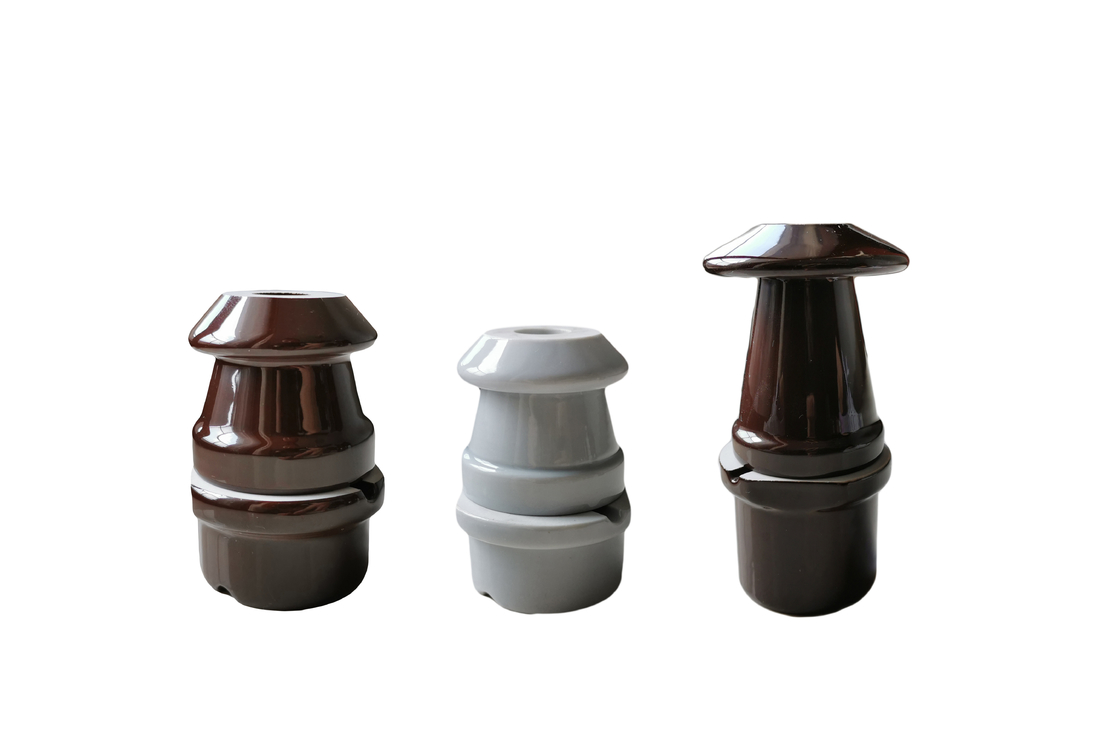

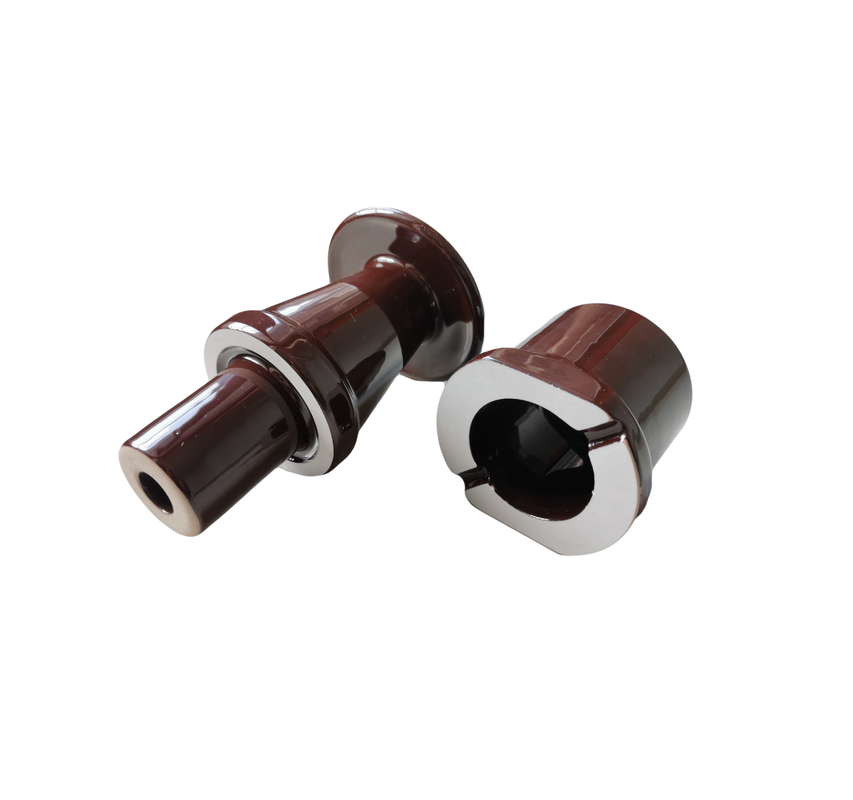

DIN 42539 3KV transformer porcelain bushing in brown color / OEM available




Description:



DIN 42539 Height(mm) Creepage distance (mm) Power frequency withstand voltage(kV) Lightning impluse withstand voltage(kV)
DT3/250A+B 135+55 120 30 90





Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current





Applications:



At present,the bushing are mainly configured with copper conductor or aluminum conductor,in which the aluminum conductor is cheaper but with equal performance.





Competitive Advantage:



1.  We offer 2-3 years quality guarantee.

2.  Bushings have excellent performance due to many years' exporting experience.

3.  OEM design available upon customer’s requirement or special technical specifications.





Ordering instructions:



1.  If the transformer bushing is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.

2.  When the user has special requirements, the design can be carried out according to the user's requirements.
