High Voltage ANSI 18kV Porcelain Power Line Insulators

High Voltage ANSI 18kV Porcelain Power Line Insulators

  • High Light

    18kV Porcelain Power Line Insulators

    ,

    ANSI Porcelain Power Line Insulators

    ,

    18kV Porcelain Bushing Insulator

  • Color
    Light Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Sample
    Provided
  • Oem
    YES
  • Size
    Customized Size
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    18kV
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN PALLET
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

High Voltage ANSI 18kV Porcelain Power Line Insulators

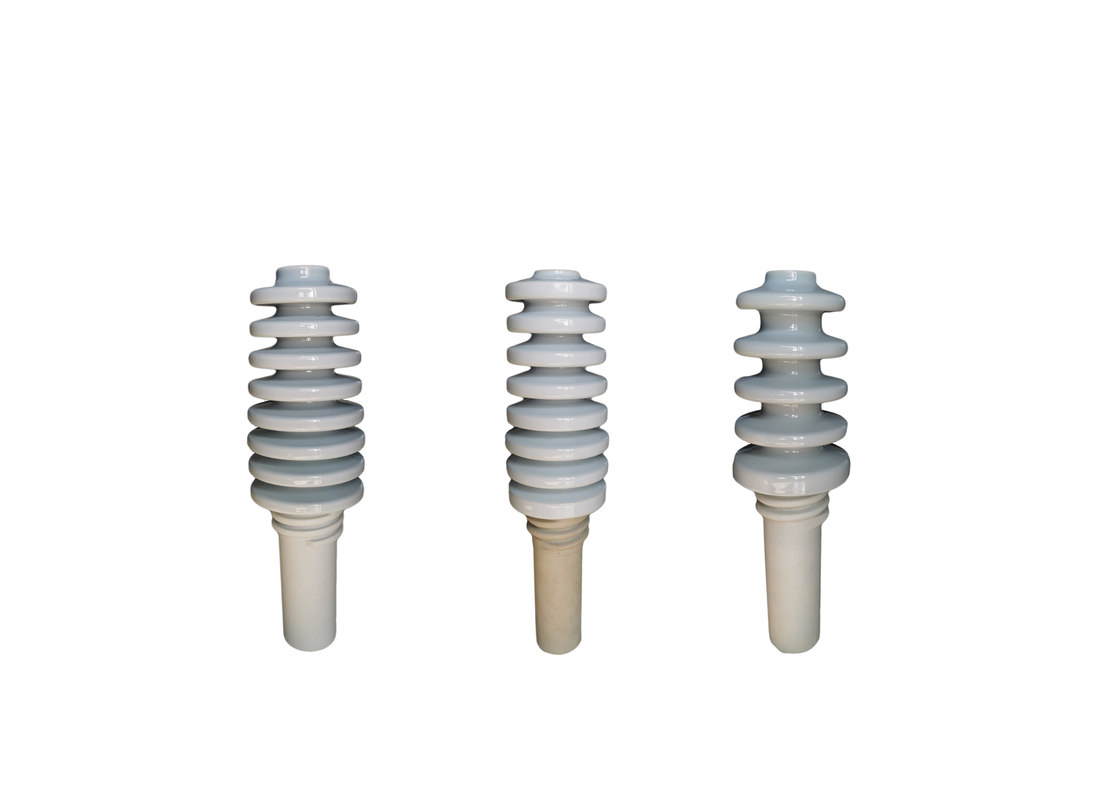

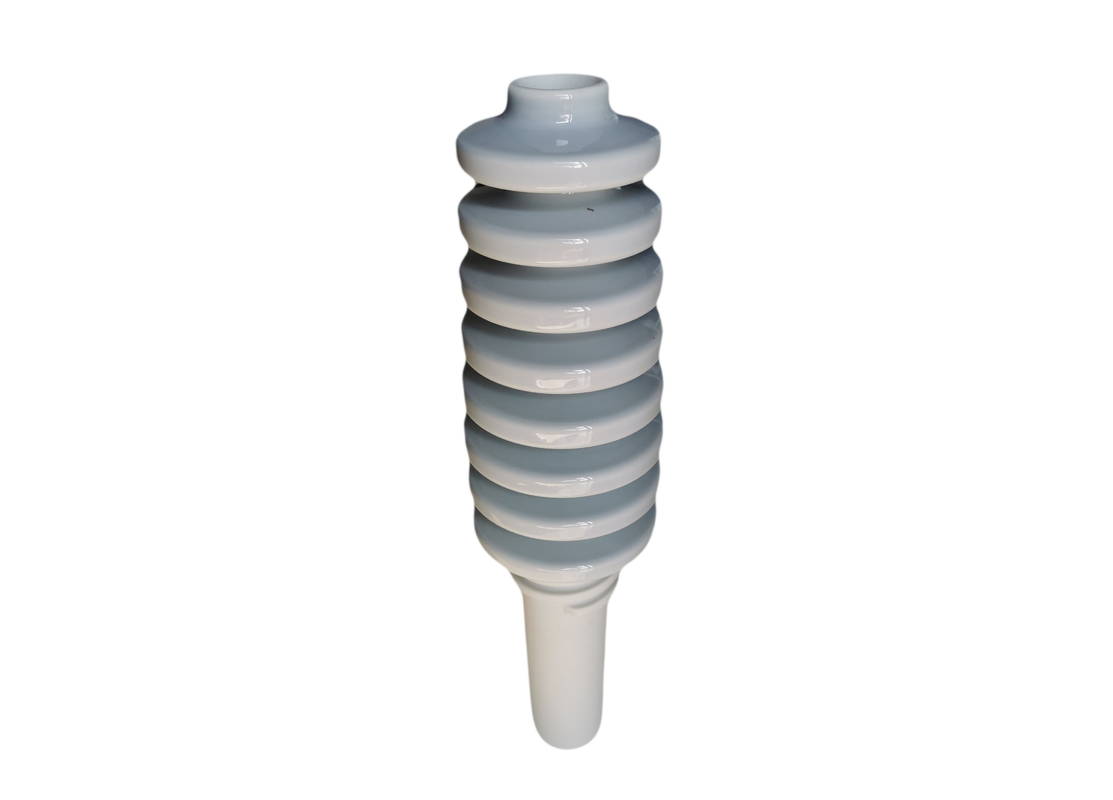

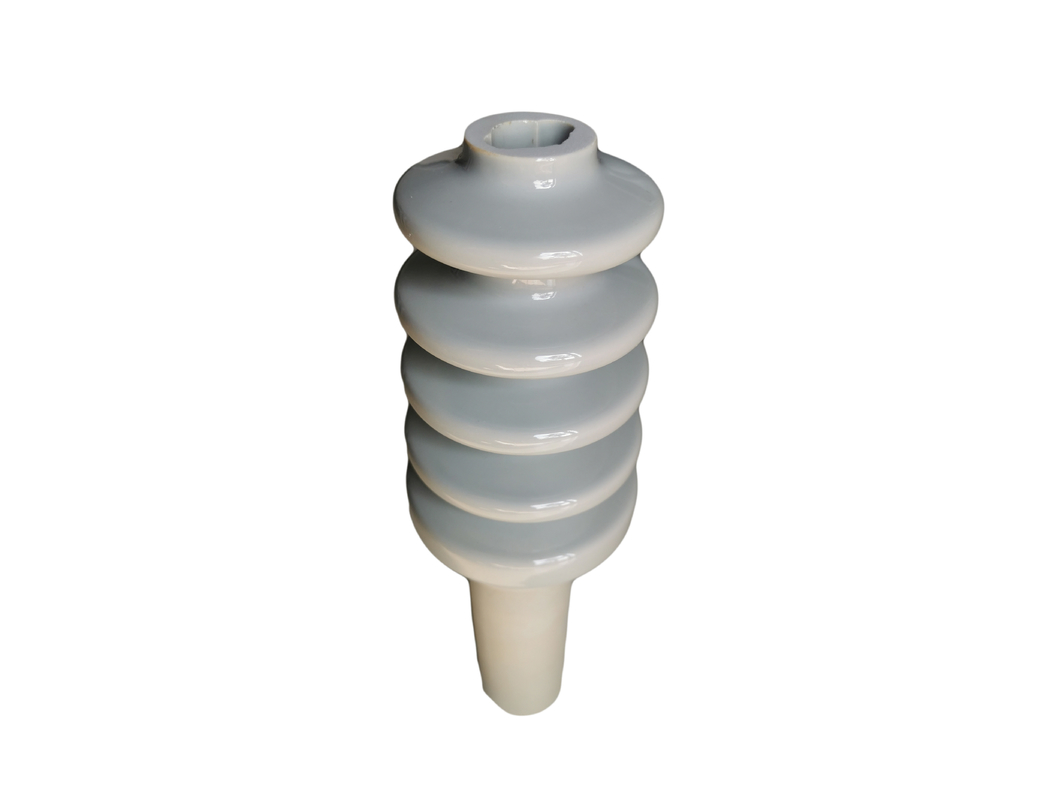

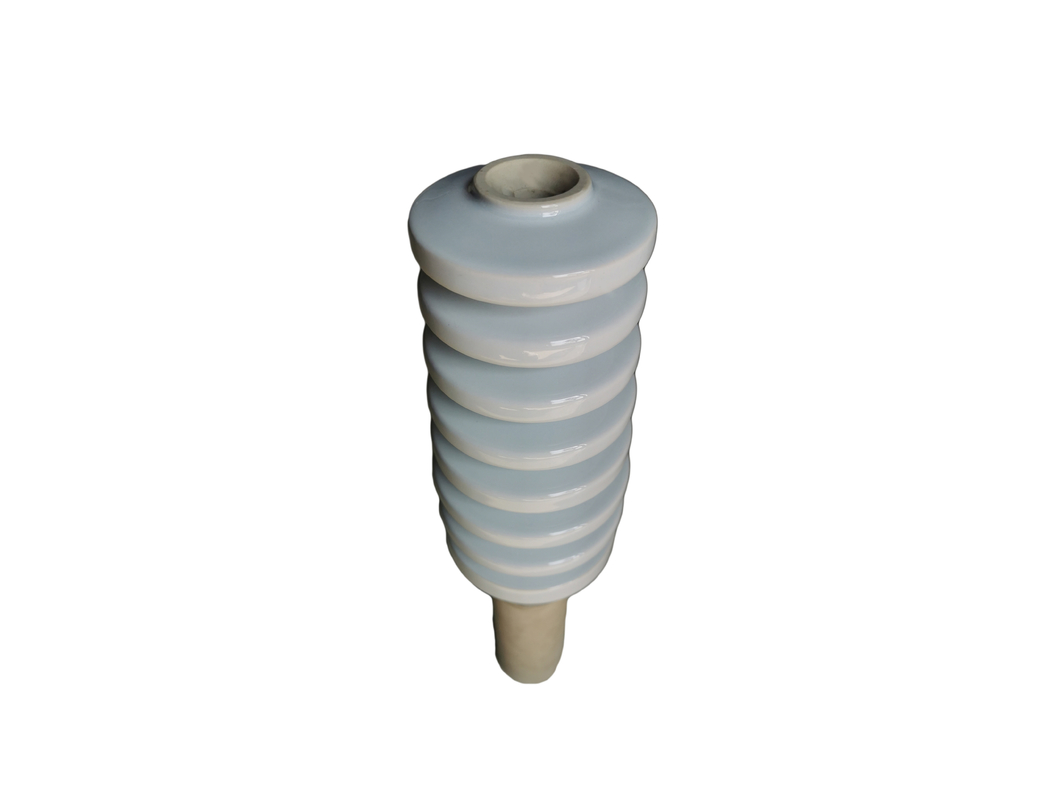

HV ceramic transformer porcelain bushing insulator in gray color / US market







Description:

ANSI CLASS Height(mm) Creepage distance (mm) Dry arcing distance (mm) BIL(kV) Torsion strength (N.m)
18kV 422 460 220 125 20.3

1. To ensure mechanical strength and heat stability we adopt high strength ceramic formula contenting higher aluminium oxide.

2. As per drawing and standard requirement,all post insulator will conduct visual dimension ,geometric tolerance ,ultrasonic test and four-way bending test one by one.

3. High-voltage insulators made by power posses beautiful appearance ,pure glaze,reasonable structure,good resistance to heat and cold, stronger for low temperature cold resistance,good earthquake resistance,high mechanical strength ,good resistance to soiling,low radio interference,safe and reliable operation.



Applications:



The bushings are used for oil type distribution transformer.





Competitive advantages:



1.Efficient and fast responses are pre-requisite.

2.Maintain composure and patience in the face of difficult situations of clients.

3.Training of introduction of equipment are offered according to client's demand.

4.Build up long-term and stable partnerships, and constantly provide high-quality products.

5.Equipment are guaranteed up to one year and an overall after-sales service is provided.
