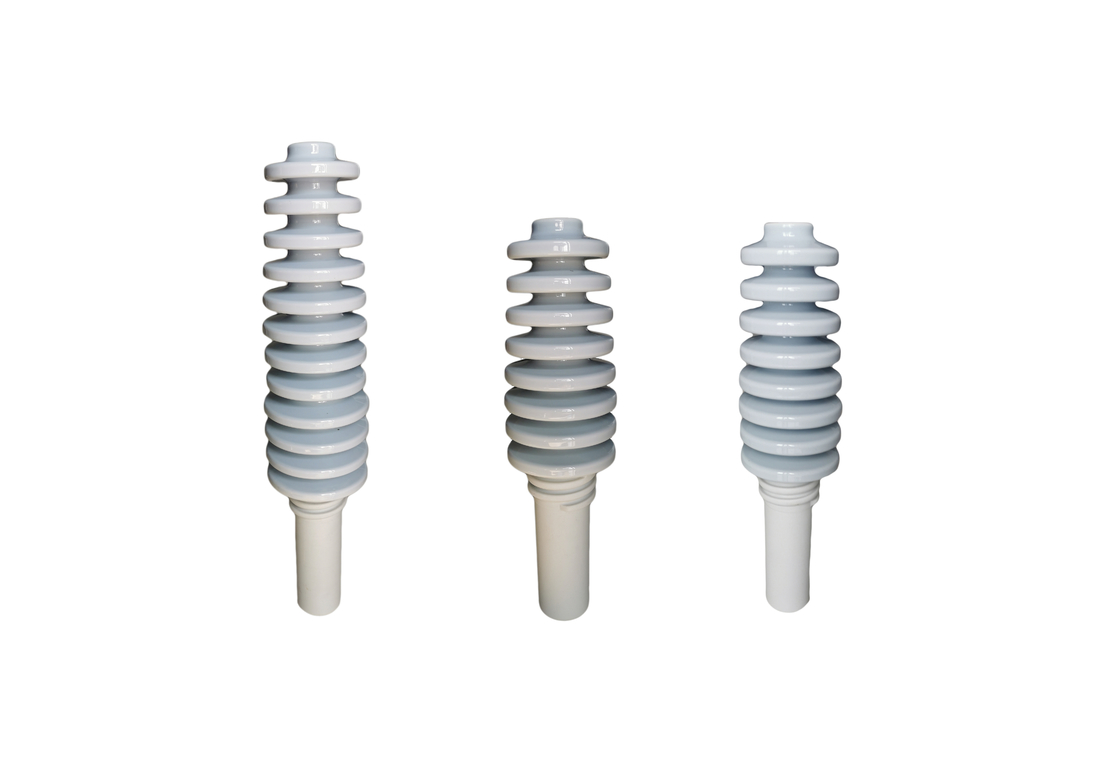

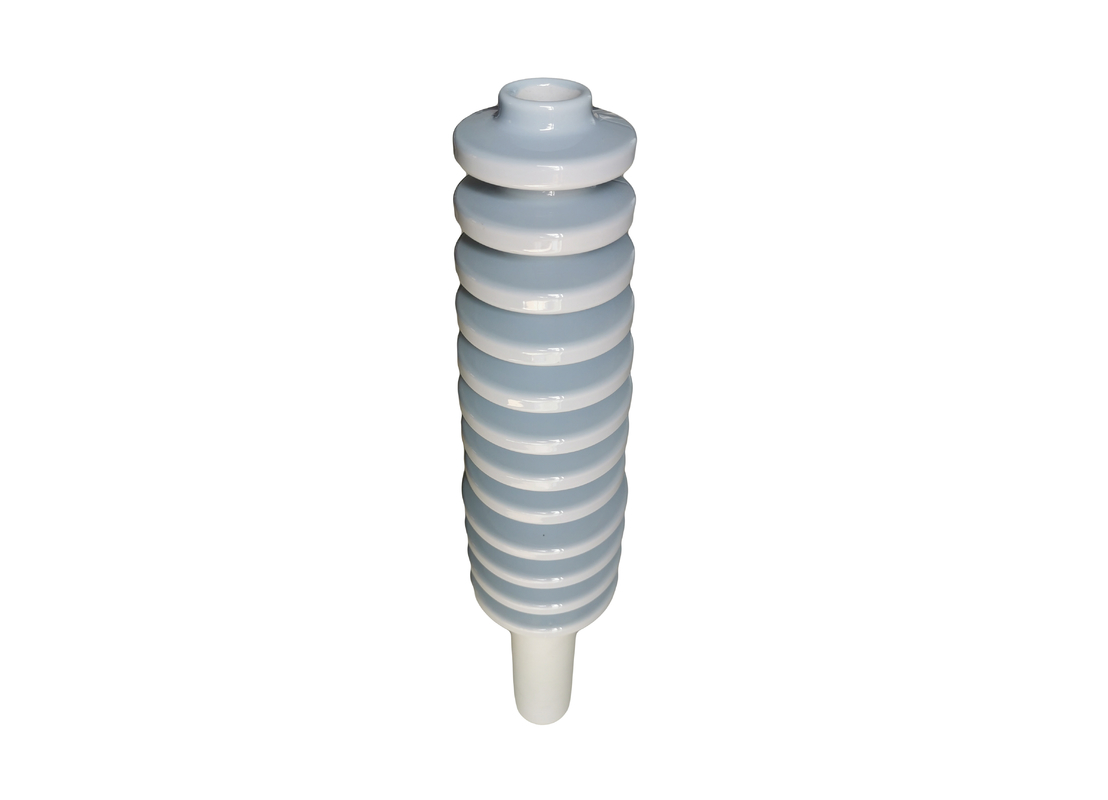

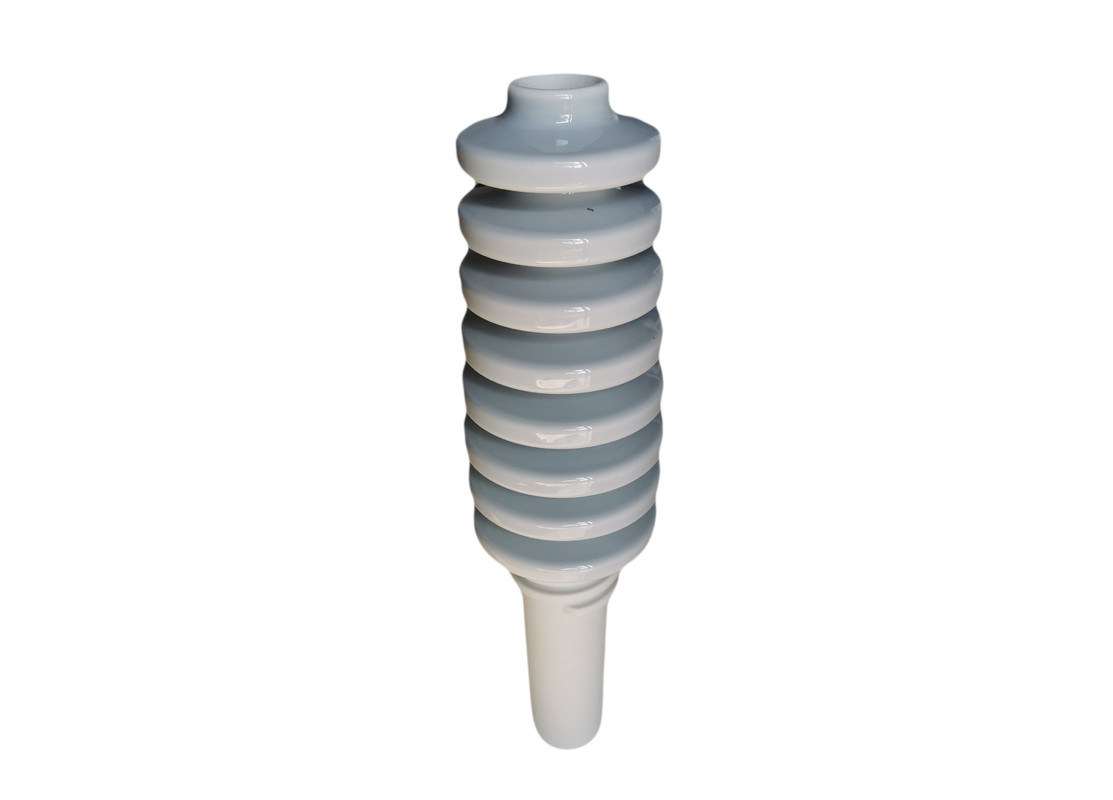

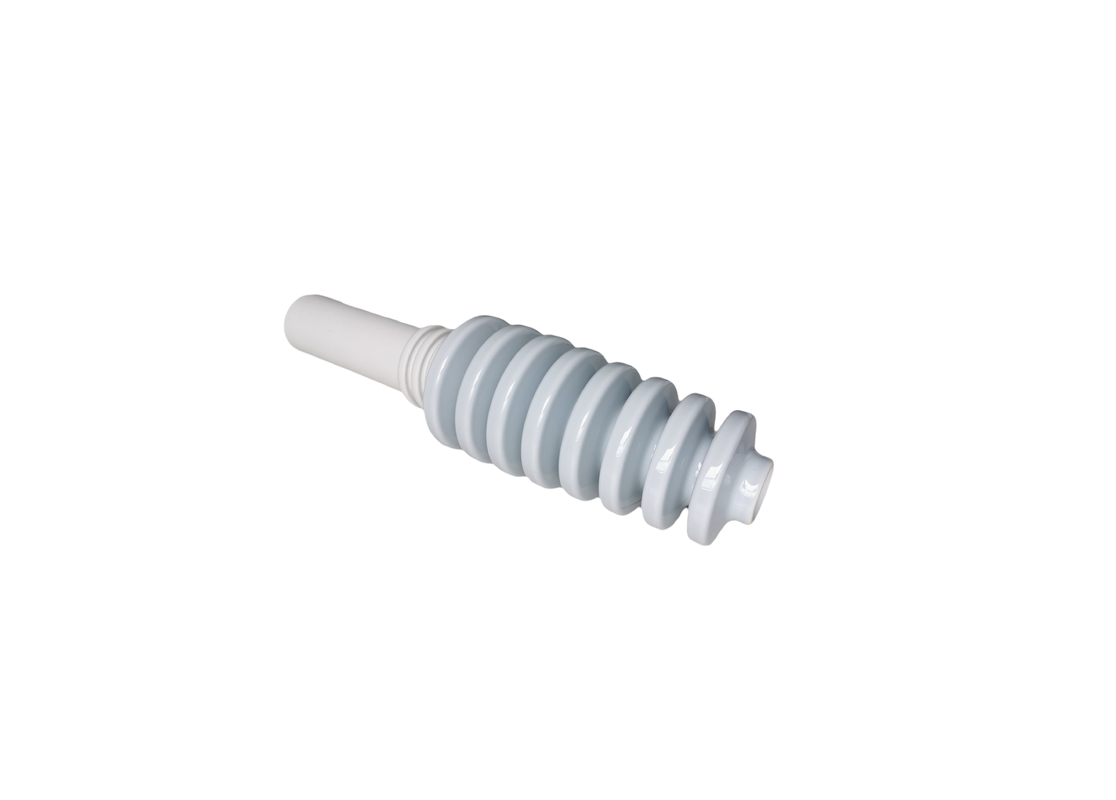

ANSI Standard HV screwed Porcelain Power Line Insulators / bright light gray
Description:
| ANSI CLASS | Height(mm) | Creepage distance (mm) | Dry arcing distance (mm) | BIL(kV) | Torsion strength (N.m) |
| 34.5kV | 740 | 1055 | 467 | 200 | 20.3 |
The bushing are internally connected with current transformer oil,effectively solving the problem of oil leakage,poor heat dissipation,high temperature rise,big volume and expensive cost which occurred in traditionally designed OIP bushing,Such creative design mentioned above enormously reduces the bushings of temperature rise,partial discharge,dielectric loss and maintenance effort,moreover supply characteristics as beautiful appearance,convenient installation,reliable performance.
Applications:
The bushings are used for oil type distribution transformer.
Competitive Advantages:
1. We offer 2-3 years quality guarantee.
2. Bushings have excellent performance due to many years' exporting experience.
3. OEM design available upon customer’s requirement or special technical specifications.
Ordering instructions:
1. If the transformer bushing is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.
2. When the user has special requirements, the design can be carried out according to the user's requirements.
Our products are sold all over the world, you can rest assured.
