Light Gray ANSI 25KV Porcelain Power Line Insulators

Light Gray ANSI 25KV Porcelain Power Line Insulators

  • High Light

    25KV Porcelain Power Line Insulators

    ,

    Height 451mm Porcelain Power Line Insulators

    ,

    25KV Light Gray Porcelain Insulators

  • Color
    Light Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Sample
    Provided
  • Oem
    YES
  • Size
    Customized Size
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    25kV
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

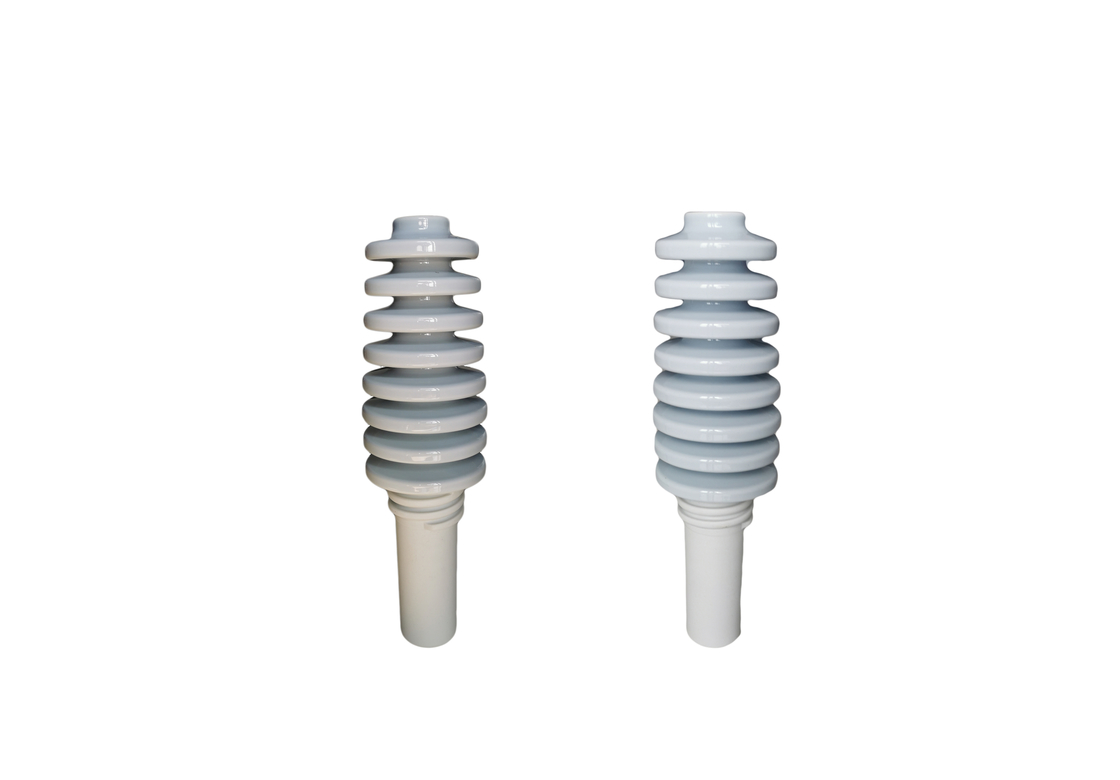

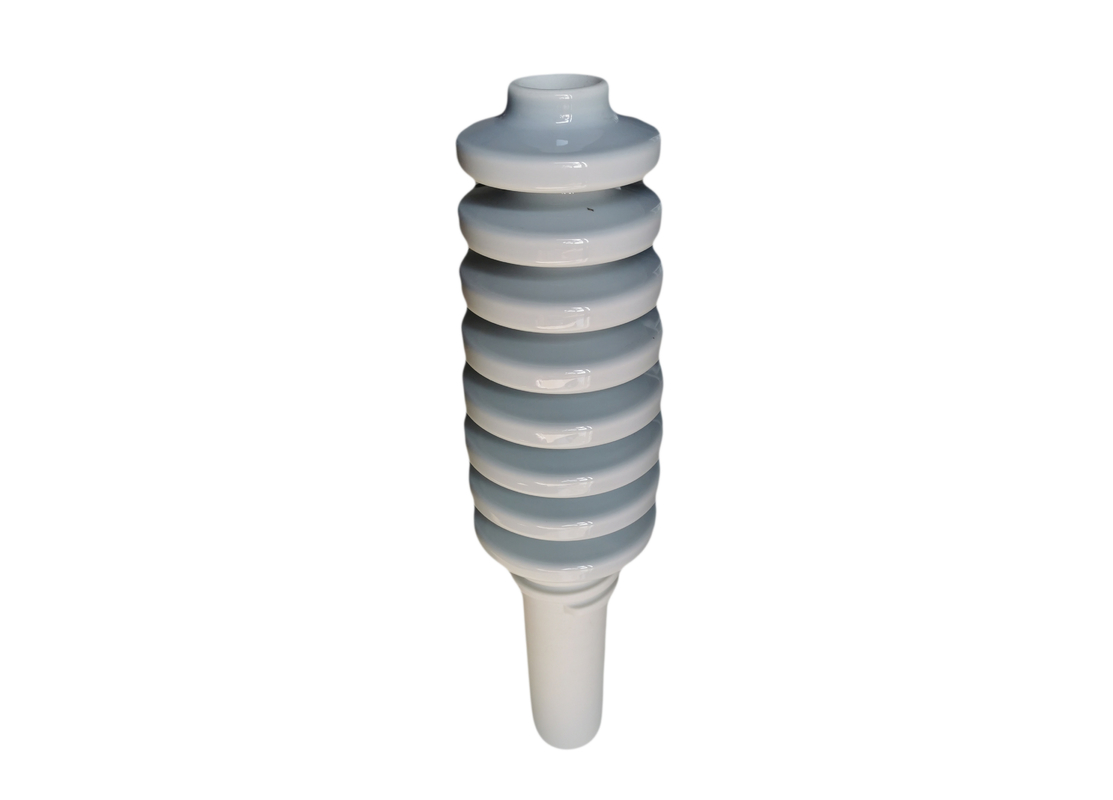

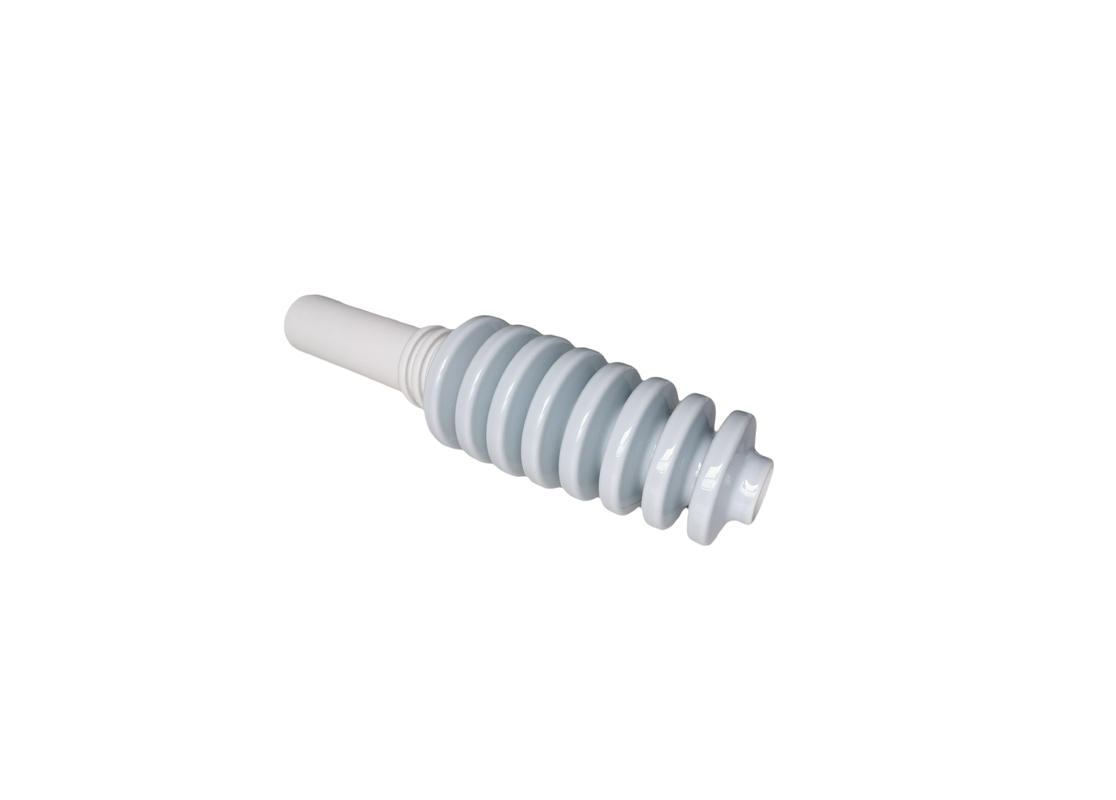

Light Gray ANSI 25KV Porcelain Power Line Insulators



25kV porcelain power line insulators for US market in light gray color





Description:
ANSI CLASS Height(mm) Creepage distance (mm) Dry arcing distance (mm) BIL(kV) Torsion strength (N.m)
25kV 451 580 270 150 20.3
We offers a wide range of porcelain station post insulators. For decades, these products have demonstrated reliable performance in various types of applications all over the world. Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation. Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.



Applications:



Normally the bushings will assembled with related hardwares and equiped in power transformer and distribution transformers etc.





Competitive Advantages:


1. Efficient and fast responses are pre-requisite.

2. Maintain composure and patience in the face of difficult situations of clients.

3. Training of introduction of equipments are offered according to client's demand.

4. Build up long-term and stable partnerships, and constantly provide high-quality products.

5. Equipments are guaranteed up to one year and an overall after-sales service is provided.
