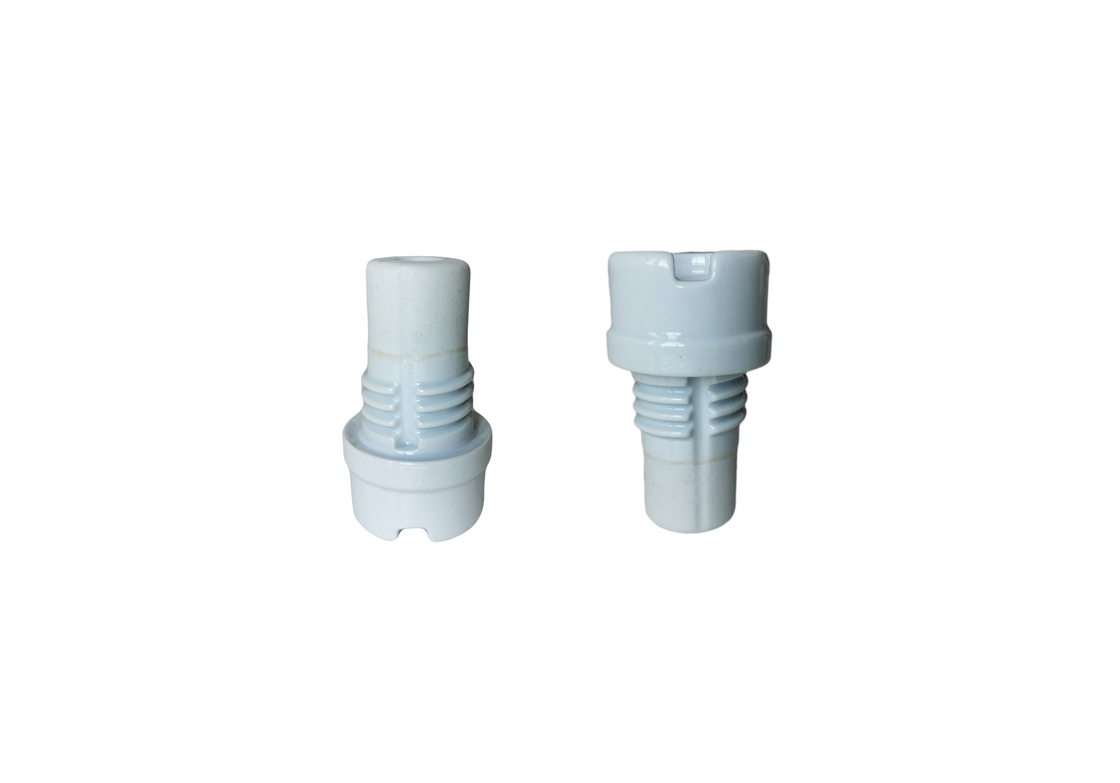

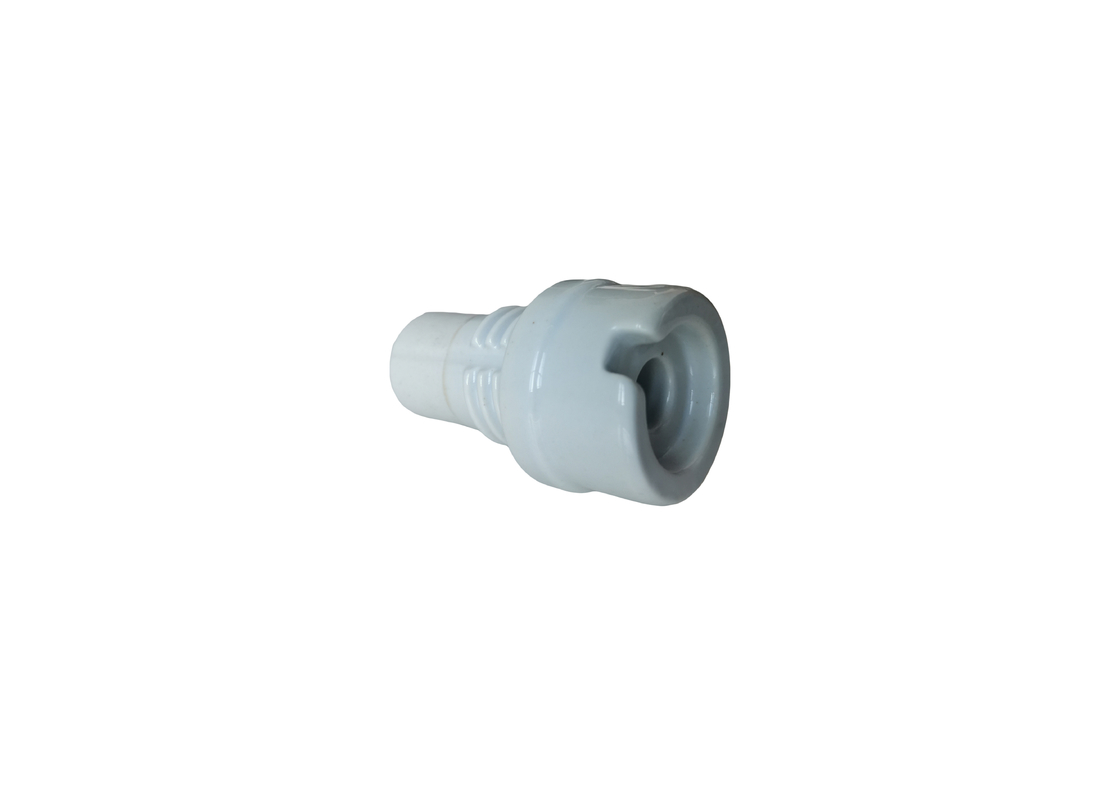

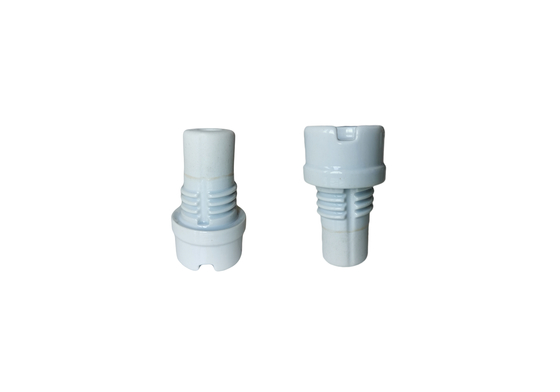

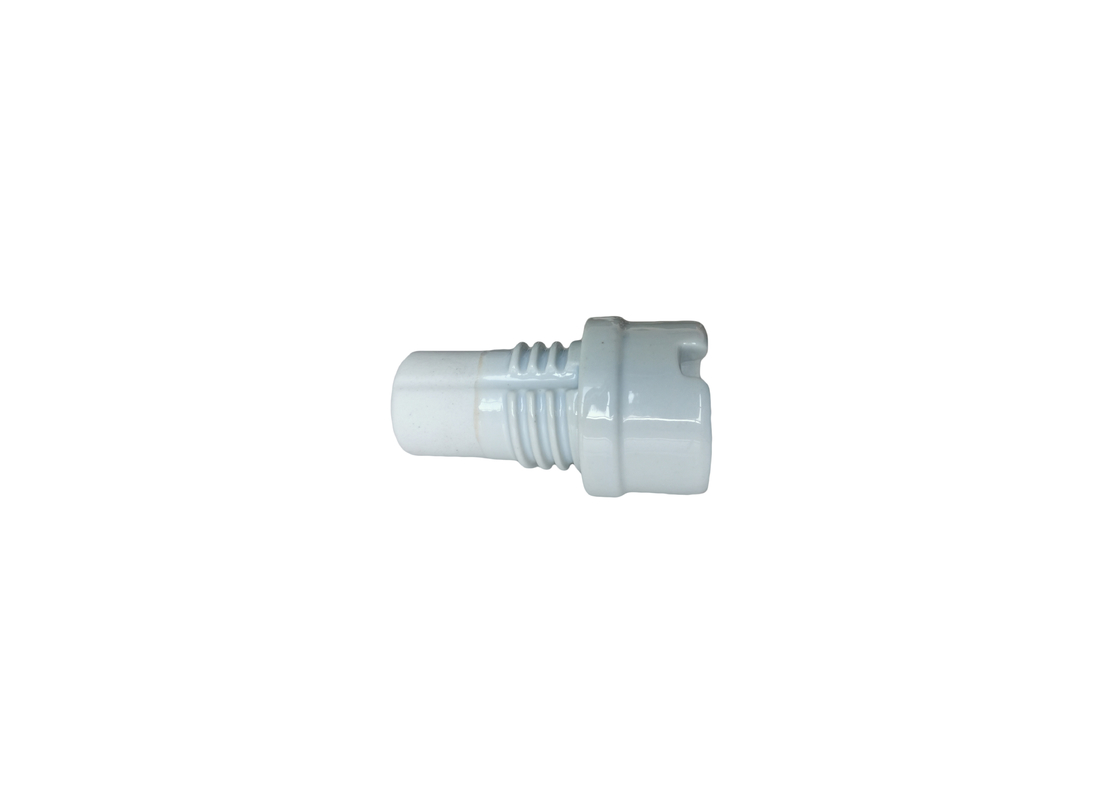

ANSI standard 1.2kV/250A Porcelain Power Line Insulators for US market
| ANSI CLASS | Height(mm) | Creepage distance (mm) | Dry arcing distance (mm) | BIL(kV) | Torsion strength (N.m) |
| 1.2kV | 81 | 28 | 25 | 30 | 24.4 |
Applications:
Normally the bushing will assembled with related hardwares and equiped in power transformer and distribution transformers etc.
We offer 2-3 years quality guarantee.
Bushings have excellent performance due to many years' exporting experience.
OEM design available upon customer’s requirement or special technical specifications.
Ordering instructions:
1. If the transformer bushing is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.
2. When the user has special requirements, the design can be carried out according to the user's requirements.
Our products are sold all over the world, you can rest assured.
