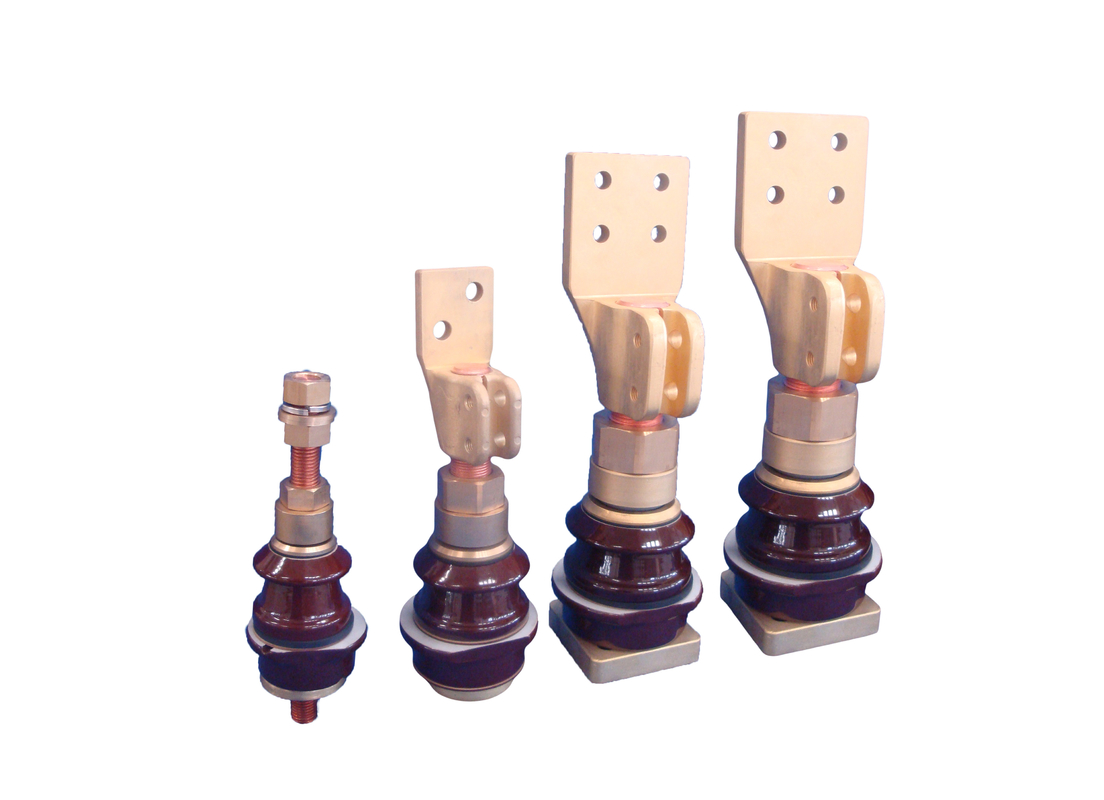

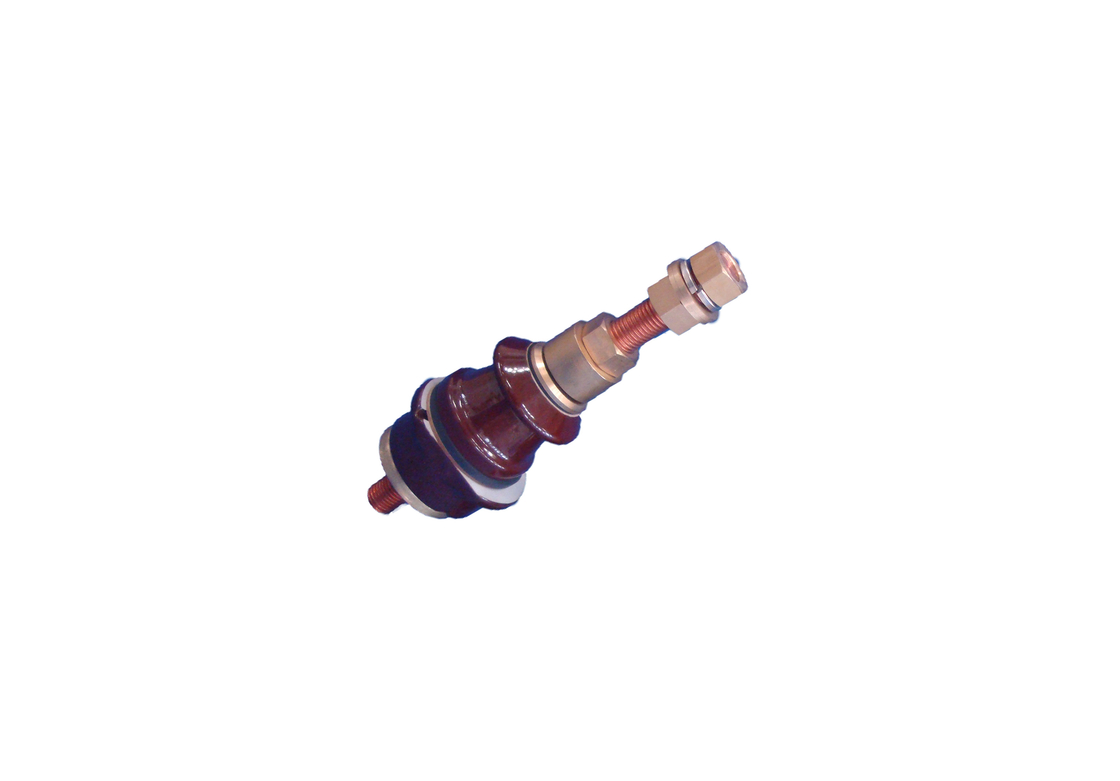

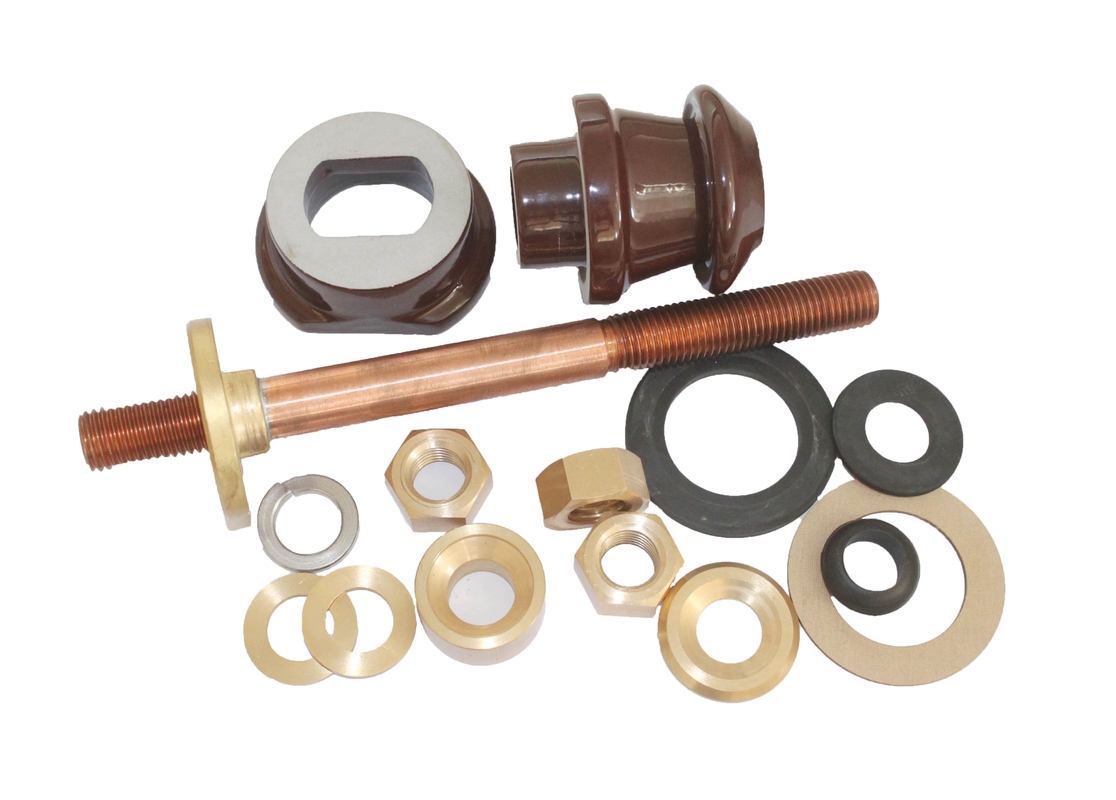

LV DT1-250A Transformer Porcelain Bushing Assembly with copper busbar
Description:
| DIN 42530 | Height(mm) | Creepage distance (mm) | Power frequency withstand voltage(kV) | Lightning impluse withstand voltage(kV) | Weight(kg) |
| DT1/250A+B | 70+30 | 55 | 10 | 30 | 0.18+0.1 |
Transformer bushing insulators are applied as a structure, carrying on conductor through a partition such as transformer tank and insulating it, incorporating the means of attached flange to the partition for medium voltage level.
Specifications:
1. Creepage distance: 55mm
2. Power frequency withstand voltage: 10kV
3. Lightning impulse withstand voltage: 30kV
4. Standard: DIN 42530
Our bushing is applied for oil-immersed type transformer, enjoying good reputation among clients from different countries.
Applications:
The transformer bushing is to lead the high and low voltage leads inside the transformer to the outside of the oil tank, not only as the lead to ground insulation, but also plays a role of fixing the lead.
Competitive Advantages:
1.Efficient and fast responses are pre-requisite.
2.Maintain composure and patience in the face of difficult situations of clients.
3.Training of introduction of equipment are offered according to client's demand.
4.Build up long-term and stable partnerships, and constantly provide high-quality products.
5.Equipment are guaranteed up to one year and an overall after-sales service is provided.
If you want to buy transformer bushings with accessaries, please email or phone us at any time.
Our products are sold all over the world, you can rest assured.
