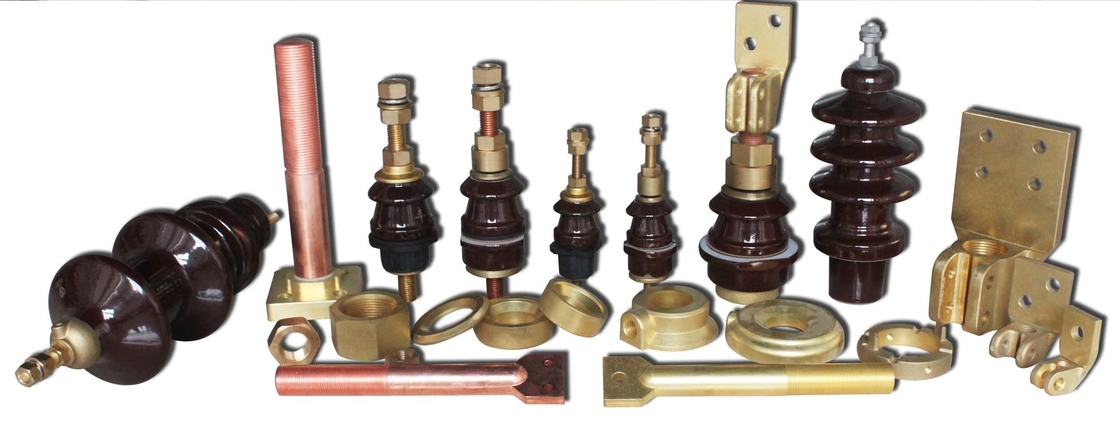

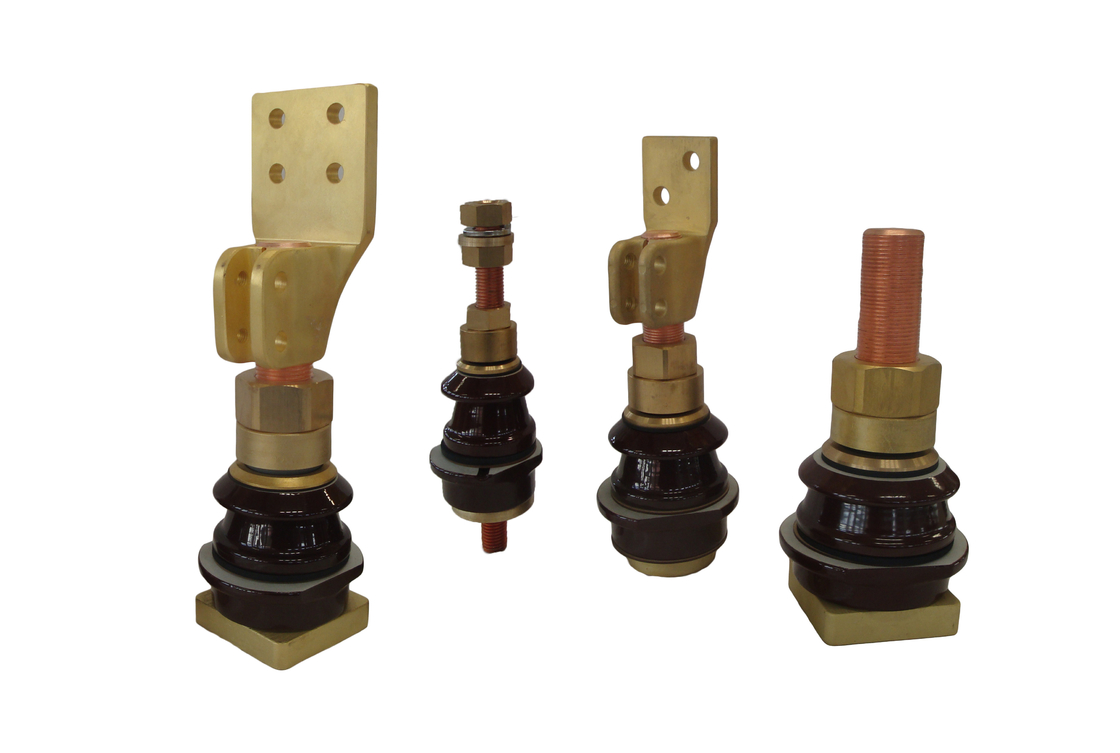

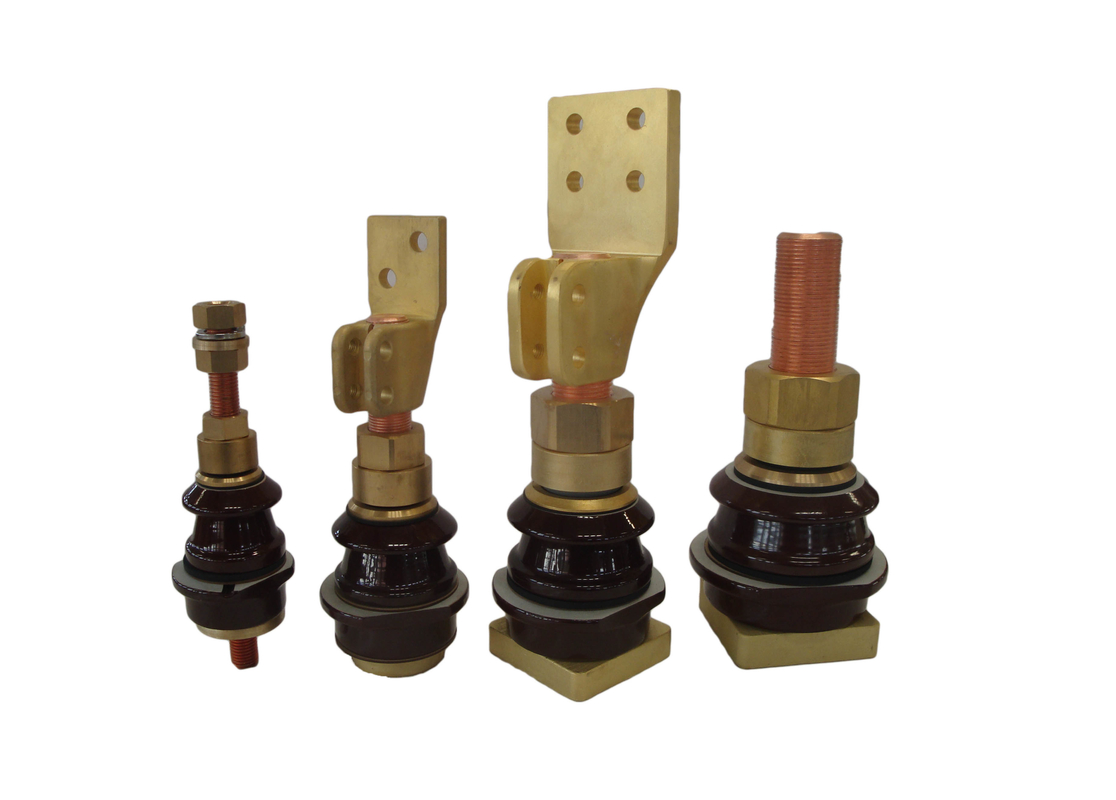

DIN 42530 oil type transformer LV bushing assembly/ bolt / flag / busbar
Descriptions:
A combined insulator consists of the ceramic body and metal fittings which are cemented together with binder that can withstand high temperature. The cementing faces on a ceramic insulator body are knurling or sanding treated, and a high temperature withstanding elastic layer is interposed between the ceramic body end and metal fittings, and a buffer is also applied between them to prevent from loosening.
Specifications:
|
Type. |
Standard |
Main Dimensions mm |
Weight |
||||||||||||
| No | H | h21 | h2 | h3 | r1 | D | d1 | d2 | d3 | d4 | b | m | n | ( kg ) | |
| A1250 | DIN42530 | 70 | 45 | 13 | 12 | 2.5 | 50 | 32 | 34 | 27 | 14 | 0.18 | |||
| A1-630 | DIN42530 | 80 | 55 | 16 | 12 | 3 | 70 | 47 | 49 | 43 | 22 | 0.45 | |||
| A11000 | DIN42530 | 85 | 55 | 16 | 12 | 3 | 90 | 65 | 67 | 53 | 32 | 0.64 | |||
| A12000 | DIN42530 | 85 | 55 | 16 | 12 | 3 | 104 | 80 | 82 | 66 | 44 | 0.90 | |||
| A13150 | DIN42530 | 85 | 55 | 16 | 12 | 3 | 125 | 100 | 100 | 86 | 50 | 1.40 | |||
| B 250 | DIN42530 | 30 | 20 | 8 | 2 | 60 | 50 | 30 | 26 | 20 | 0.10 | ||||
| B-630 | DIN42530 | 30 | 20 | 8 | 3 | 85 | 70 | 46 | 41 | 28 | 0.20 | ||||
| B-1000 | DIN42530 | 35 | 25 | 10 | 4 | 110 | 90 | 57 | 46 | 37 | 0.40 | ||||
| B-2000 | DIN42530 | 35 | 25 | 10 | 4 | 125 | 104 | 70 | 64 | 51 | 0.45 | ||||
| B-3150 | DIN42530 | 35 | 25 | 12 | 4 | 150 | 125 | 90 | 80 | 61 | 0.55 | ||||
Features:
Transformer bushing insulators are applied as a structure, carrying on conductor through a partition such as transformer tank and insulating it, incorporating the means of attached flange to the partition for medium voltage level.
