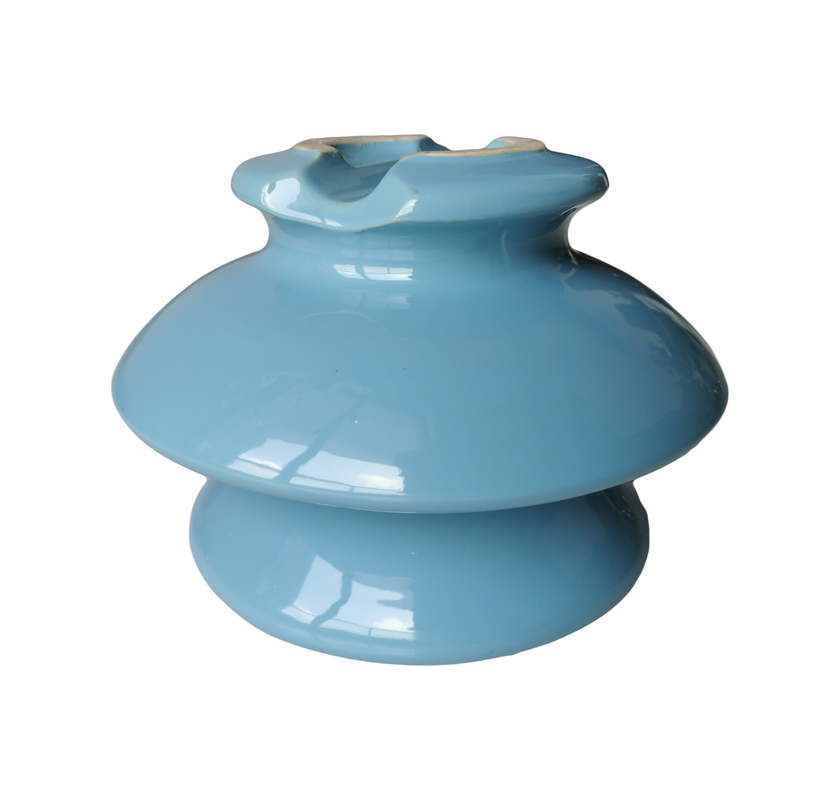

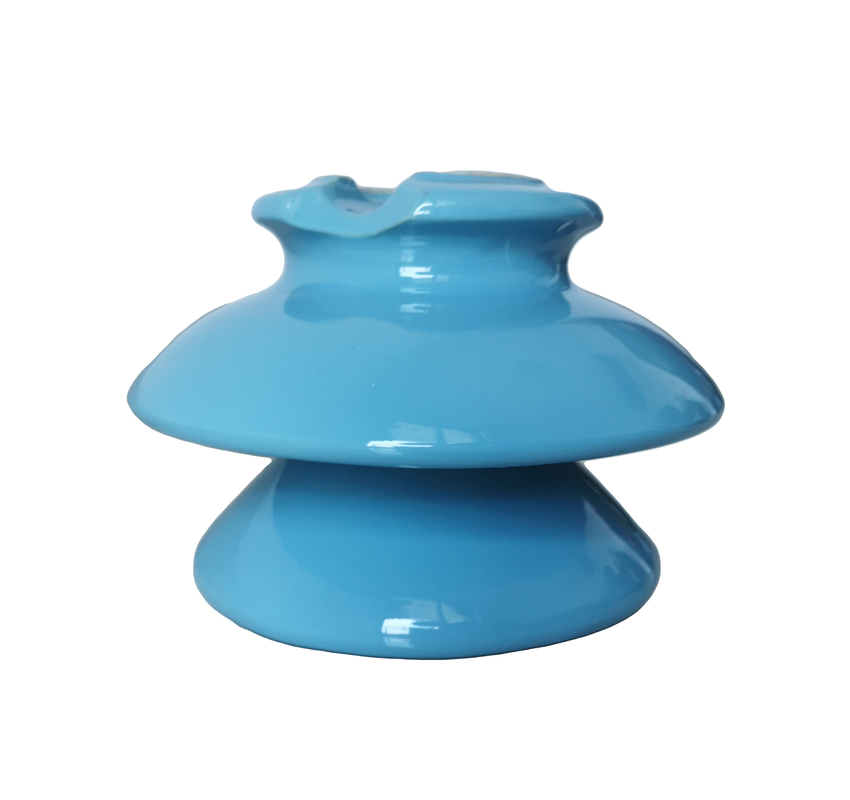

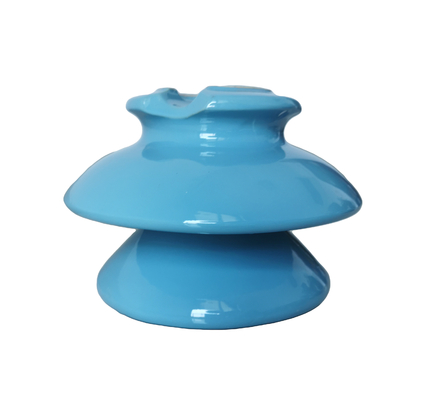

High voltage distribution lines Pin type porcelain insulator in blue color
Descriptions:
ANSI CLASS | Creepage distance (mm) | Dry arcing distance (mm) | Cantilever strength(kN) | Low frequency punture voltage(kV) | Low frequency flashover voltage(kV) | Weight (kg) | |
Dry(kV) | Wet(kV) | ||||||
56-4 | 686 | 286 | 13 | 185 | 140 | 95 | 12.5 |
Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation. Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.
Features:
1.good service and quality
2.competitive price
3.large production capacity
4.delivery on time
5. accept customers' design
Competitive Advantages:
we offer 1 years up to 2 years quality guarantee for our product .
The insulator finish are smooth and shinning , it has very good self-cleaning performance and easy for maintenance.
OEM design are available .
We can supply insulators according to IEC standards, ANSI standards,BS standards or customer specifications .
