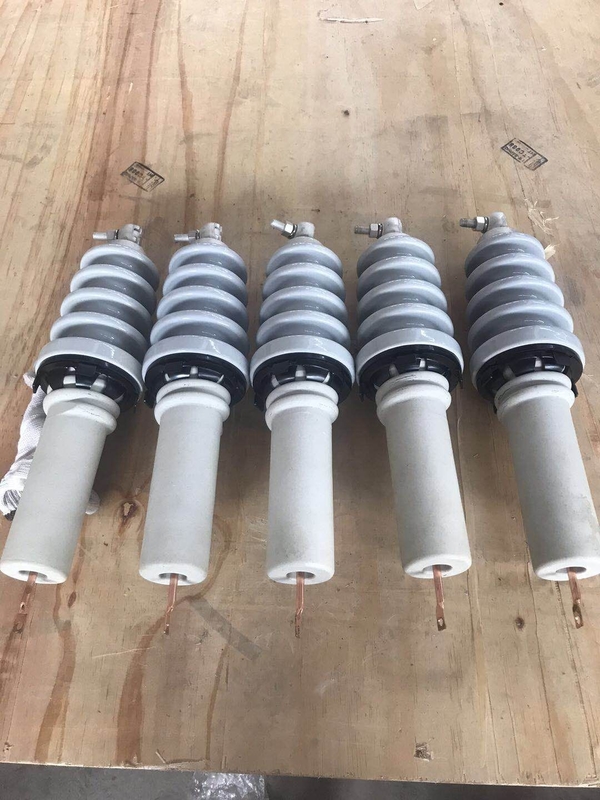

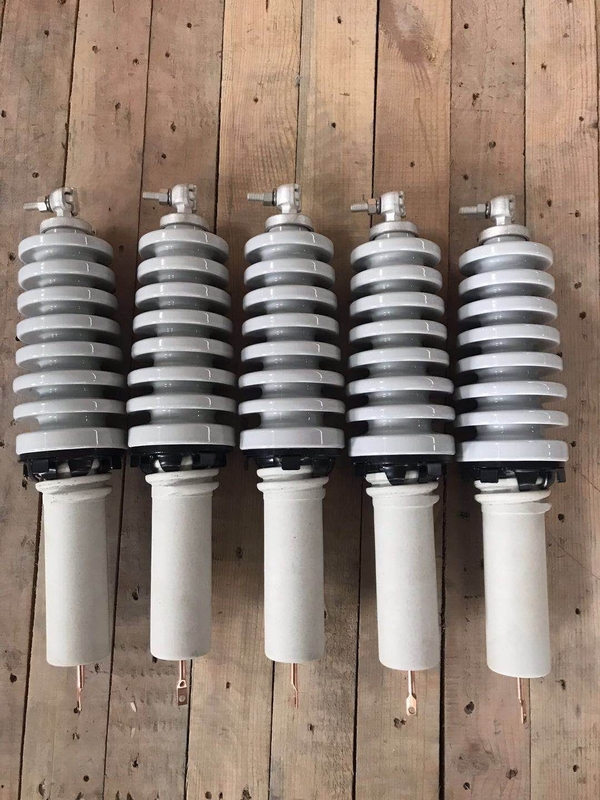

ANSI standard 18kV threaded transformer Low voltage bushing assembly
Descriptions:
The High Voltage Threaded Bushings are manufactured for voltages from 15kV to 34.5 kV. These bushings are supplied with the respective porcelain, NBR gaskets, conductor, zinc-plated brass cap and blued steel spin grip nut.
Specifications:
1. Material: wet process electrical porcelain
2. Glaze color: light gray
3. Creepage distance: 450mm
Dry arcing distance: 200mm
4. Impulse withstand voltage: 95KV
5. Low frequency flashover voltage:
Dry: 75KV, Wet: 60KV
6. Mechanical torsion strength: 20.3N.m
7. Standard: ANSI
Competitive Advantages:
1.good service and quality
2.competitive price
3.large production capacity
4.delivery on time
5.accept customers' design
If you want to buy transformer bushings with accessaries, please email or phone us at any time.
Our products are sold all over the world, you can rest assured.
