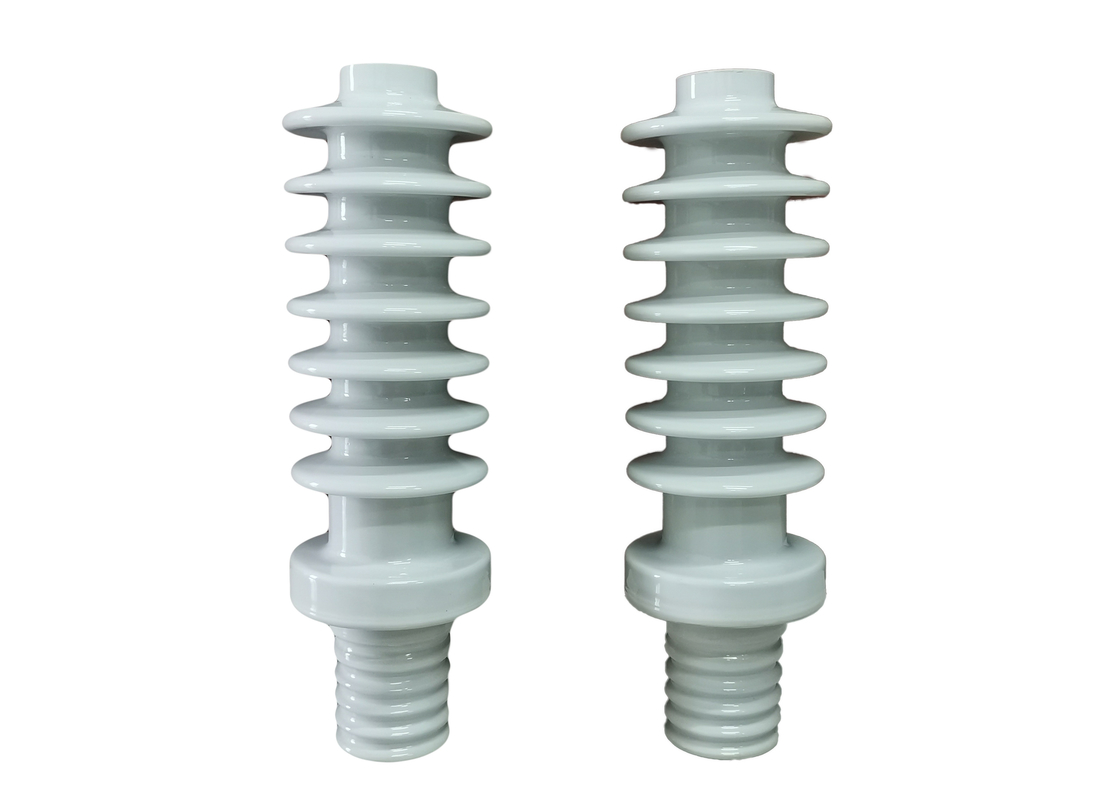

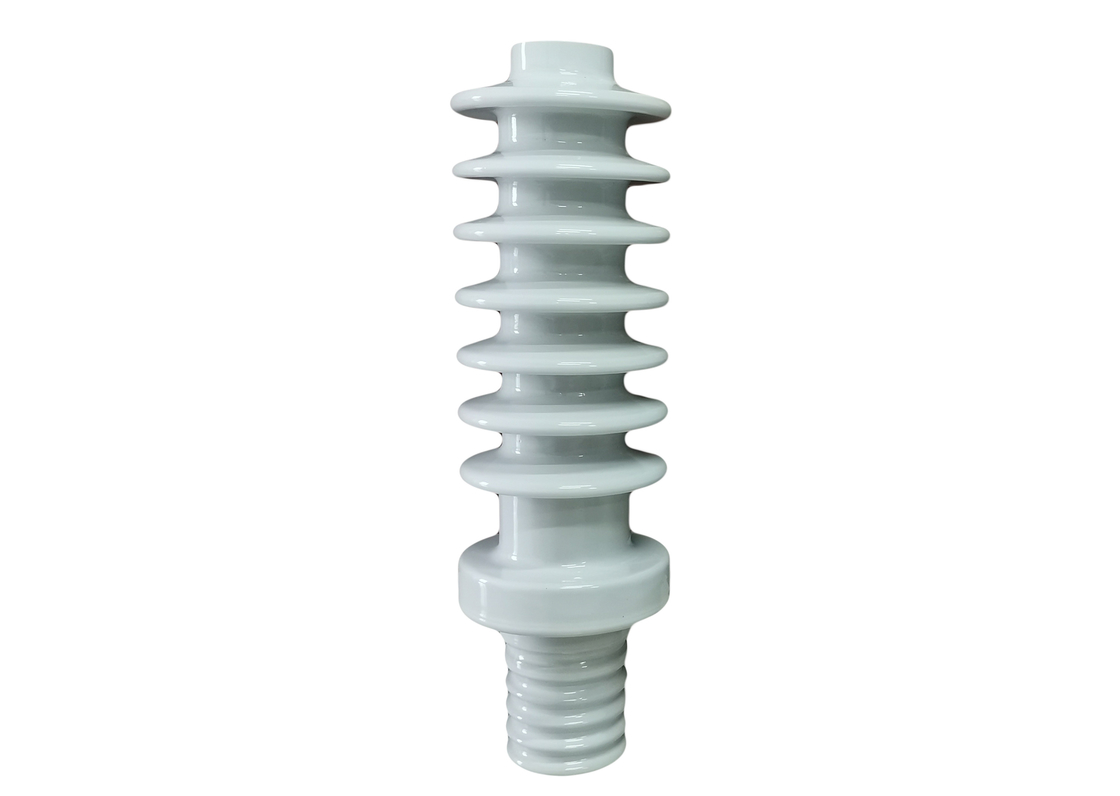

Professional IEC standard 18kv Gas insulated transformer bushing
Descriptions:
| IEC CLASS | Height(mm) | Shed dia.(mm) | Creepage distance (mm) | Failing load (kg) | Granding surface |
| 18kV | 325 | 115 | 530 | 300 | 6S |
The transformer bushing is to lead the high and low voltage leads inside the transformer to the outside of the oil tank, not only as the lead to ground insulation, but also plays a role of fixing the lead.
Applications:
Gas insulated porcelain bushings are used for SF6 gas insulated load break switch.
Competitive Advantages:
1. The porcelain glaze are hard and shinning , it has very good self-cleaning advantage . it is easy for maintenance .
2. the insulator are non-punctured product . so the transmission line maintain will be much more easier .
3. we offer 1 years up to 2 years quality guarantee for our product .
4. OEM design are available.
Our products are sold all over the world, you can rest assured.
