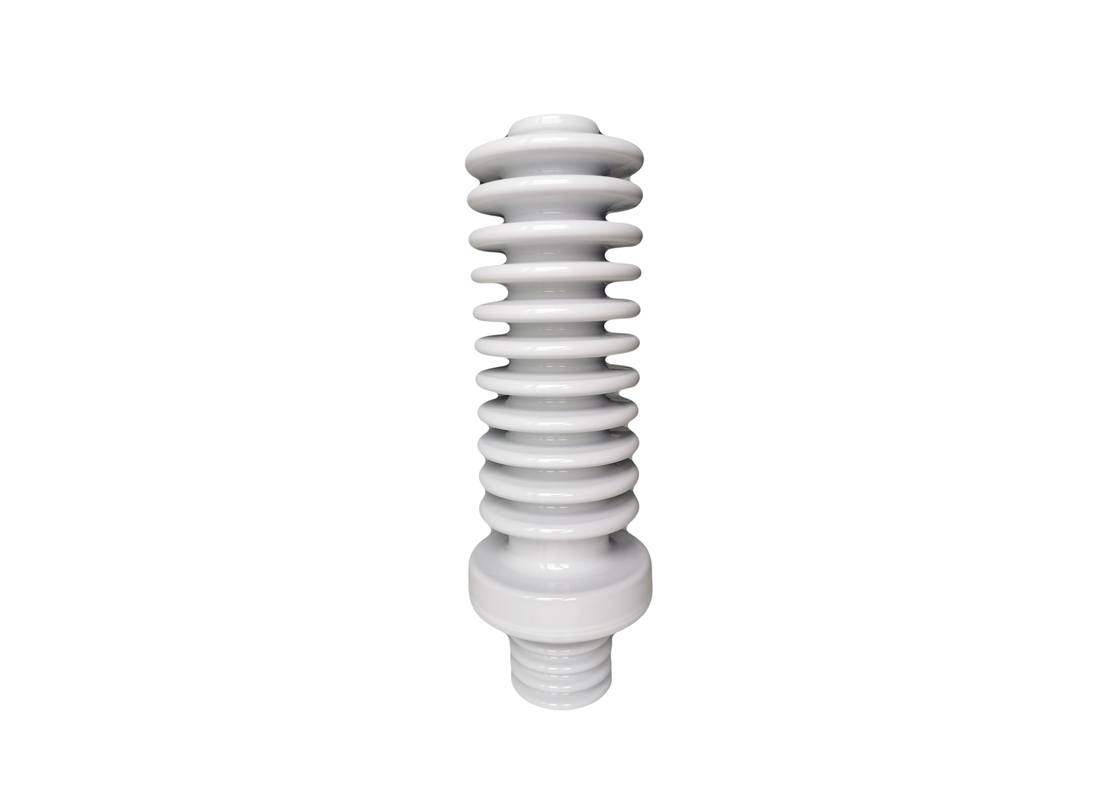

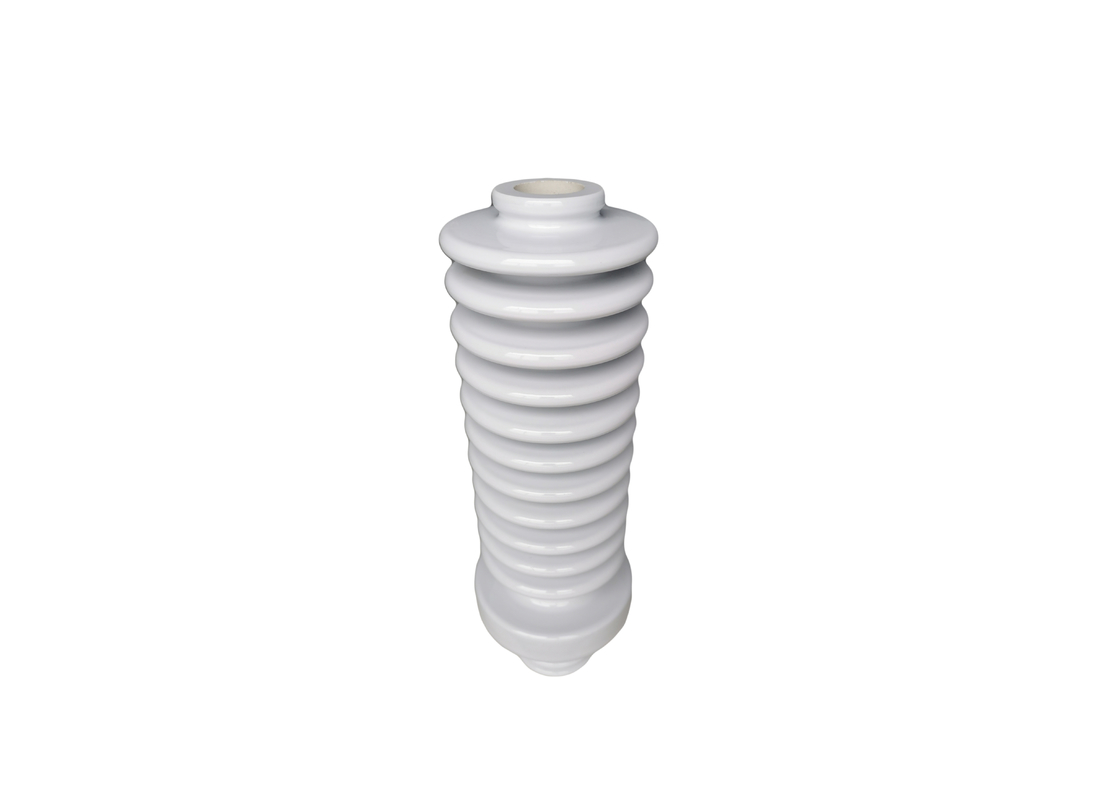

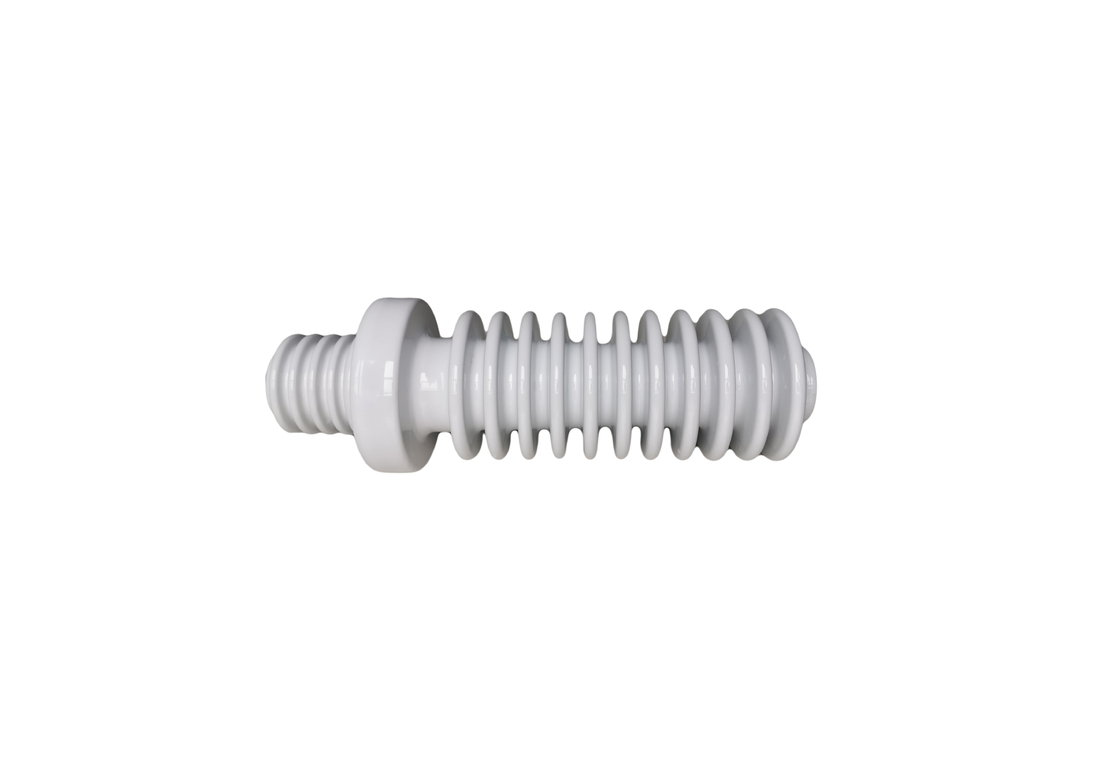

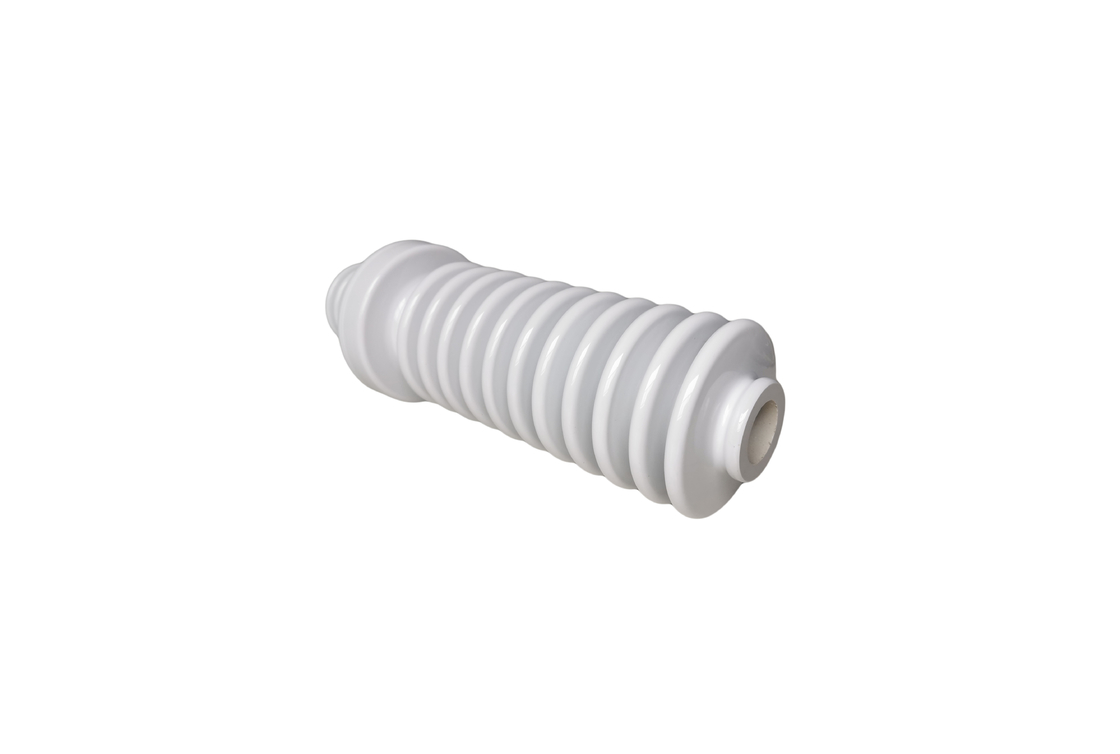

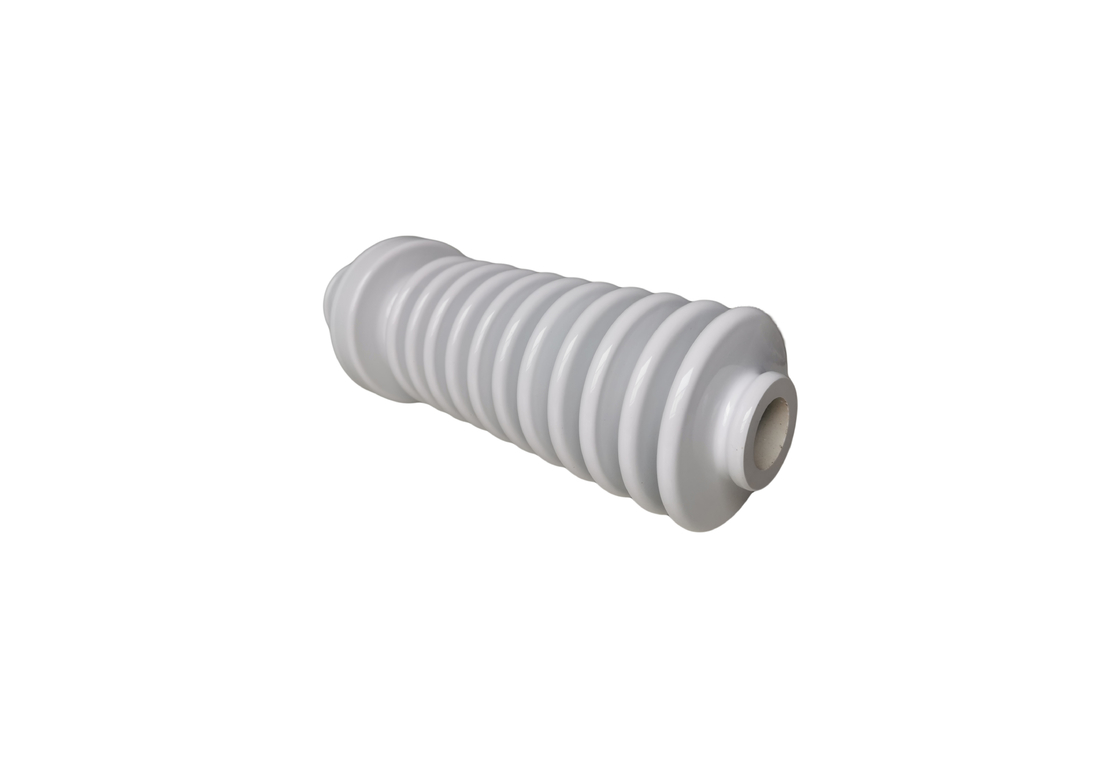

Customerized Bright White 25.8kV Gas Insulated Bushing

Customerized Bright White 25.8kV Gas Insulated Bushing

  • High Light

    25.8kV Gas Insulated Bushing

    ,

    Bright White Gas Insulated Bushing

    ,

    25.8kV Customerized Insulated Bushing

  • Color
    White
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    38kV
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

Customerized Bright White 25.8kV Gas Insulated Bushing



Customerized 25.8kV Gas insulated transformer bushing/Bright white color



Description:

IEC CLASS Height(mm) Shed dia.(mm) Creepage distance (mm) Sealing surface granding
38kV 482 120 1018 6S

Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current







Applications:



Gas insulated porcelain bushings are used for SF6 gas insulated load break switch.





Competitive advantages:


1). Can be manufactured according to GB and IEC,others such as ANSI, BS, AS, JIS , DIN ,etc.
2). Appearance is sparkling,and glittering ,fell smooth and flat
3). The mechanical and electrical performance is reliable
4). It can be produced accurately according to the customer's special requirement
