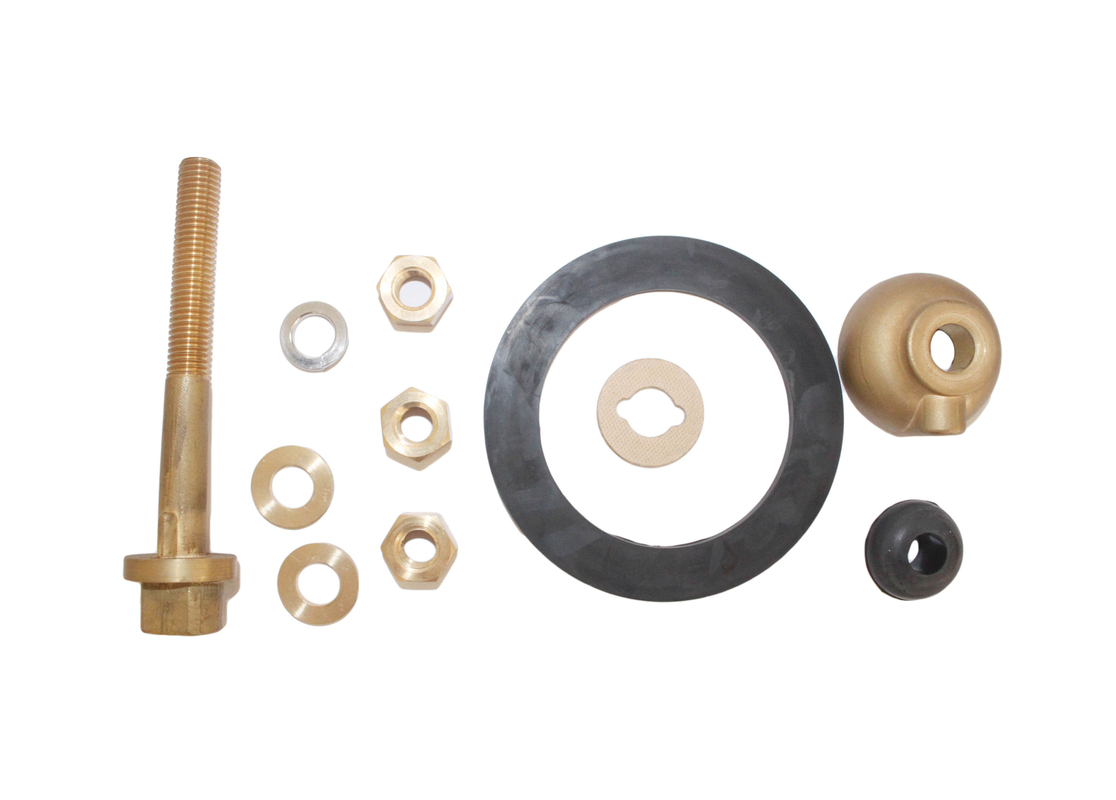

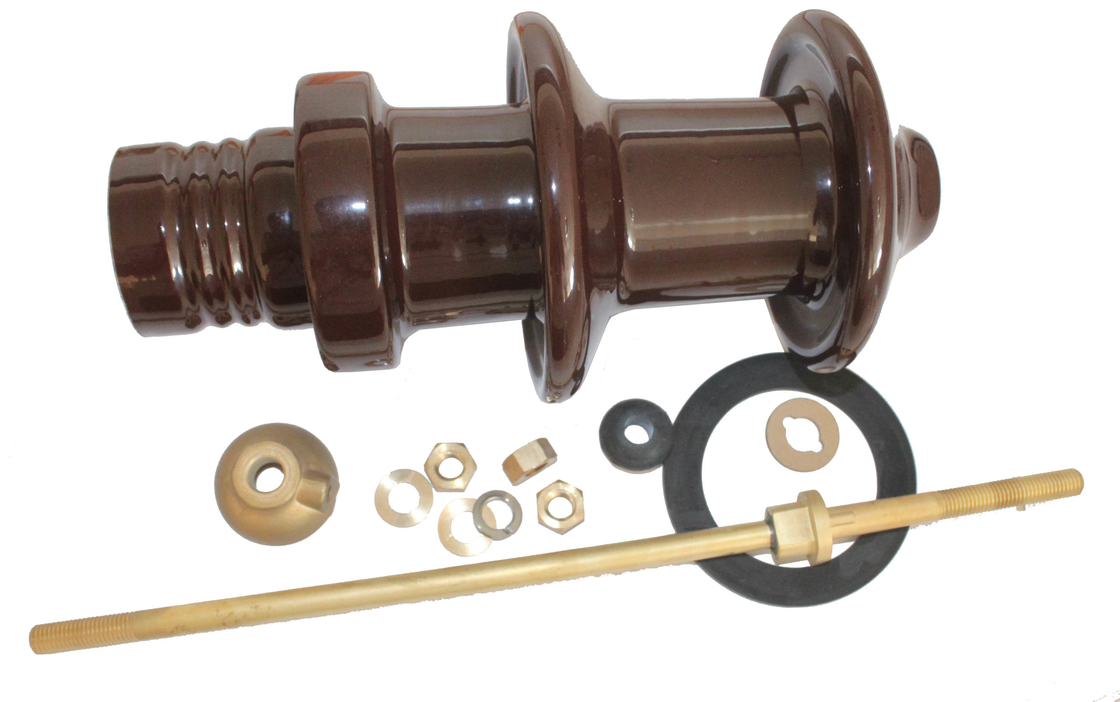

Power transmission line DT-10NF250 Transformer Porcelain Bushing assembly
Description:
| DIN 42531 | Height(mm) | Creepage distance (mm) | Power frequency withstand voltage(kV) | Lightning impluse withstand voltage(kV) | Weight(kg) |
| 10NF250 | 295 | 305 | 28 | 75 | 3.2 |
The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.
Features:
Insulator fittings , other than the suspension clamp ,which is physically in contact with the aluminum conductor, shall be made of galvanized steel with the exception of some critical items, such as the split pin of ball and socket clevises, which shall be made of pressed steel.
Specifications:
1.Material:Electrical porcelain
2.Applied Standard: IEC,AS,BS,AN
3. Product can be Customized
Our bushing is applied for oil-immersed type transformer, enjoying good reputation among clients from different countries.
Competitive Advantages:
1.The lower end of bushing is protected by porcelain shell which makes the bushing sturdy and prevents the permeation from impurities and moisture.
2.Maintain composure and patience in the face of difficult situations of clients.
3.Training of introduction of equipment are offered according to client's demand.
4.Build up long-term and stable partnerships, and constantly provide high-quality products.
5.Equipment are guaranteed up to one year and an overall after-sales service is provided.
If you want to buy transformer bushings with accessaries, please email or phone us at any time.
Our products are sold all over the world, you can rest assured.
