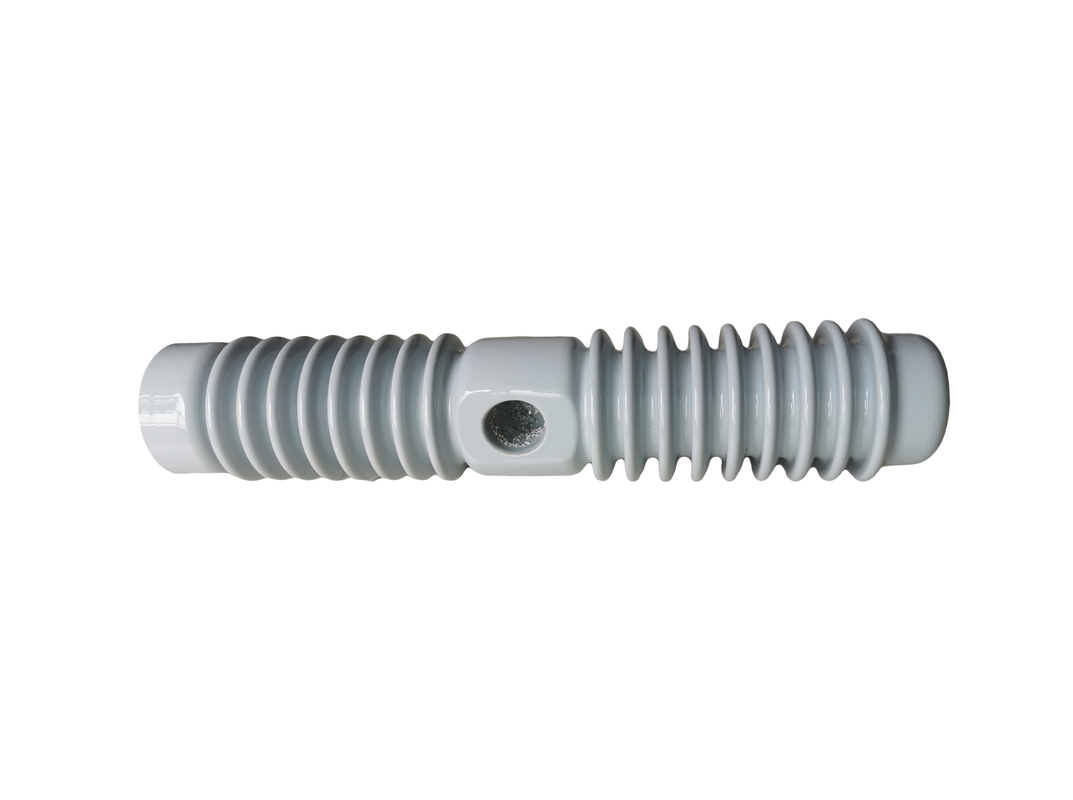

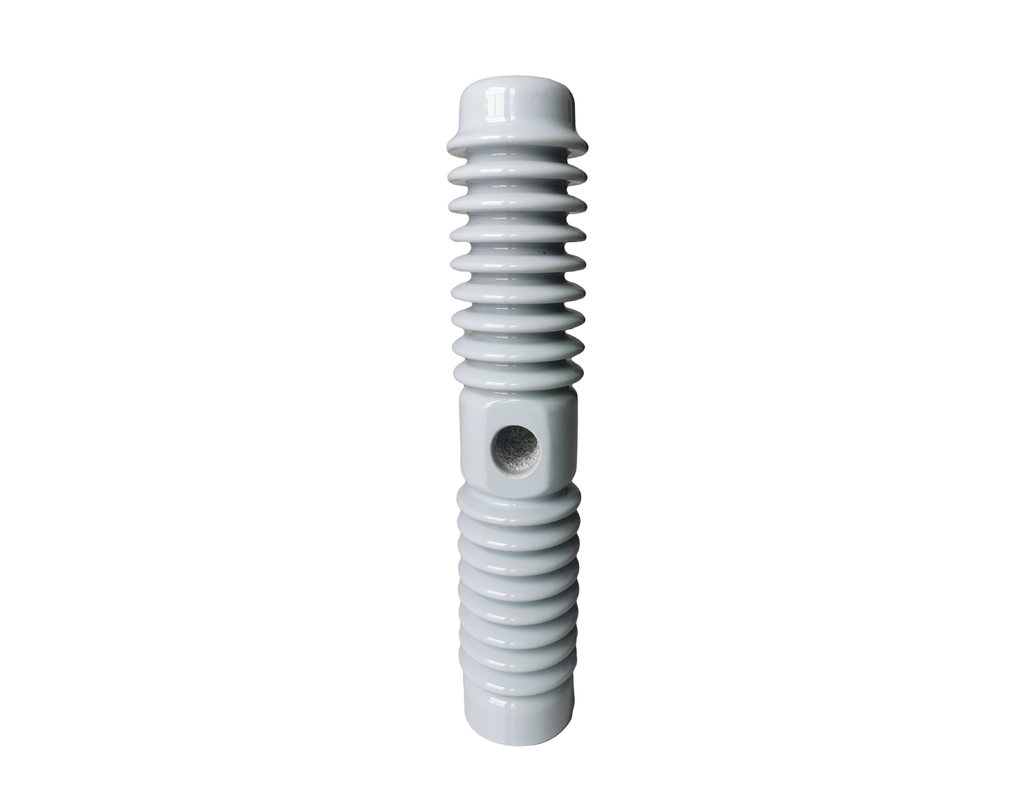

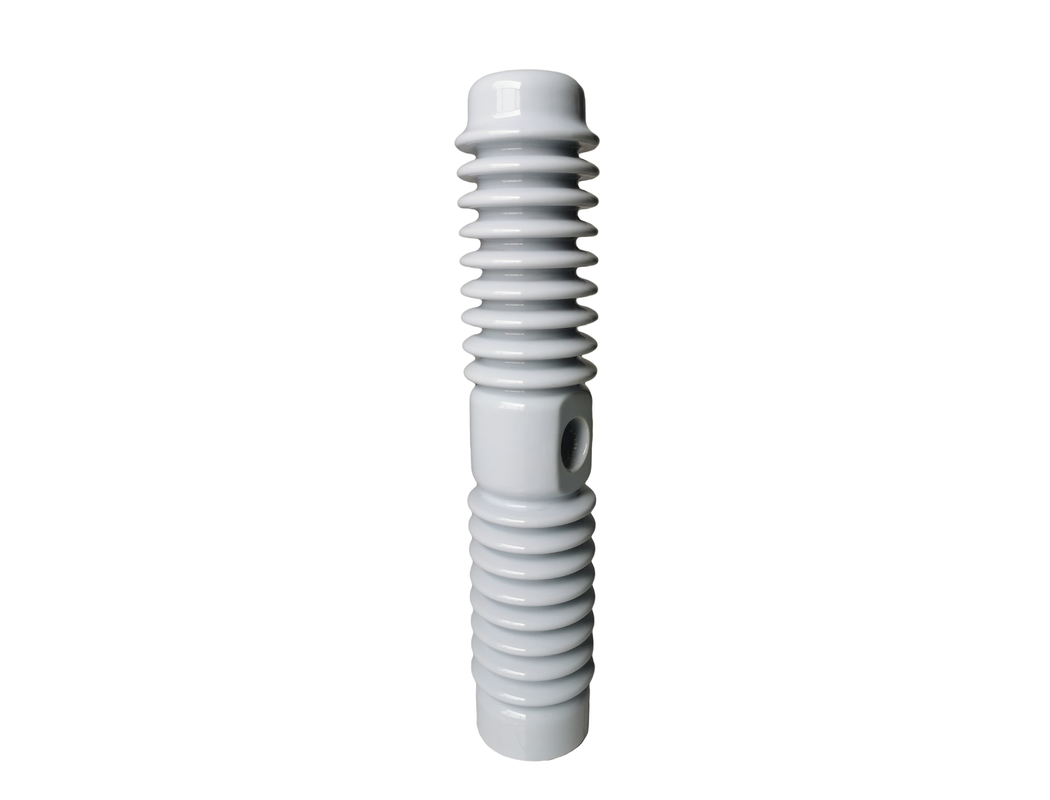

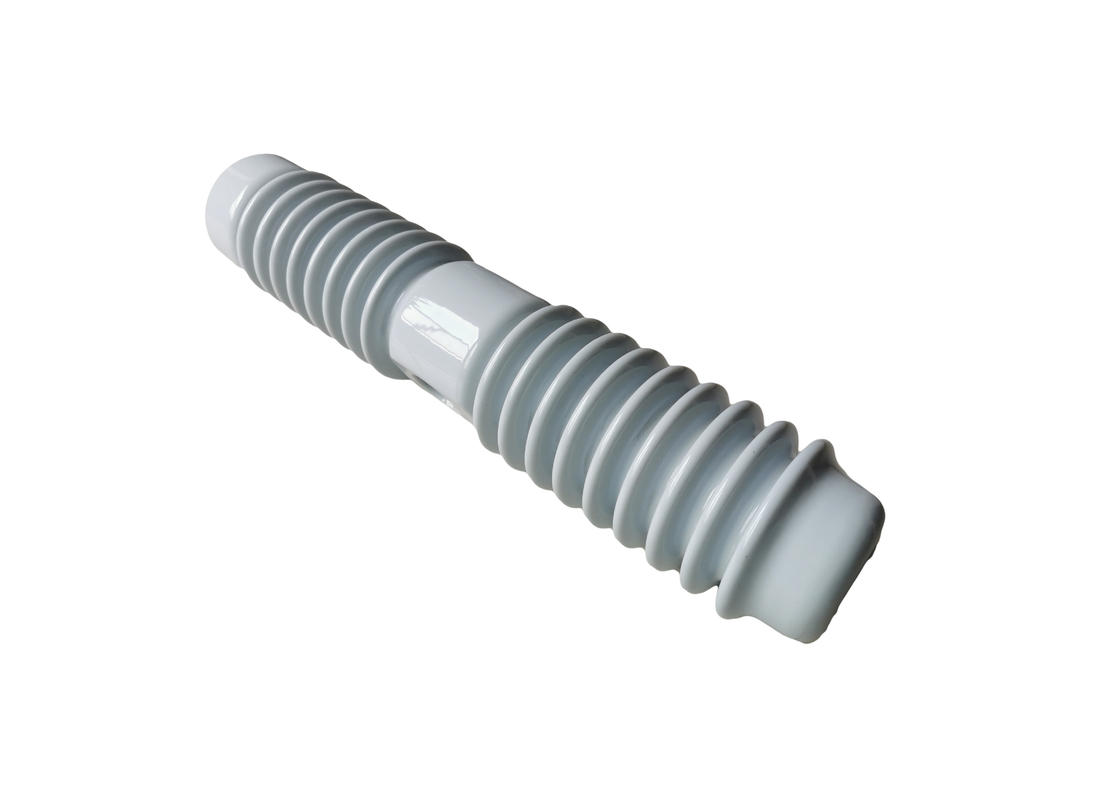

High Voltage 10kN 36kV Porcelain Fuse Cutout

High Voltage 10kN 36kV Porcelain Fuse Cutout

  • High Light

    36kV Porcelain Fuse Cutout

    ,

    10kN Porcelain Fuse Cutout

    ,

    36kV Fuse Link Cut Out

  • Color
    White
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    IEC
  • Product Name
    Cutout Porcelain Insulator
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    72301,72302
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

High Voltage 10kN 36kV Porcelain Fuse Cutout


High voltage special Porcelain Fuse Cutout / white glazed / OEM available


Description:

Cat. No. Voltage Class kV Creepage Distance mm Cantilever Strength kN

       Main dimensions

   ( mm )

Shed

Number

Weight

kg

H D d
72301 33/36 660 6.8/10 467 130 35 16 7.5
72302 33/36 660 6.8/10 467 121 32 16 7.5
Applicable Standard: IEC ANSI AS

Except assembled dropout fuse cutout , we also offer high quality fuse cutout insulators. the insulator are much longer than normal products , and final insulator must be straight . the curved units are un-qualified. so during production, we made many improvement to increase production qualified rate.




Application:



the insulator is used for distribution lines up to 36kV for line protection. also when distribution need to maintenance, ​the fuse cutout can easily control line power on and off.





Competitive Advantages:



All porcelain raw material are selected , so we guarantee final product has high reliable performance.

All insulator dimensions comply with related drawings, so there are no such assembly problem for dropout fuse cutout factories .

Every piece of porcelain is routine tested of 50% of rated cantilever strength , so the defect units will be sorted out .
