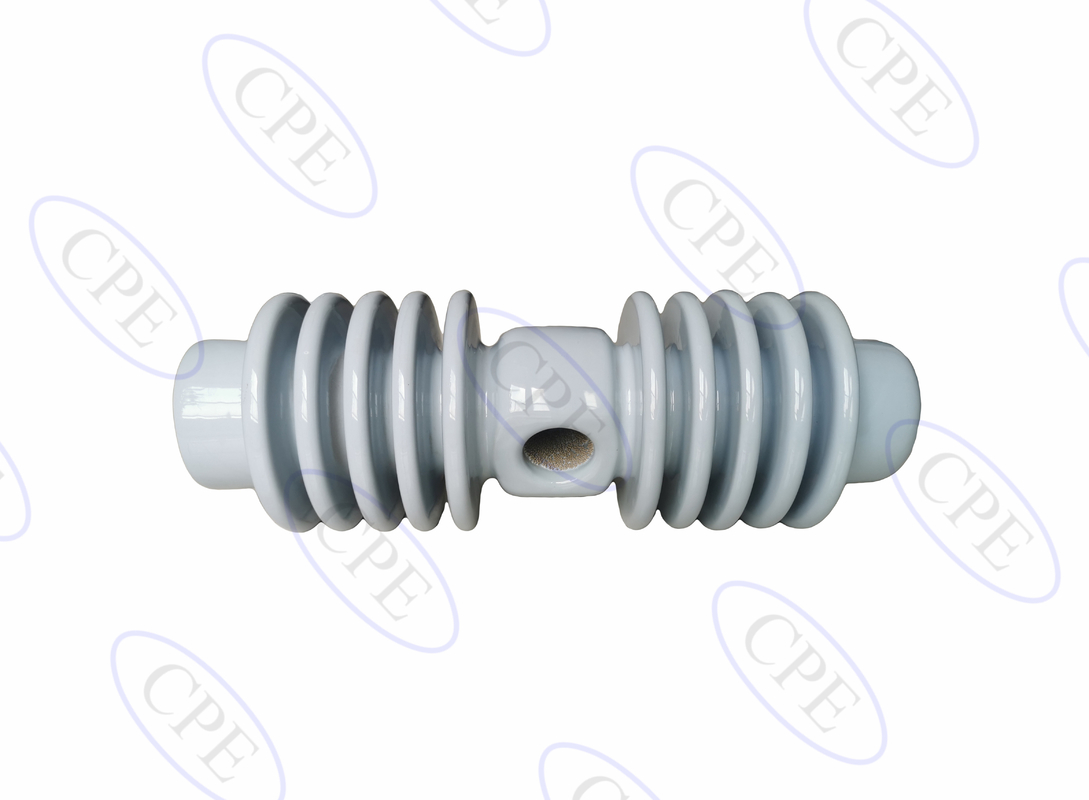

10 Sheds 10kv-15kv Fuse Cutout Porcelain Fuse Cutout For Distribution Lines
Description:
| Cat. No. | Voltage Class kV | Creepage Distance mm | Cantilever Strength kN | Main dimensions ( mm ) |
Shed Number |
Weight kg |
||
| H | D | d | ||||||
| 72205 | 24/27 | 470 | 10 | 376 | 131 | 35 | 12 | 5.8 |
| 72206 | 24/27 | 460 | 10 | 375 | 129 | 32 | 10 | 6.0 |
| 72207 | 25/27 | 432 | 6.8/10 | 467 | 95 | 32 | 17 | 5.2 |
| 72208 | 24/27 | 450 | 10 | 376 | 127 | 32 | 10 | 5.8 |
| Applicable Standard: IEC ANSI AS | ||||||||
It is very important to select proper voltage level cutout for lines, you must consider maximum recovery voltage, system operating voltage, continuous current, basic-insulation level (BIL) and fault-current levels. Then you must choose proper fuse links.
Applications:
10KV fuse cutout are very suitable for distribution lines or substations up to 10KV 125BIL.
Product Specification / Models:
Product features:
To ensure mechanical strength and heat stability we adopt high strength ceramic formula contenting higher aluminium oxide. As per drawing and standard requirement,all post insulator will conduct visual dimension ,geometric tolerance ,ultrasonic test and four-way bending test one by one.
High-voltage insulators made by KSIpower posses beautiful appearance ,
pure glaze,
reasonable structure,
good resistance to heat and cold,
stronger for low temperature cold resistance,
good earthquake resistance,
high mechanical strength ,
good resistance to soiling,
low radio interference,
safe and reliable operation.
Competitive Advantages:
All porcelain raw material are selected , so we guarantee final product has high reliable performance.
all insulator dimensions comply with related drawings, so there are no such assembly problem for dropout fuse cutout factories .
every piece of porcelain is routine tested of 50% of rated cantilever strength , so the defect units will be sorted out .
Our products are sold all over the world, you can rest assured.
