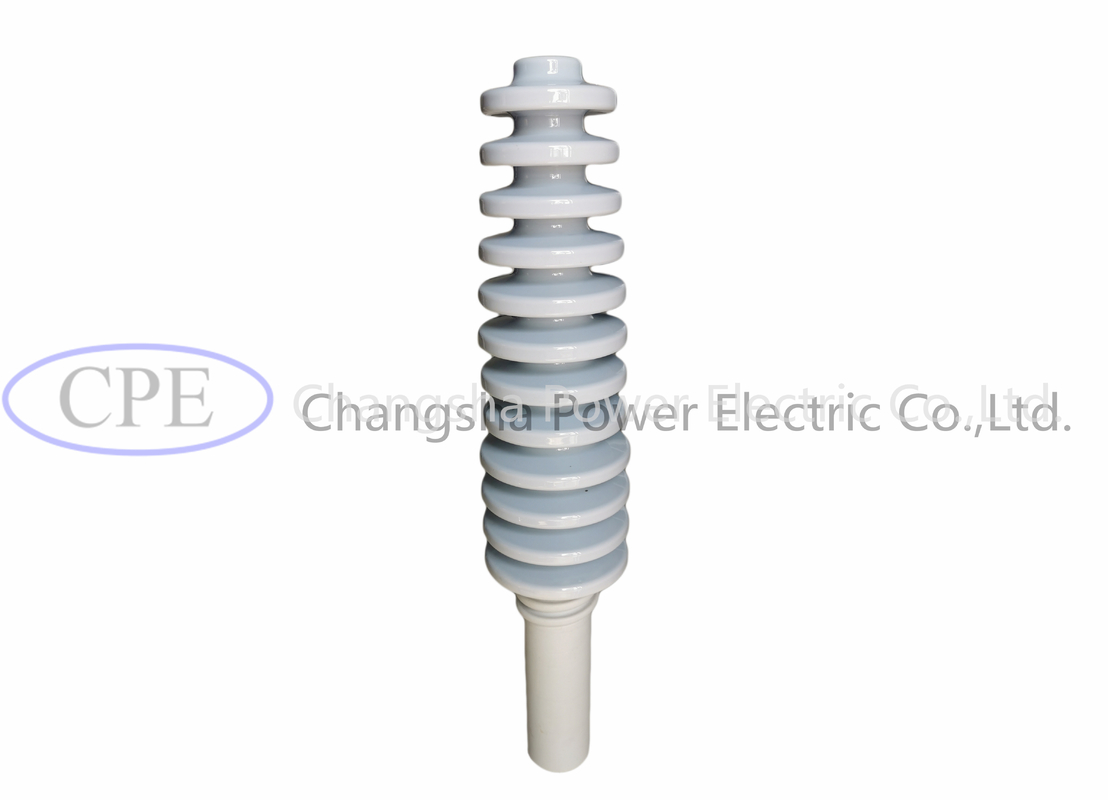

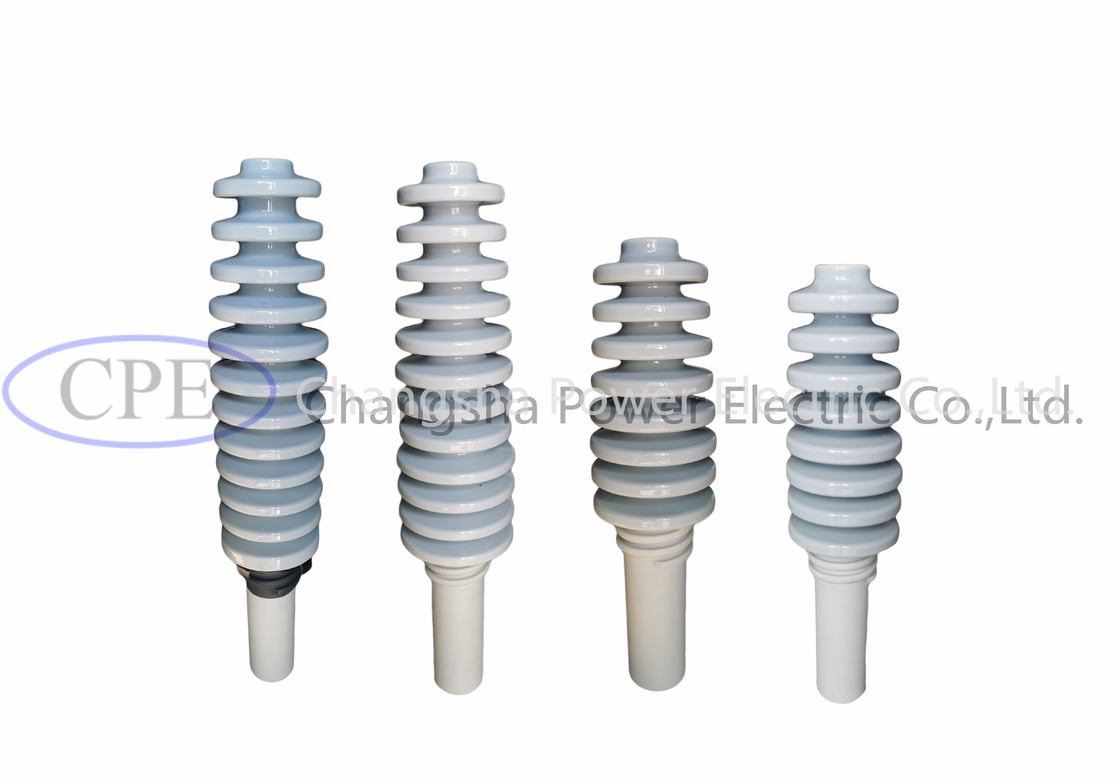

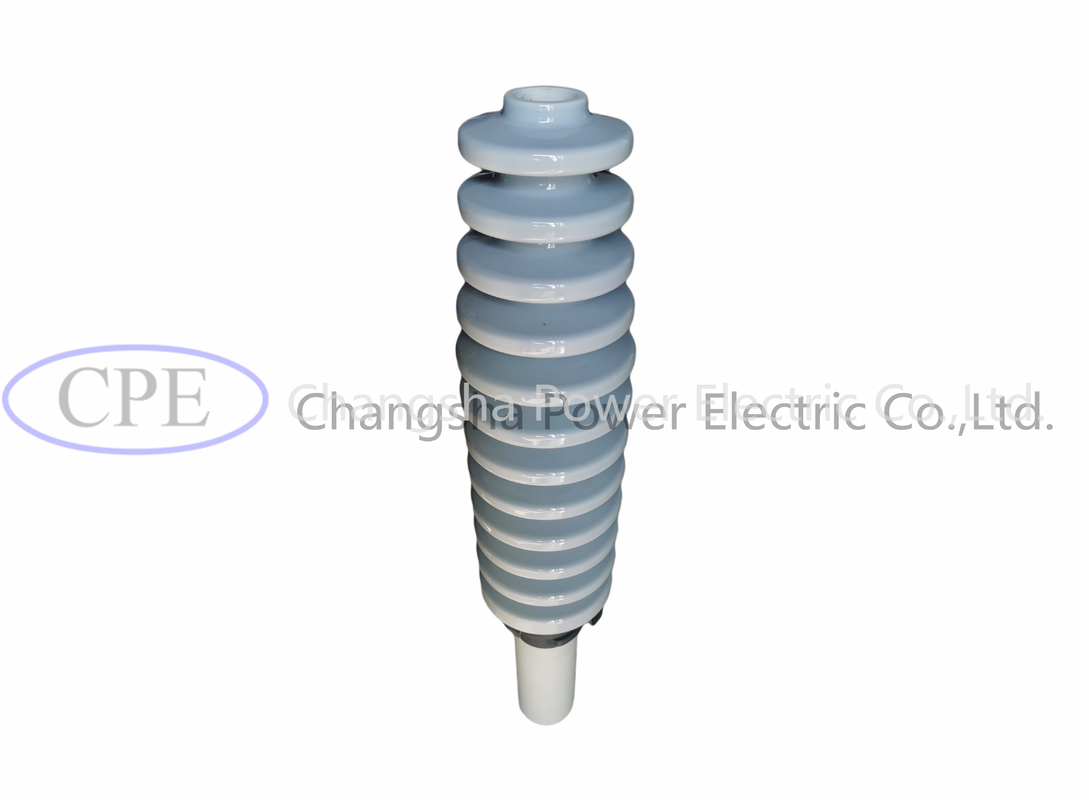

Semi-conductive ANSI standard HV Transformer Porcelain Bushing / gray color
Description:
| ANSI CLASS | Height(mm) | Creepage distance (mm) | Dry arcing distance (mm) | BIL(kV) | Torsion strength (N.m) |
| 34.5kV | 528 | 785 | 350 | 150 | 20.3 |
Bushing insulator is used between the transformer rectifier and the discharge electrode suspension of an ESP for leading high voltage into the electric filed, functioning as insulating and supporting of the bus rod.
By its own structure it is divided into two types: pure ceramic insulator and combined insulator.
Applications:
The bushings are used for oil type distribution transformer.
1. The porcelain glaze are smooth and shinning , have a very good self-cleaning performance.
2. OEM design available upon customer’s requirement or special technical specifications.
3. Efficient and fast responses are pre-requisite.
4. We offer 2-3 years quality guarantee.
Our products are sold all over the world, you can rest assured.
