| Cat. No. | Voltage Class kV | Creepage Distance mm | Cantilever Strength kN |
Main dimensions ( mm ) |
Shed Number |
Weight kg |
||
| H | D | d | ||||||
| 72301 | 33/36 | 660 | 6.8/10 | 467 | 130 | 35 | 16 | 7.5 |
| 72302 | 33/36 | 660 | 6.8/10 | 467 | 121 | 32 | 16 | 7.5 |
| Applicable Standard: IEC ANSI AS | ||||||||

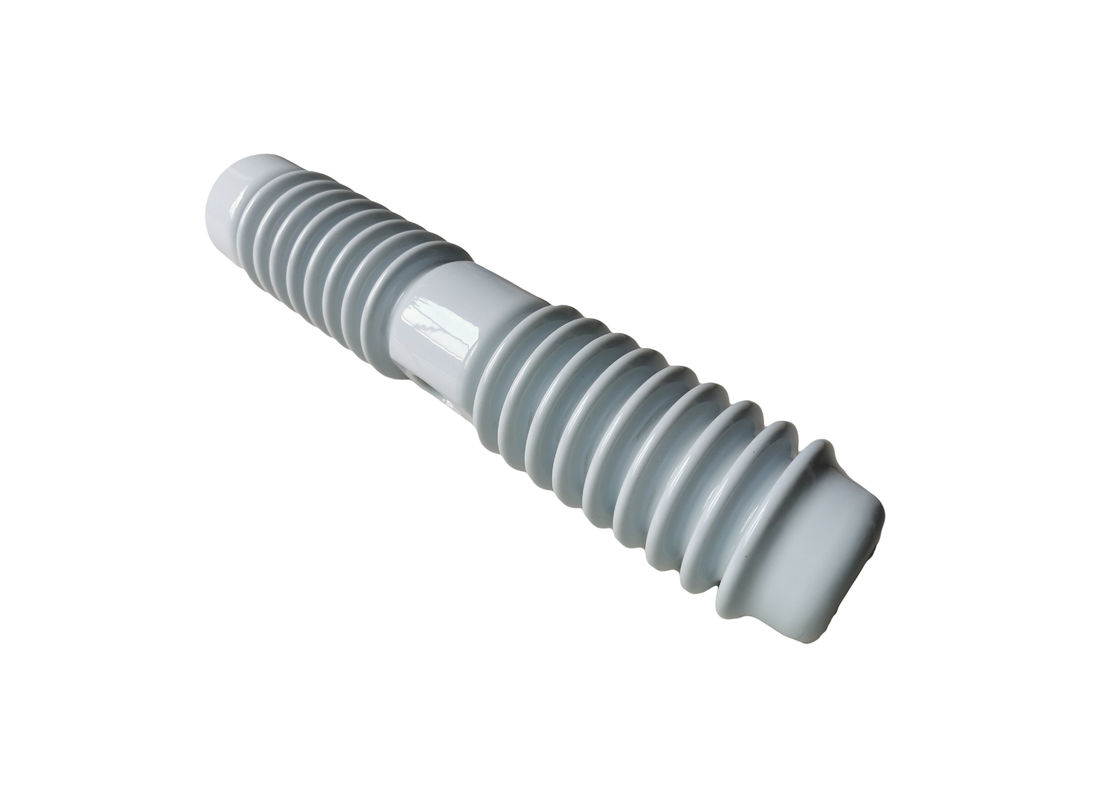

Except assembled dropout fuse cutout , we also offer high quality fuse cutout insulators. the insulator are much longer than normal products , and final insulator must be straight . the curved units are un-qualified. so during production, we made many improvement to increase production qualified rate.
Application:
the insulator is used for distribution lines up to 36kV for line protection. also when distribution need to maintenance, the fuse cutout can easily control line power on and off.
Competitive Advantages:
All porcelain raw material are selected , so we guarantee final product has high reliable performance.
All insulator dimensions comply with related drawings, so there are no such assembly problem for dropout fuse cutout factories .
Every piece of porcelain is routine tested of 50% of rated cantilever strength , so the defect units will be sorted out .
Our products are sold all over the world, you can rest assured.
