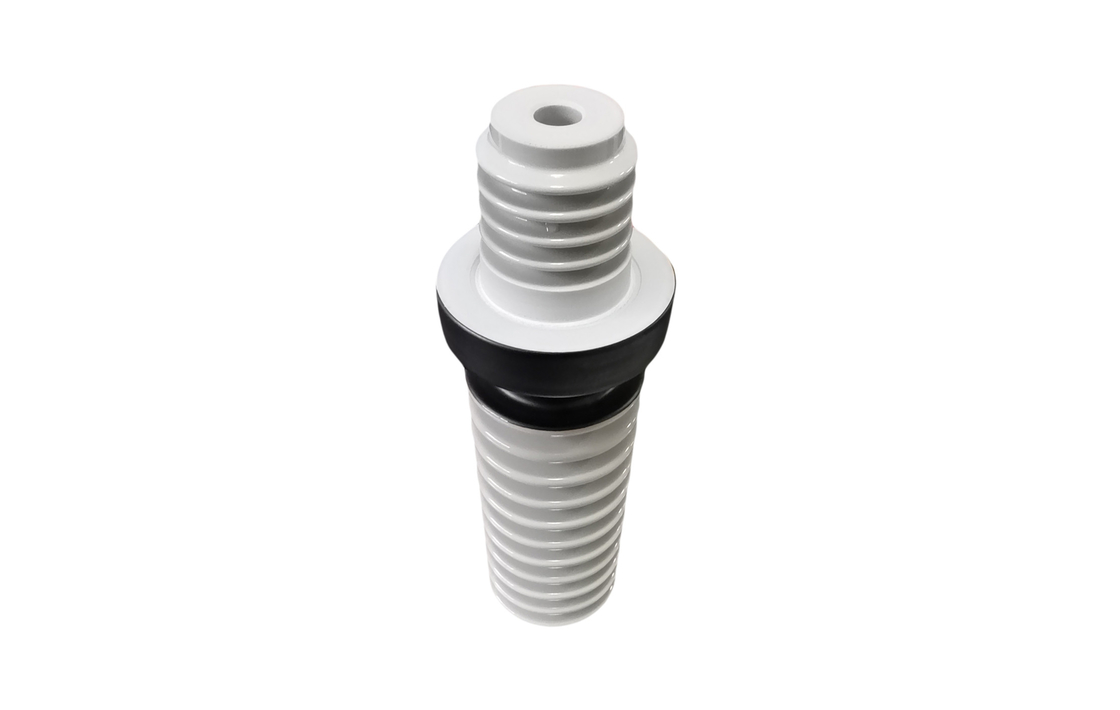

IEC standard 33kv Gas insulated transformer bushing / white color
Description:
Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current
Specifications:
1. Total height: 466mm
2. Shed dia.: 155mm
3. Creepage distance: ≥ 900 mm
4. Surface treatment must be smooth, no trace or holes.
5. Impulse 170kV, withstandard 70kV/1 min. IEC 60137 Edition 6.0 : 2008-07
Applications:

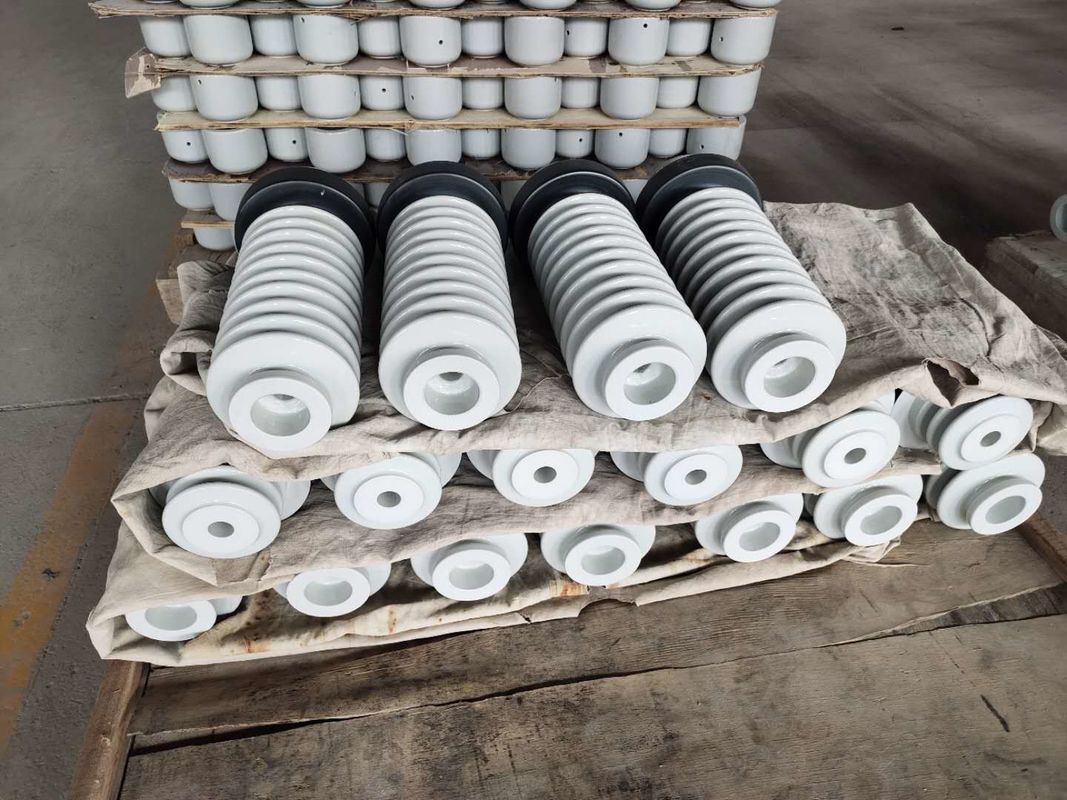

Gas insulated porcelain bushings are used for SF6 gas insulated load break switch.
Competitive Advantages:
1.Efficient and fast responses are pre-requisite.
2.Maintain composure and patience in the face of difficult situations of clients.
3.Training of introduction of equipment are offered according to client's demand.
4.Build up long-term and stable partnerships, and constantly provide high-quality products.
5.Equipment are guaranteed up to one year and an overall after-sales service is provided.
Our products are sold all over the world, you can rest assured.
