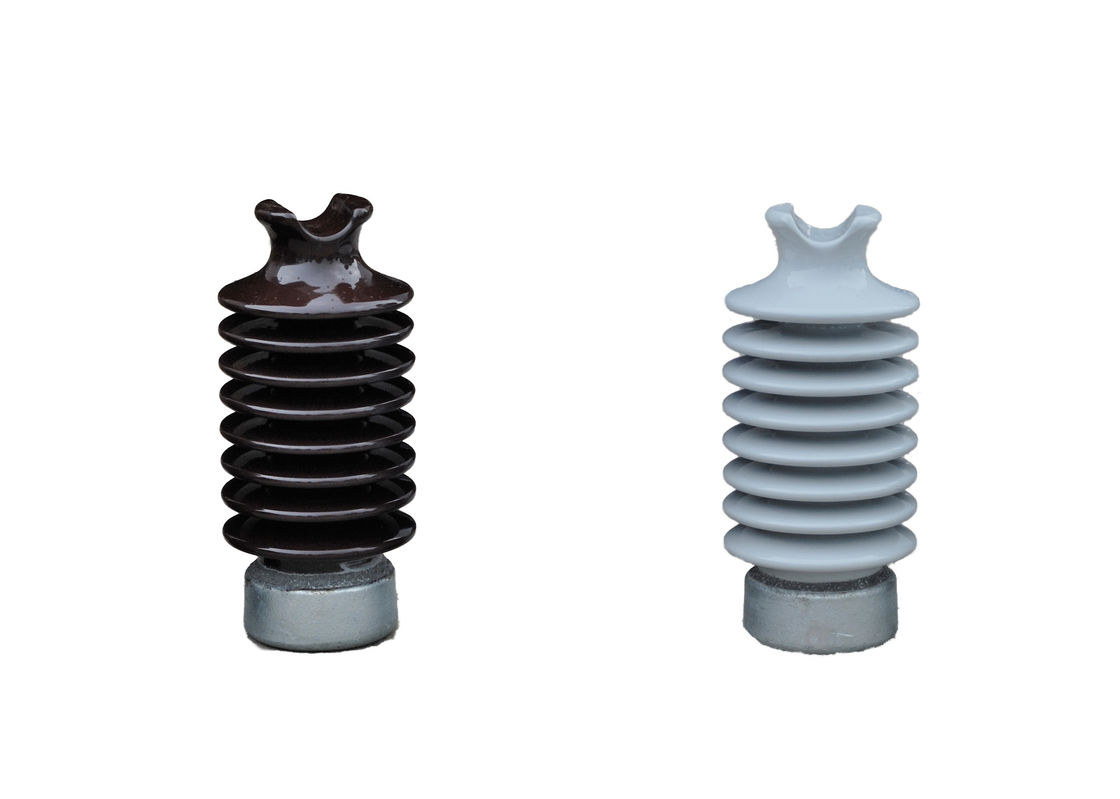

Transmission Line Post Porcelain Insulator ANSI 57-3S/ OEM available/ brown
Descriptions:
1. Line post insulators shall conform in all respects to the requirements of ANSI standard.
2. The insulators shall be made of good commercial-grade wet-process porcelain.The entire surface of the insulator, with the exception of a firing surface, shall be glazed.If gray is required, it shall be in accordance with ANSI Z55.1-1967 (R1973).
3. Metal parts shall be made of a good commercial grade of malleable iron, ductile iron, steel, oraluminum. Ferrous parts, other than stainless steel, shall be galvanized in accordance with ASTM A153.
Specification:
1. Glaze color: Light gray
2. Creepage distance: 737mm
3. Cantilever strength: 12.5kN
4. Power frequency fiashover voltage -Dry: 125KV
5. Power frequency fiashover voltage -wet: 95KV
6. Standard: ANSI
Competitive advantages:
Our company focus on electric products, marketing, services and logistics. It is an important manufacturer and export trader with several decades of experience in designing, researching, manufacturing, testing and logistics.
Our products are sold all over the world, you can rest assured.
