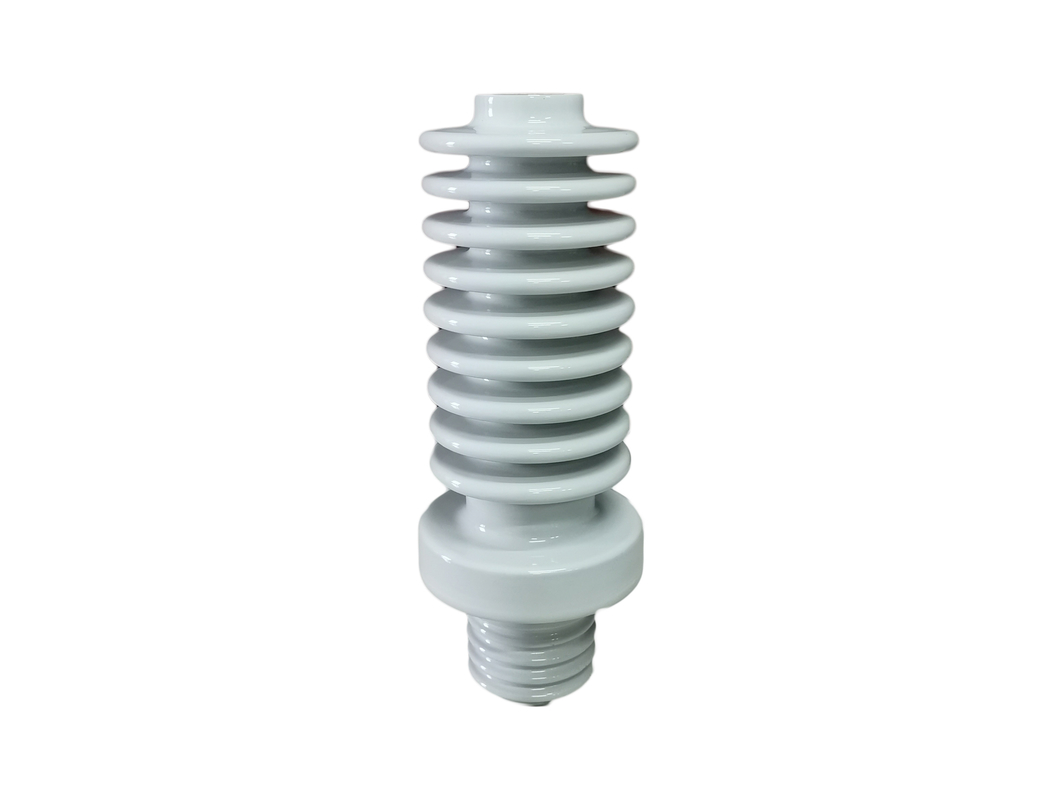

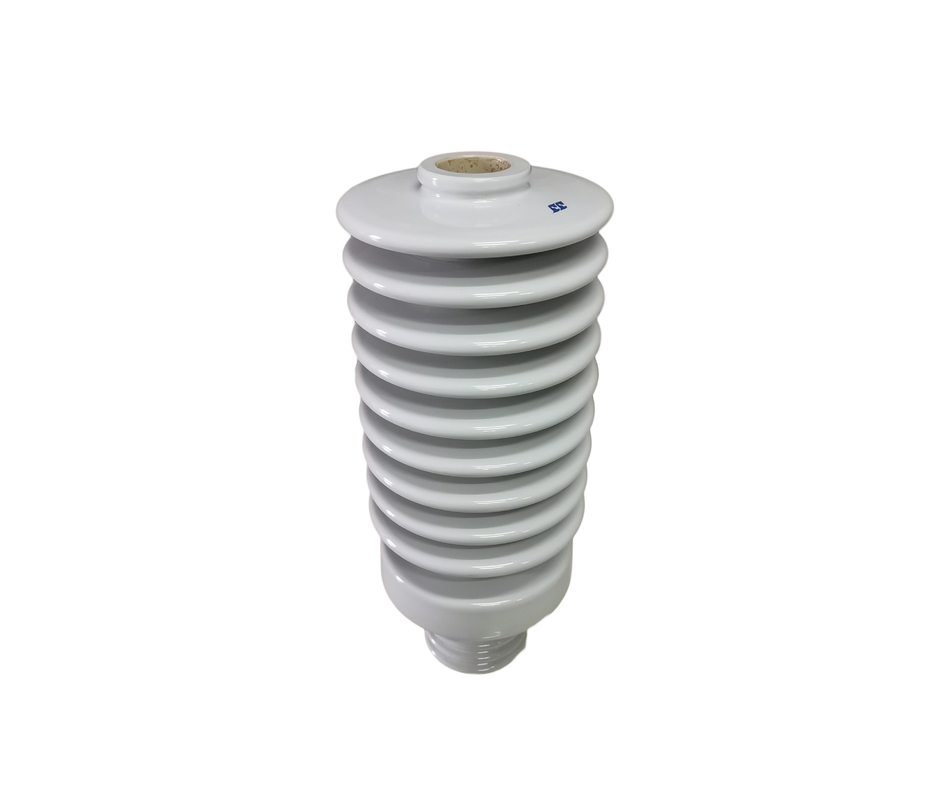

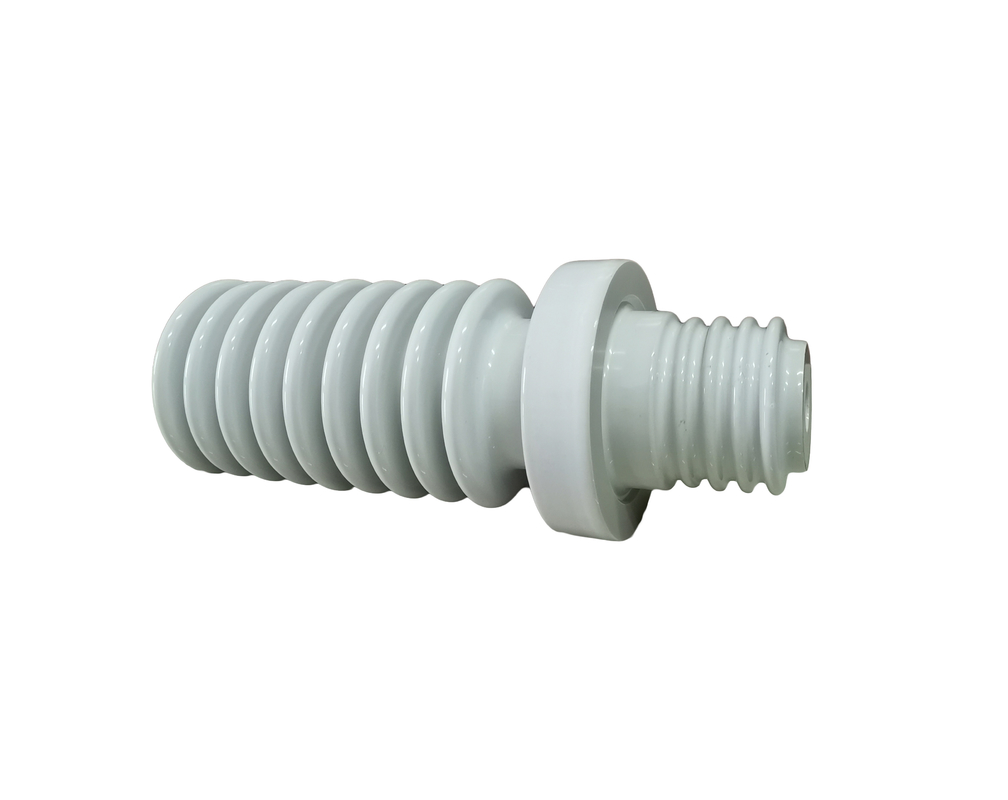

9 Sheds Gas Insulated Bushing

9 sheds Gas insulated bushing / white color / excellent failing load

Description:

Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current

Specifications:

1. Total height: 353mm

2. Shed dia.:117mm

3. Flange dia.: 135mm

4. Creepage distance: 625mm

5. Power frequency withstand voltage: 60kV

Outlook inspection standard: JISC3802(A-1)/ IEC standard

Applications:

Gas insulated porcelain bushings are used for SF6 gas insulated load break switch.

Competitive Advantages:

1.Efficient and fast responses are pre-requisite.

2.Maintain composure and patience in the face of difficult situations of clients.

3.Training of introduction of equipment are offered according to client's demand.

4.Build up long-term and stable partnerships, and constantly provide high-quality products.

5.Equipment are guaranteed up to one year and an overall after-sales service is provided.
