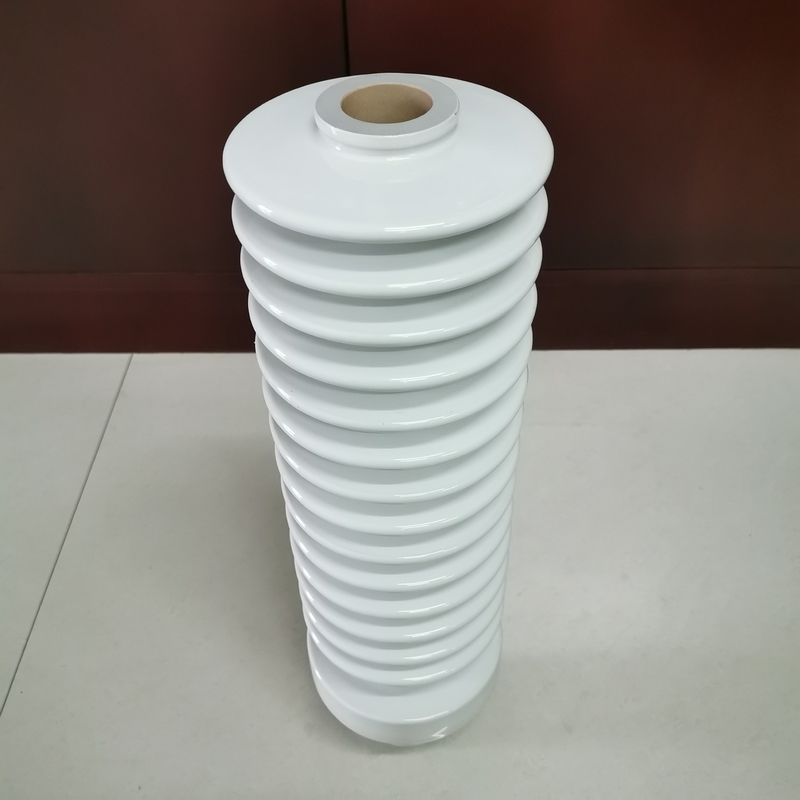

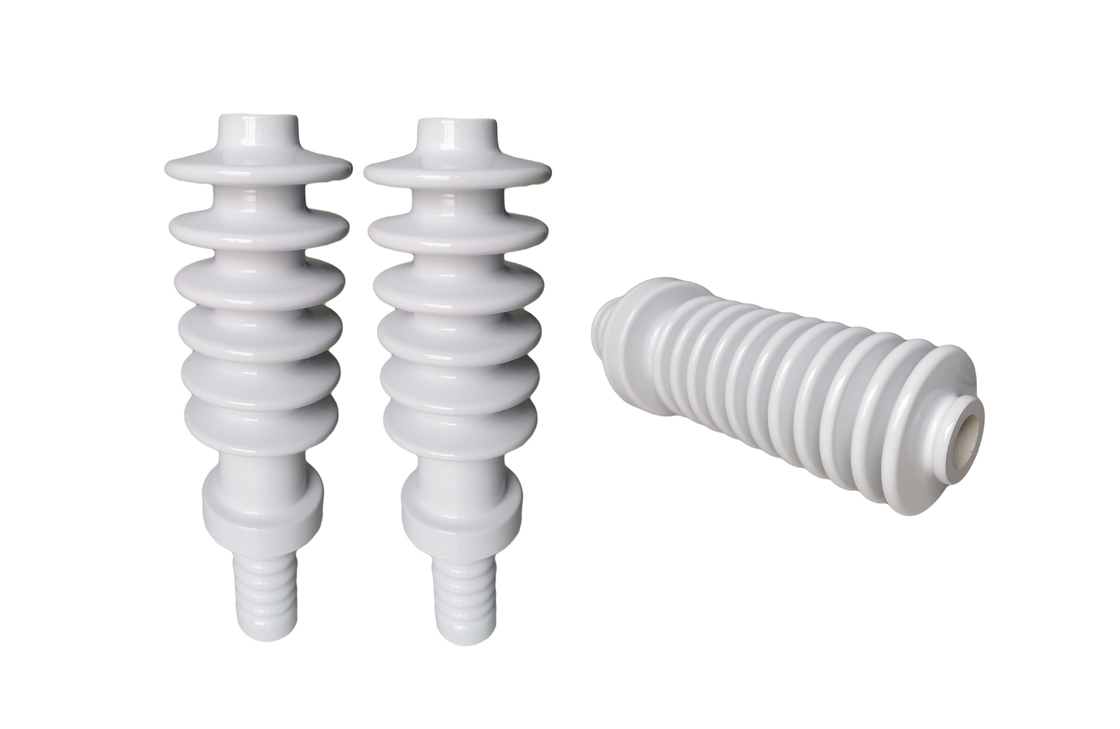

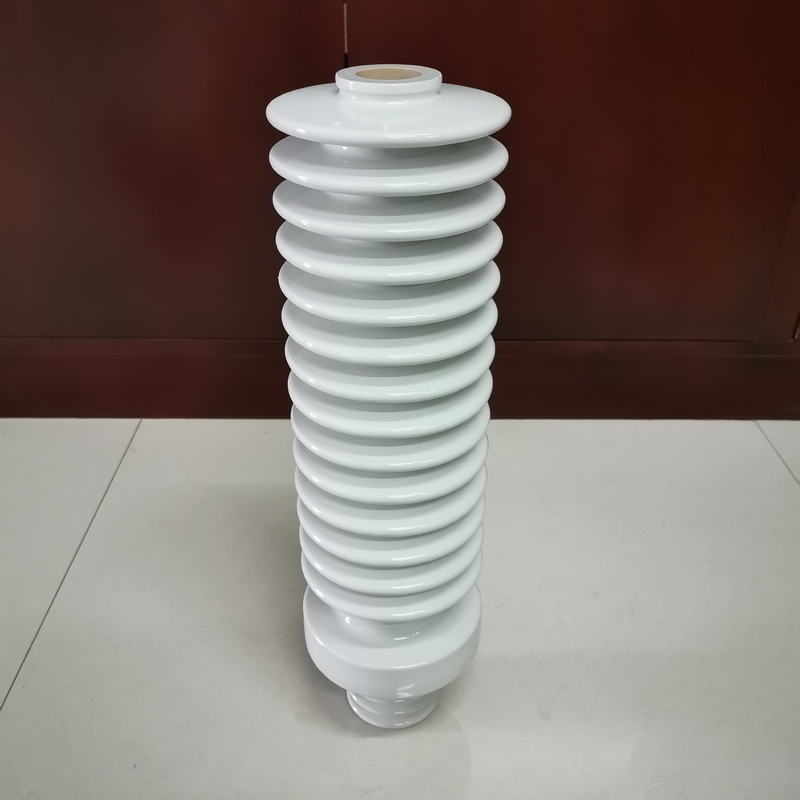

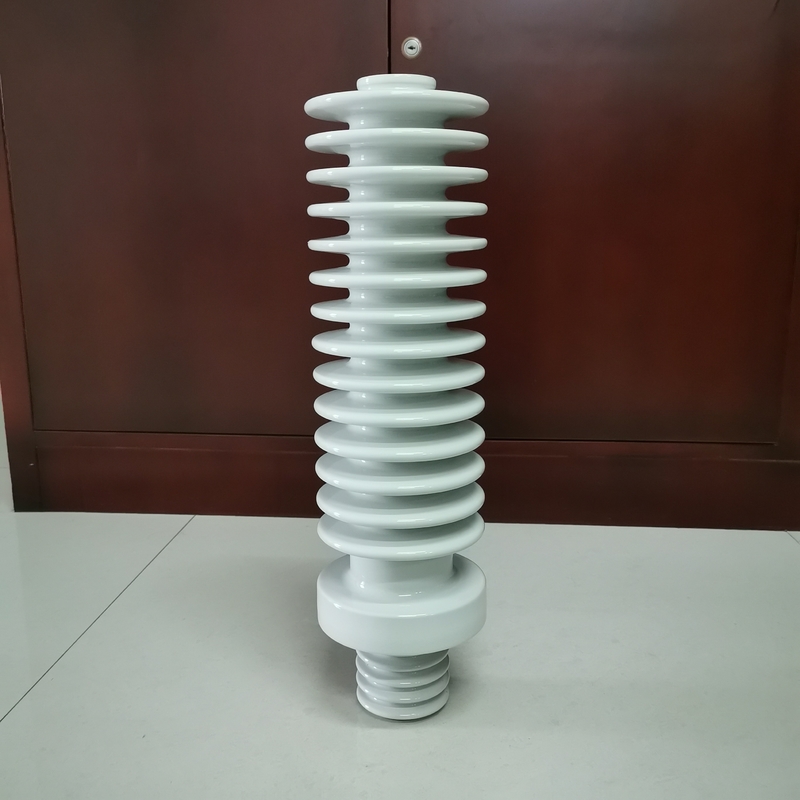

13sheds 33kv Gas insulated transformer bushing / excellent failing load
Description:
Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current
Specifications:
1. Total height: 513mm
2. Shed dia.:140mm
3. Flange dia.: 140mm
4. Creepage distance: 970mm
5. Power frequency withstand voltage: 90kV
6. Outlook inspection standard: JISC3802(A-1)/ IEC standard
Applications:
Gas insulated porcelain bushings are used for SF6 gas insulated load break switch.
Competitive Advantages:
1. we offer 1 years up to 2 years quality guarantee for our product .
2. The insulator finish are smooth and shinning , it has very good self-cleaning performance and easy for maintenance.
3. OEM design are available .
Our products are sold all over the world, you can rest assured.
