Customerized Porcelain ODM Shackle Type Insulators

Customerized Porcelain ODM Shackle Type Insulators

  • High Light

    ODM Shackle Type Insulators

    ,

    Porcelain Shackle Type Insulators

    ,

    ODM Customerized Shackle Insulators

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Product Name
    Spool Porcelain Insulator
  • Sample
    Provided
  • OEM/ODM
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    1402
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

Customerized Porcelain ODM Shackle Type Insulators

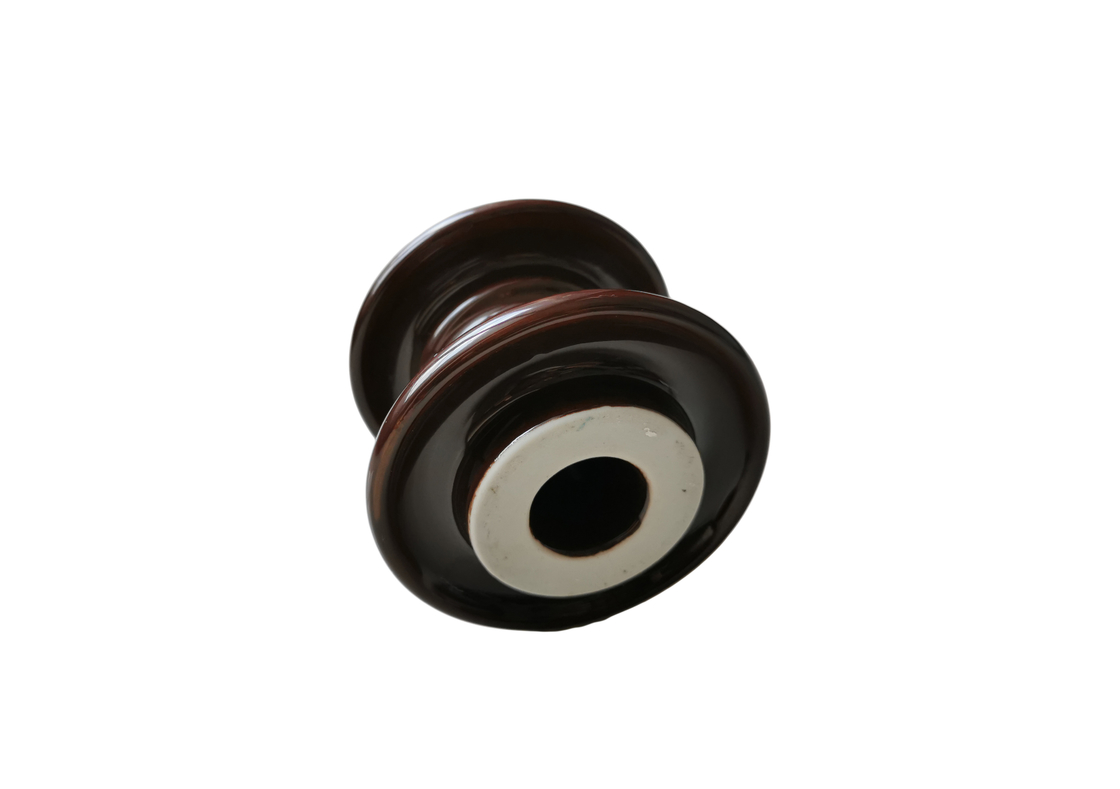

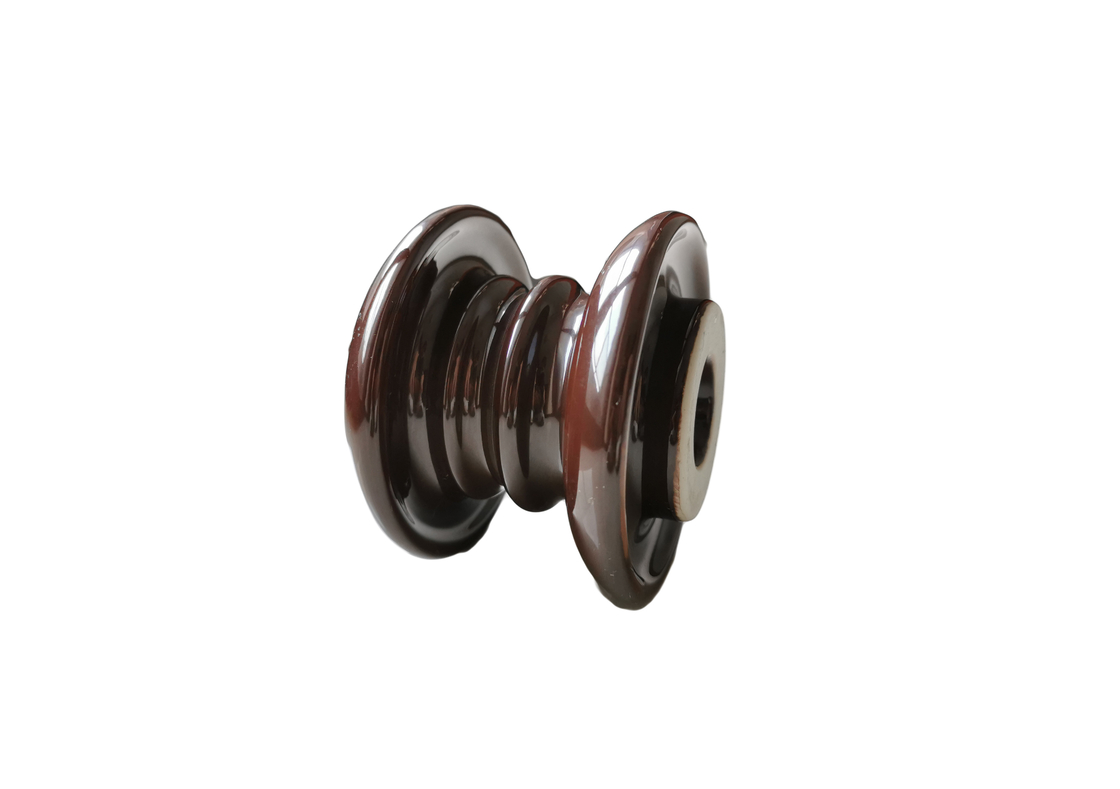

Customerized 1.5kV Porcelain Spool Insulators in brown color for Korean





Description:



Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current.





Specifications:



No. Requirements Dated value
1 Height 93mm
2 Big shed Dia φ110
3 Small shed Dia φ95
4 Inner hole Dia φ19
5 Color White or green







Applications:



This spool porcelain insulatos are used for overhead transmission lines.





Competitive Advantage:



1.We offer 1 year up to 2 years quality guarantee for our product .

2.The insulator finish are smooth and shinning, it has very good self-cleaning performance and easy for maintenance.

3.OEM design are available.
