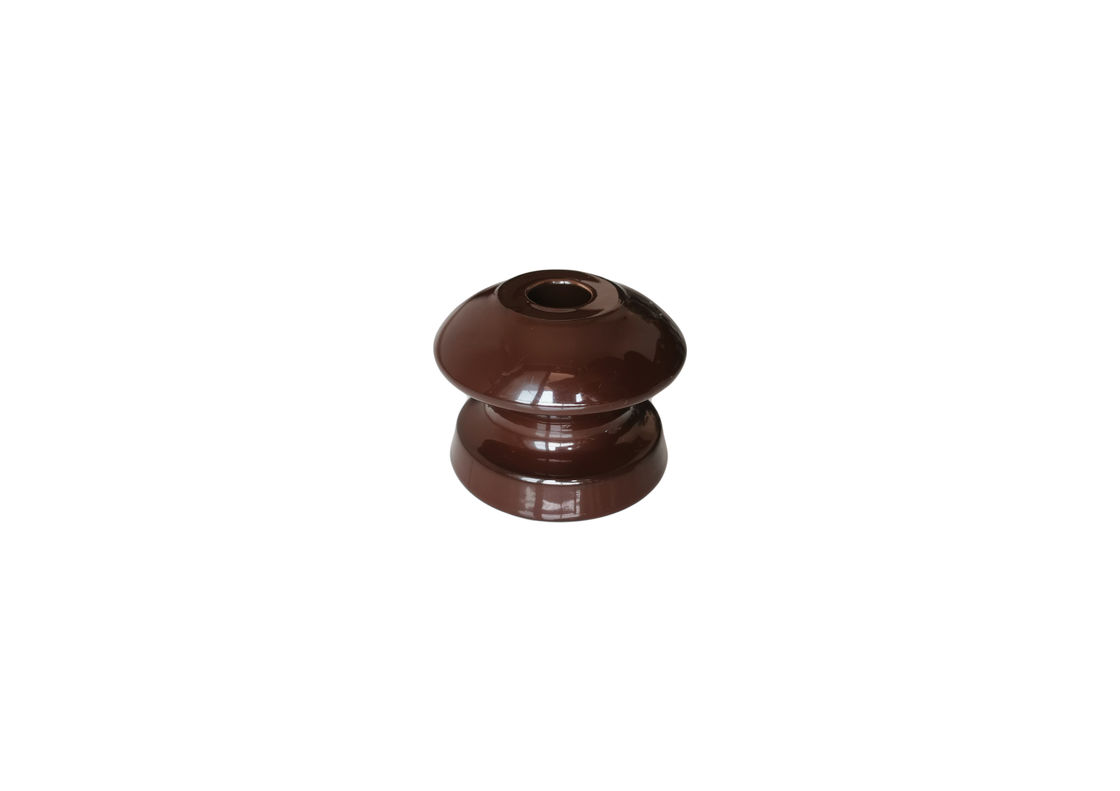

Brown Color ANSI Class 25kV Shackle Insulators

Brown Color ANSI Class 25kV Shackle Insulators

  • High Light

    25kV Shackle Insulators

    ,

    ANSI Class Shackle Insulators

    ,

    25kV Brown Shackle Insulators

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Product Name
    Spool Porcelain Insulator
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    ANSI 53-4
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

Brown Color ANSI Class 25kV Shackle Insulators

Porpular used Porcelain Spool Insulators / brown color / OEM available





Description:



ANSI CLASS Mechanical failing load(kN) Dry power frequency flashover voltage (kV) Wet power frequency flashover voltage Height (mm) Dia. (mm)
Vertical (kV) Horizontal (kV)
53-4 20 25 12 15 76 105






Ordering instructions:



1.If the insulator is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.

2.When the user has special requirements, the design can be carried out according to the user's requirements.





Competitive Advantage:



1. Our price are very competitive . At the same time , the product provide high quality character.

2. That is the reason why we export huge quantity such product to all over the word .

3. we also offer assembly instruction , if the end user has any question during using.

4. we will provide related instruction free of charge .
