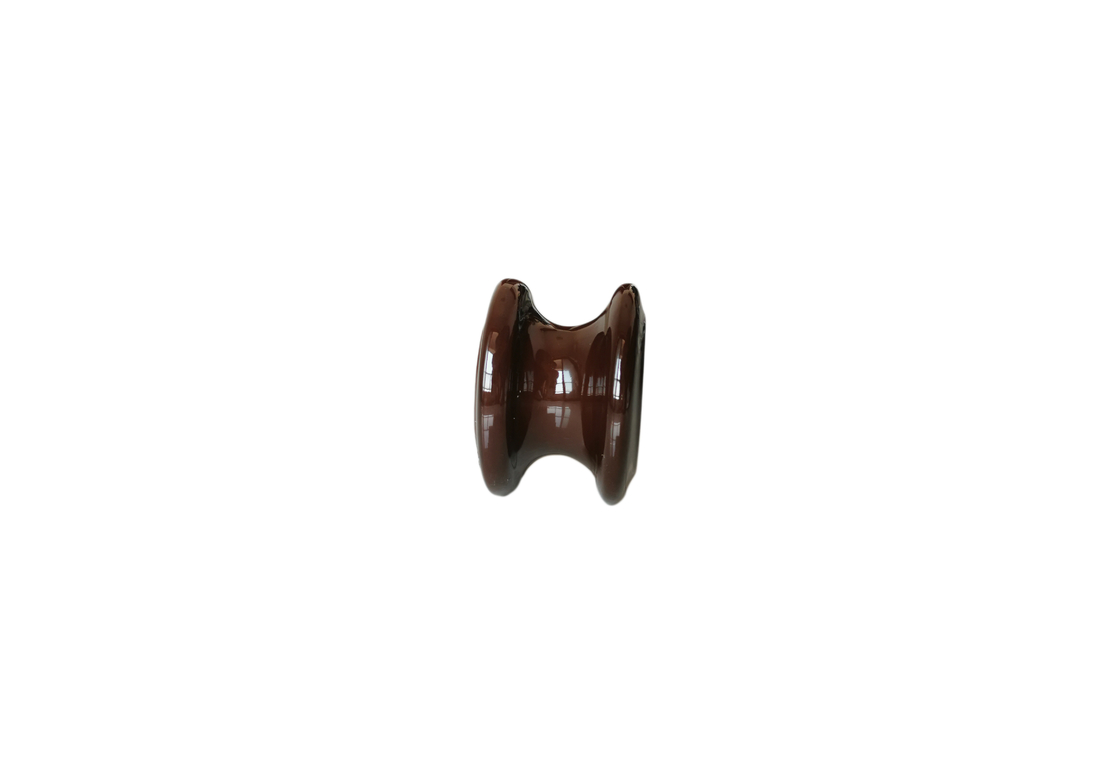

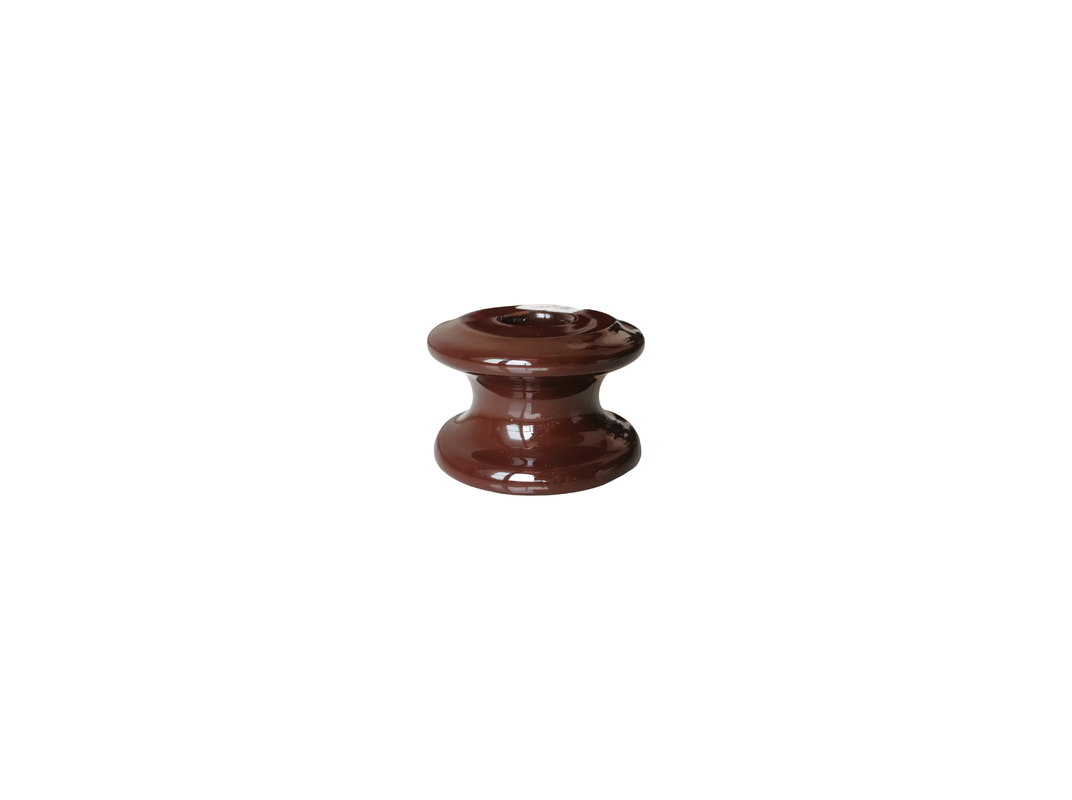

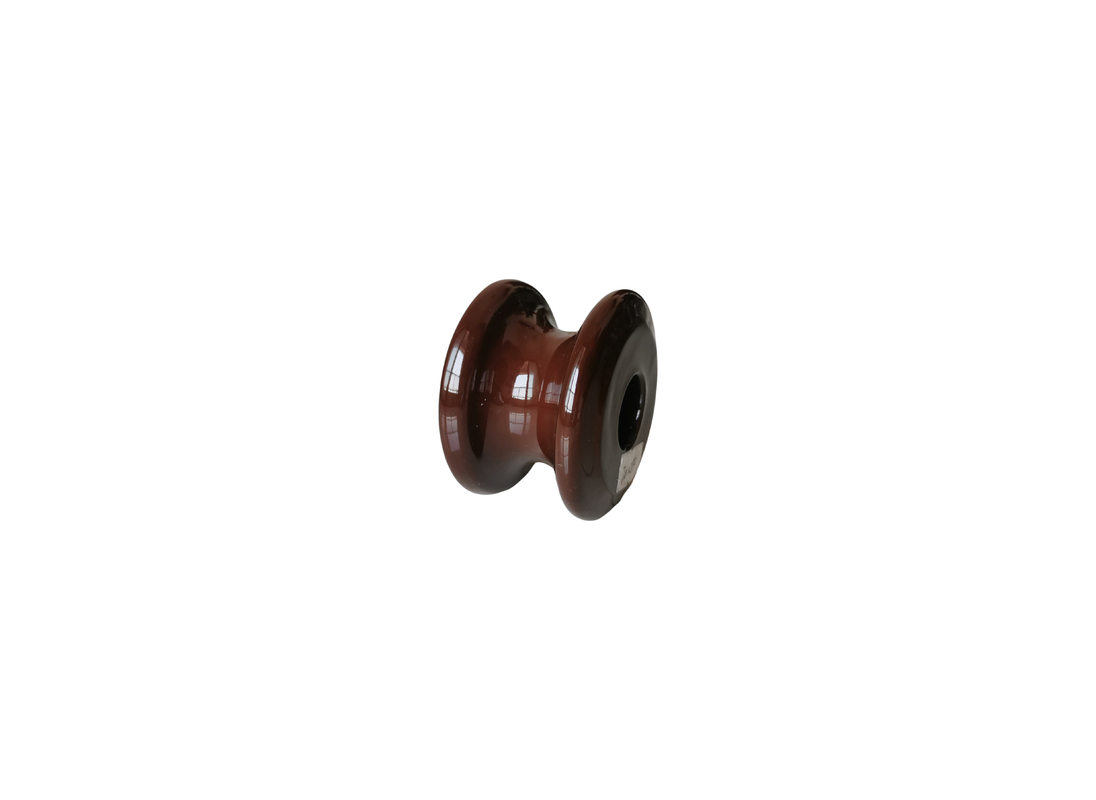

High Tensile 0.5kg 13kN Porcelain Spool Insulators

High Tensile 0.5kg 13kN Porcelain Spool Insulators

  • High Light

    13kN Porcelain Spool Insulators

    ,

    0.5kg Porcelain Spool Insulators

    ,

    13kN High Tensile Spool Insulators

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Product Name
    Stay Porcelain Insulator
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    53-2
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

High Tensile 0.5kg 13kN Porcelain Spool Insulators


Environmental pollution ANSI standard Porcelain Spool Insulators





Description:



ANSI CLASS Mechanical failing load(kN) Dry power frequency flashover voltage (kV) Wet power frequency flashover voltage Height (mm) Weight(kg)
Vertical (kV) Horizontal (kV)
53-2 13 25 12 15 76 0.5



1.Perfect electric performance.

2.High tensile & bending strength.

3.Electrical erosion resistance.

4.Strong anti-pollution falshover ability.

5.Good anti-vibration capability & anti-moisture capability.





Ordering instructions :

1.If the insulator is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.
2.When the user has special requirements, the design can be carried out according to the user's requirements.


Applications:

ANSI spool porcelain insulators are used for overhead transmission lines.


Features:

1.We promise the quality upto 2years assurance.
2.OEM avaliable.
3. With fully-fledged technology, placing orders in our factory is your best choice.
