Easy Maintenance OEM 8.9kN Transformer Lightning Arrester

Easy Maintenance OEM 8.9kN Transformer Lightning Arrester

  • High Light

    8.9kN Transformer Lightning Arrester

    ,

    OEM Transformer Lightning Arrester

    ,

    8.9kN Transformer Surge Arrester

  • Color
    Brown
  • Material
    Porcelain C-120
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    TR-210
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

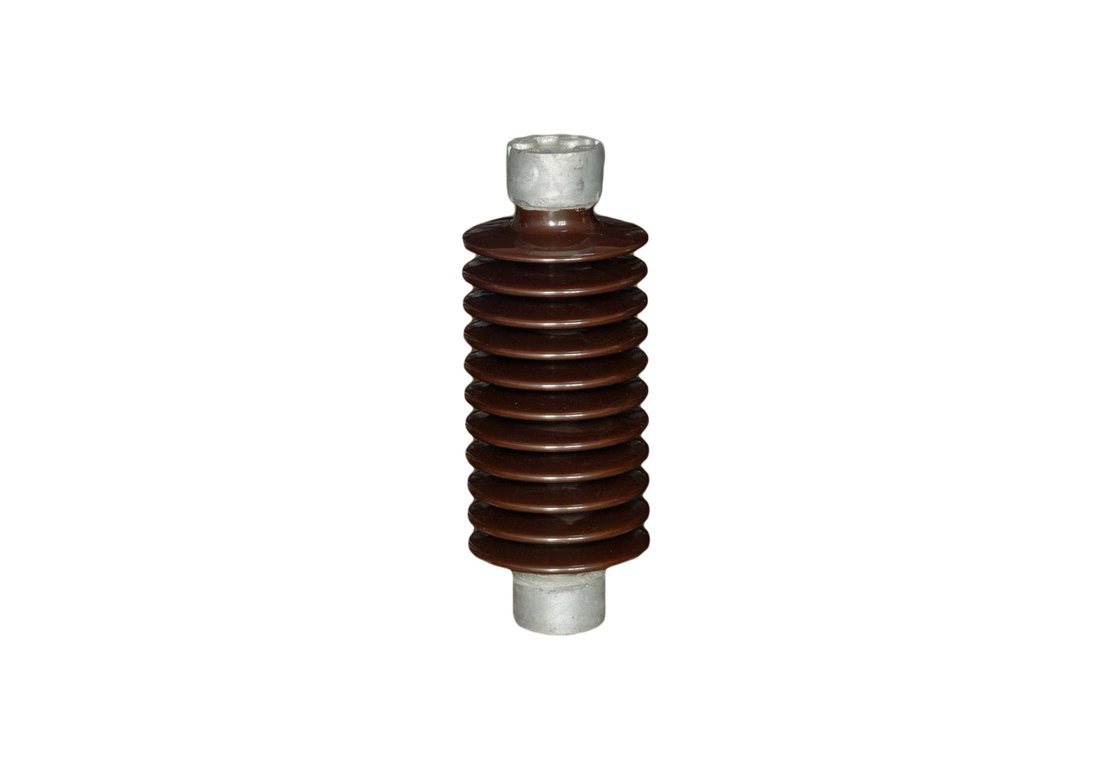

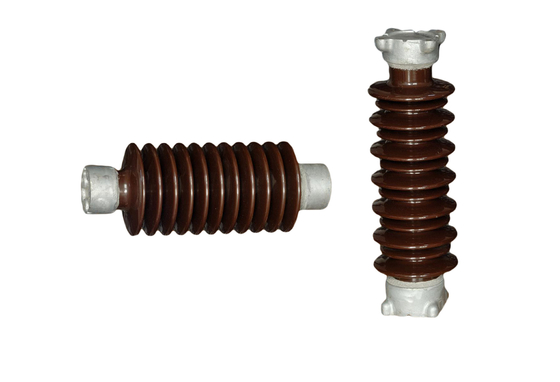

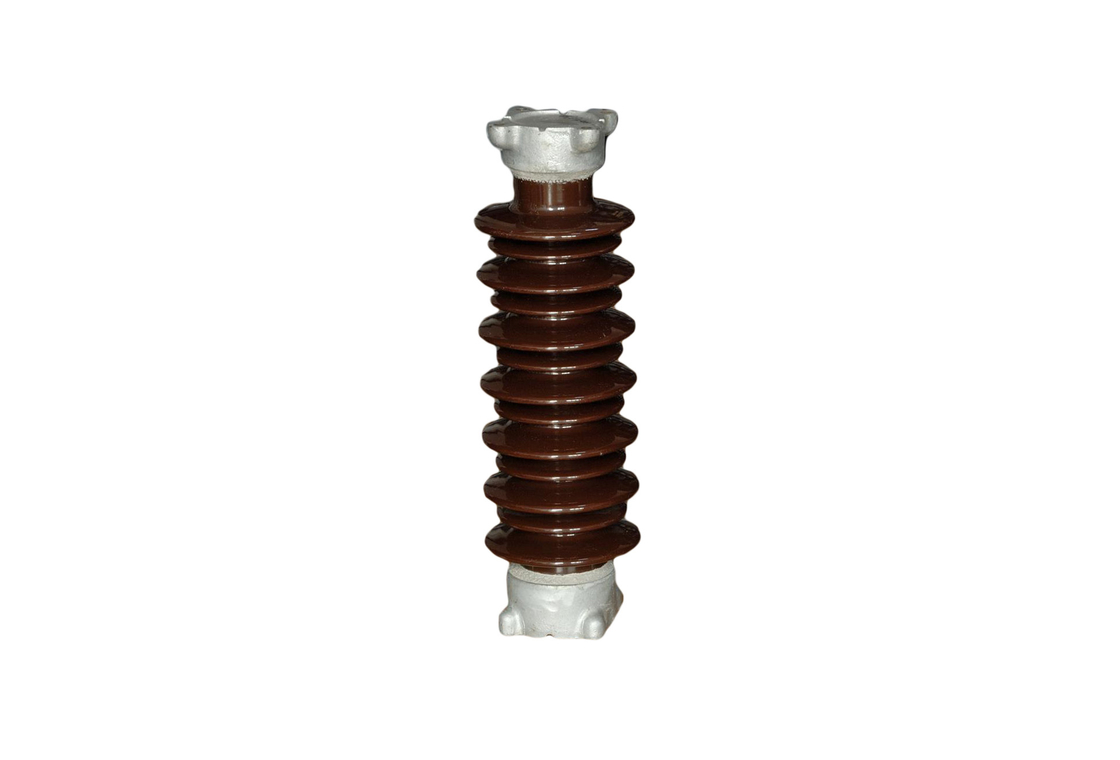

Easy Maintenance OEM 8.9kN Transformer Lightning Arrester



Easy Maintenance Lightning Arrester Insulator / OEM available / Brown color





Description:



As insulating and supporting conductor in HV transmission & distribution line, post insulators are divided into line post porcelain insulator, cross arm porcelain insulator and long rod suspension insulator, etc. This kind of insulator is safe and reliable in operation, simple in maintenance, long life in running and lower in price.





Specifications:



Technical Data Sheet
ANSI CLASS Creepage distance (mm) Torsion strength (N.m) cantilever strength (kN) Lower frequency flashover voltage Critical impulse flashover voltage Impulse withstand voltage (kV) Weight (kgs)
Dry(kV) Wet(kV) Positive (kV) Negative (kV)
TR-210 940 1400 8.9 145 100 225 290 200 16





Applications:



solid core station post insulator used for substations and electrical switch etc. The insulator can be used as vertical or inverted.





Competitive advantages:



1. High strength

2. Factory price and prompt delivery

3. High voltage application

4. Material : Porcelain

5. ANSI Approve
