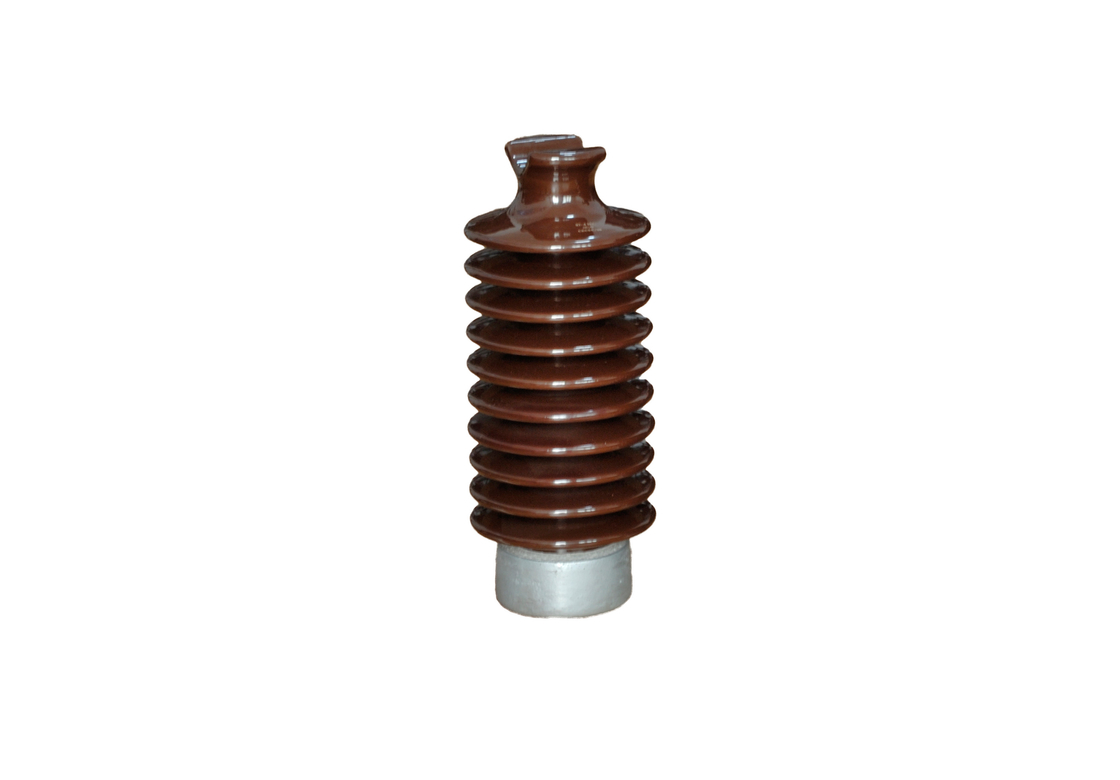

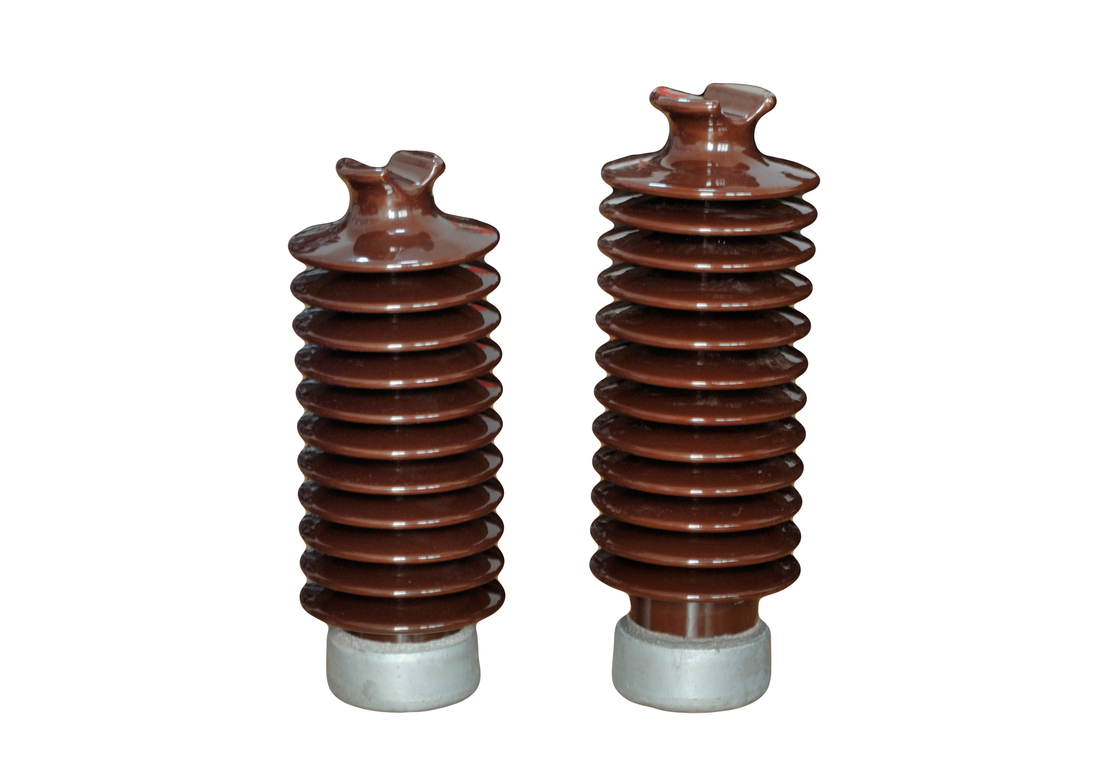

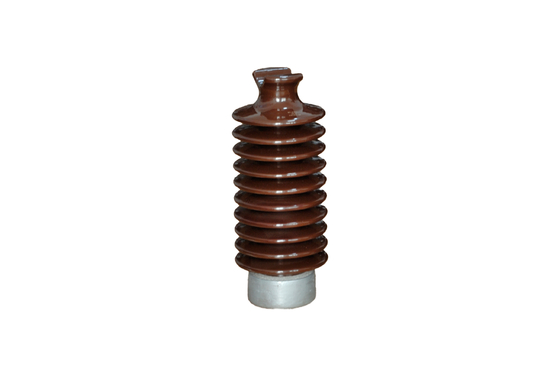

44kV ANSI 57-6 Porcelain Line Post Insulator For Distribution

44kV ANSI 57-6 Porcelain Line Post Insulator For Distribution

  • High Light

    ANSI 57-6 Porcelain Line Post Insulator

    ,

    44kV Porcelain Line Post Insulator

    ,

    ANSI 57-6 Porcelain Insulator For Distribution

  • Color
    Light Gray
  • Material
    Porcelain C-120
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    ANSI 57-6
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

44kV ANSI 57-6 Porcelain Line Post Insulator For Distribution



Self clean professional F neck ANSI standard Line Post Porcelain Insulator





Description:



Line post insulators have demonstrated reliable performance in various types of applications all over the world. Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation. Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.





Specifications:



ANSI CLASS Creepage distance (mm) Dry arcing distance (mm) cantilever strength (kN) Lower frequency flashover voltage Critical impulse flashover voltage Test voltage to ground (kV)
Dry(kV) Wet(kV) Positive(kV)
57-6 1364 489 12.5 180 150 300 44





Application:



Horizontal and gain-base line post insulators are often used in applications to avoid the need to install a cross-arm on the pole.





Competitive advantages:



1) Small size, light weight, easy to transport and install.

2) High mechanical strength, reliable structure, stable performance.

3) Excellent electrical performance and good stain resistance.

4) Good anti-brittle performance, shock-proof platform, no brittle failure.

5) Exchangeable, interchangeable with ceramic insulators.
