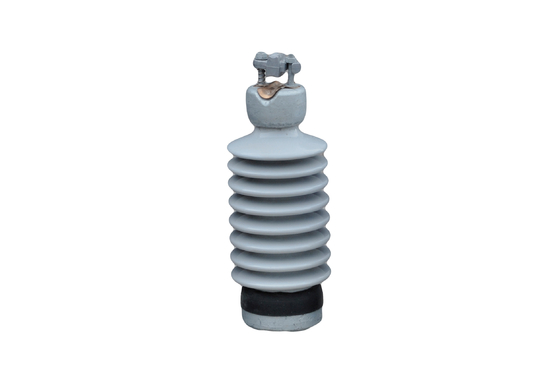

Metal Base 12.5kN ANSI 57-24 Porcelain Line Post Insulator

Metal Base 12.5kN ANSI 57-24 Porcelain Line Post Insulator

  • High Light

    ANSI 57-24 Porcelain Line Post Insulator

    ,

    12.5kN Porcelain Line Post Insulator

    ,

    ANSI 57-24 Metal Base Porcelain Insulator

  • Color
    Light Gray
  • Material
    Porcelain C-120
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    ANSI 57-24
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

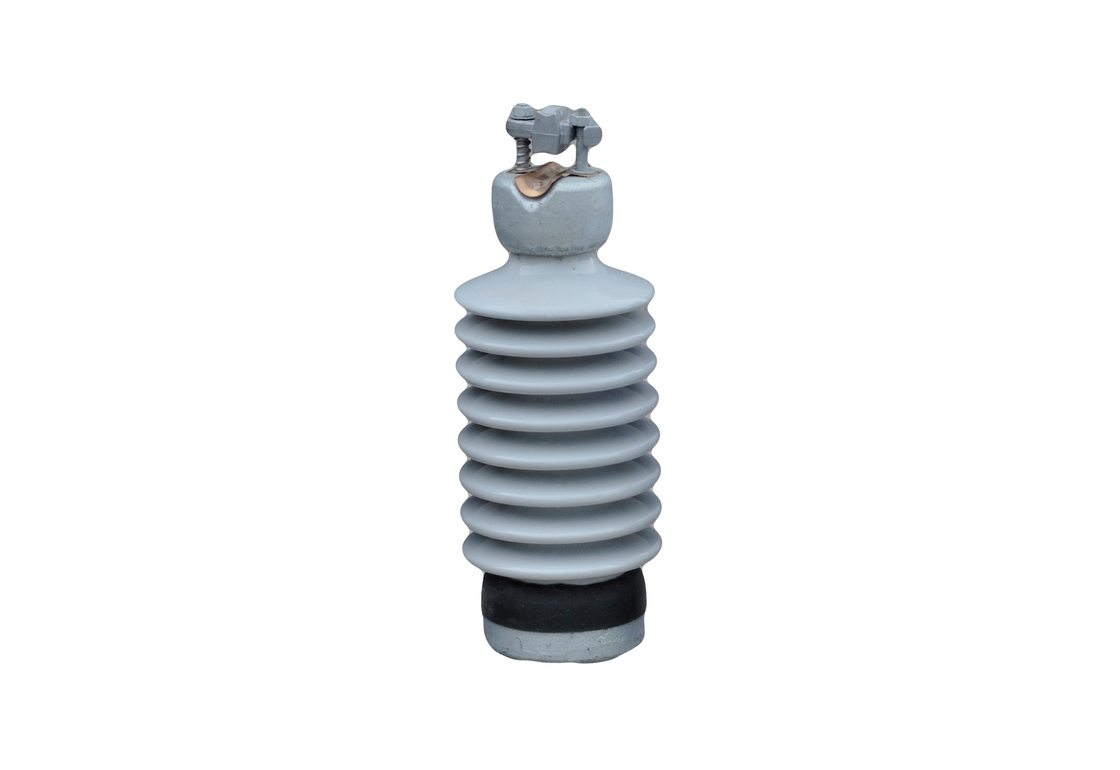

Metal Base 12.5kN ANSI 57-24 Porcelain Line Post Insulator



Overhead transmission line post porcelain insulator with Metal Base





Descriptions:



ANSI CLASS Creepage distance (mm) Dry arcing distance (mm) cantilever strength (kN) Lower frequency flashover voltage(kV) Critical impulse flashover voltage(kV) Test voltage to ground (kV)
Dry Wet Positive Negative
57-24 1015 368 12.5 140 110 230 340 44





As insulating and supporting conductor in HV transmission & distribution line, post insulators are divided into line post porcelain insulator, cross arm porcelain insulator and long rod suspension insulator, etc.





Features:



1. High strength

2. Competitive price and prompt delivery

3. High voltage application

4. Material : Porcelain

5. ANSI Approve





Competitive advantages:



1    1. Products are producd by ourselves, which ensures competitive prices, good profit margin and flexible services;

2. OEM & ODM services are acceptable and various styles, latest designs are recommended once in a while;

3. We have large market share home and abroad;

4. We have lots of experience in providing good service to retailers. We focus on electric products, marketing, services and logistics. It is an important manufacturer and export trader with several decades of experience in designing, researching, manufacturing, testing and logistics.
