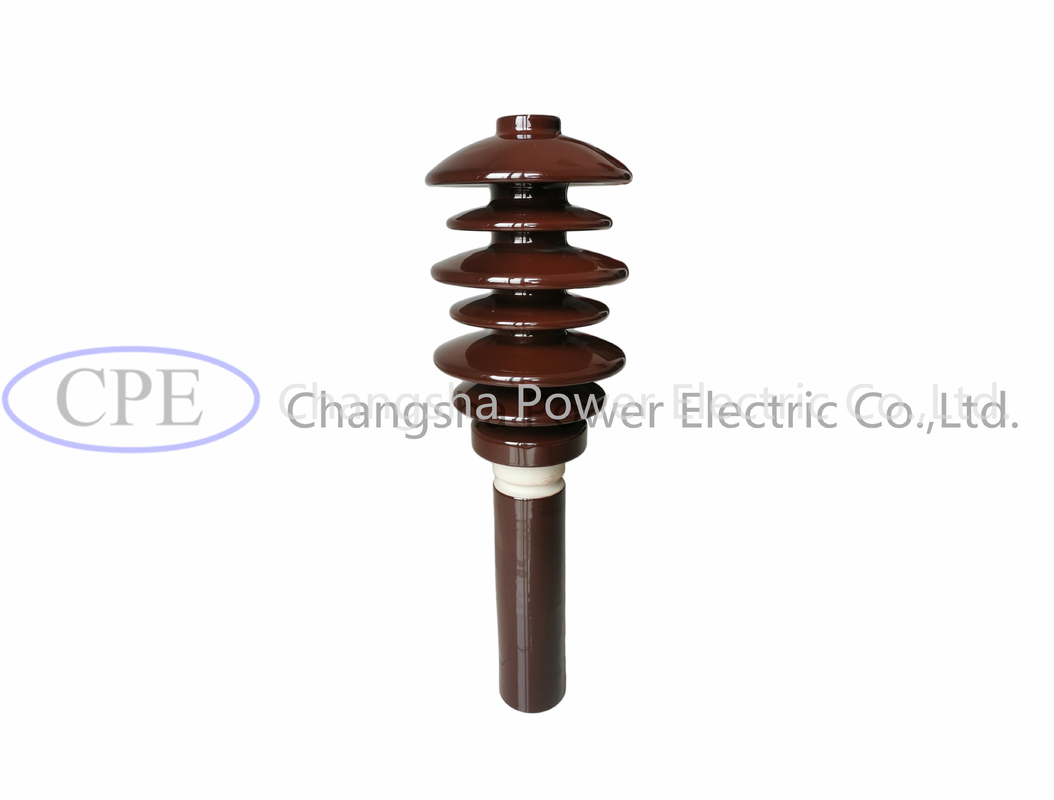

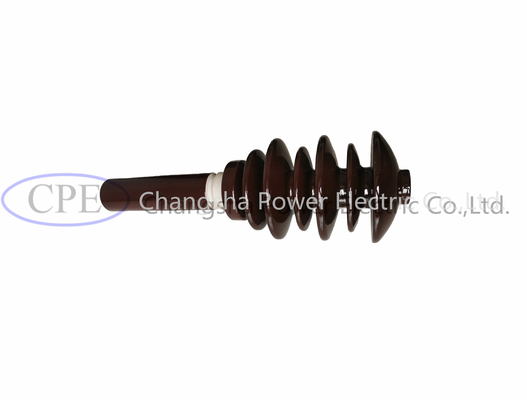

IEC standard High voltage oil type transformer Porcelain Bushing

IEC standard High voltage oil type transformer Porcelain Bushing

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    IEC
  • Product Name
    Transformer Porcelain Bushing
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    2530
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

IEC standard High voltage oil type transformer Porcelain Bushing


IEC standard High voltage oil type transformer Porcelain Bushing


Description:

Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current


Specifications:
IEC standard High voltage oil type transformer Porcelain Bushing 0


1. Glaze color: Brown unglazed part: —·—
2. Creepage distance: 600mm
3. Power frequency withstand voltage: 50kV
4. Lightning impulse withstand voltage: 125kV
5. Standard: EN50180

IEC standard High voltage oil type transformer Porcelain Bushing 1

IEC standard High voltage oil type transformer Porcelain Bushing 2IEC standard High voltage oil type transformer Porcelain Bushing 3



Competitive Advantages:

⒈We offer 1 year up to 2 years quality guarantee .
⒉The insulator have excellent mechanical performance.
⒊OEM design available upon customer’s requirement or special technical specifications.
