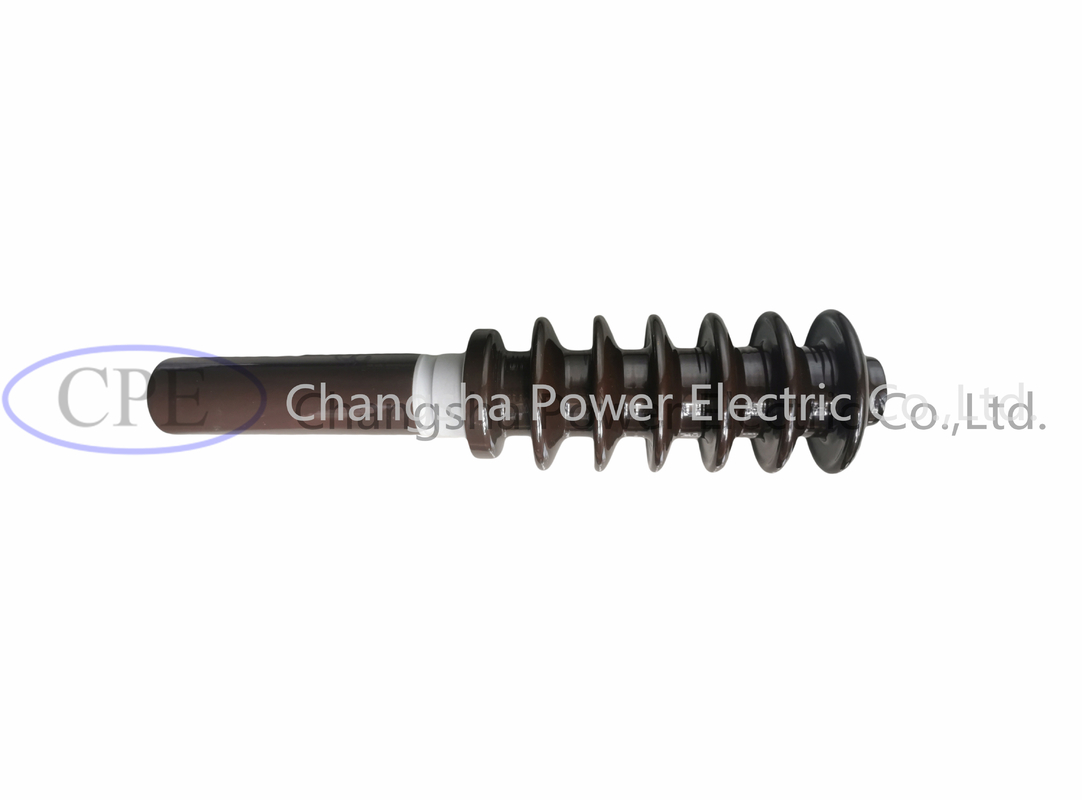

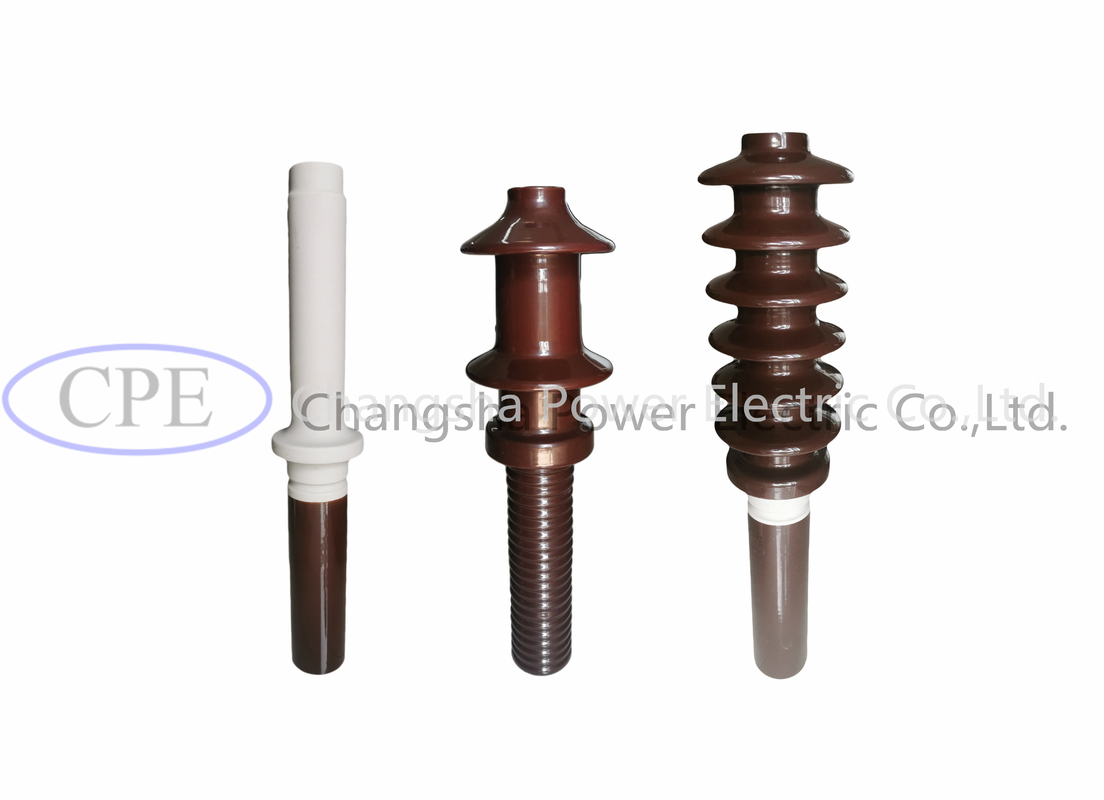

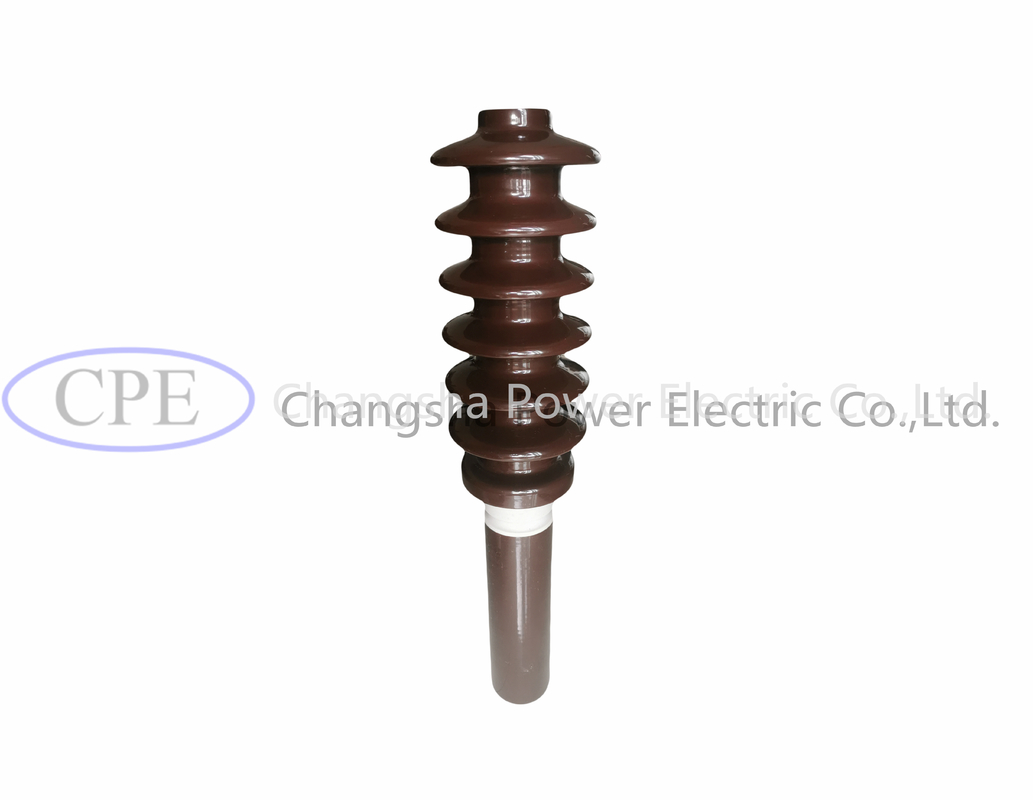

High voltage oil type 50180 P3 transformer bushing/Bright brown glaze
Description:
Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank,
not only as a lead to the ground insulation, but also bears the role of fixing the lead,
transformer bushing is one of the transformer current-carrying elements,
in the operation of the transformer, through the load current for a long time,
in the case of short circuit outside the transformer through the short circuit current.
Specifications:
1. Glaze color: Brown unglazed part: —·—
2. Creepage distance: 600mm
3. Power frequency withstand voltage: 50kV
4. Lightning impulse withstand voltage: 125kV
5. Standard: EN50180
Competitive Advantage:
⒈We offer 1 year up to 2 years quality guarantee .
⒉The insulator have excellent mechanical performance.
⒊OEM design available upon customer’s requirement or special technical specifications.
