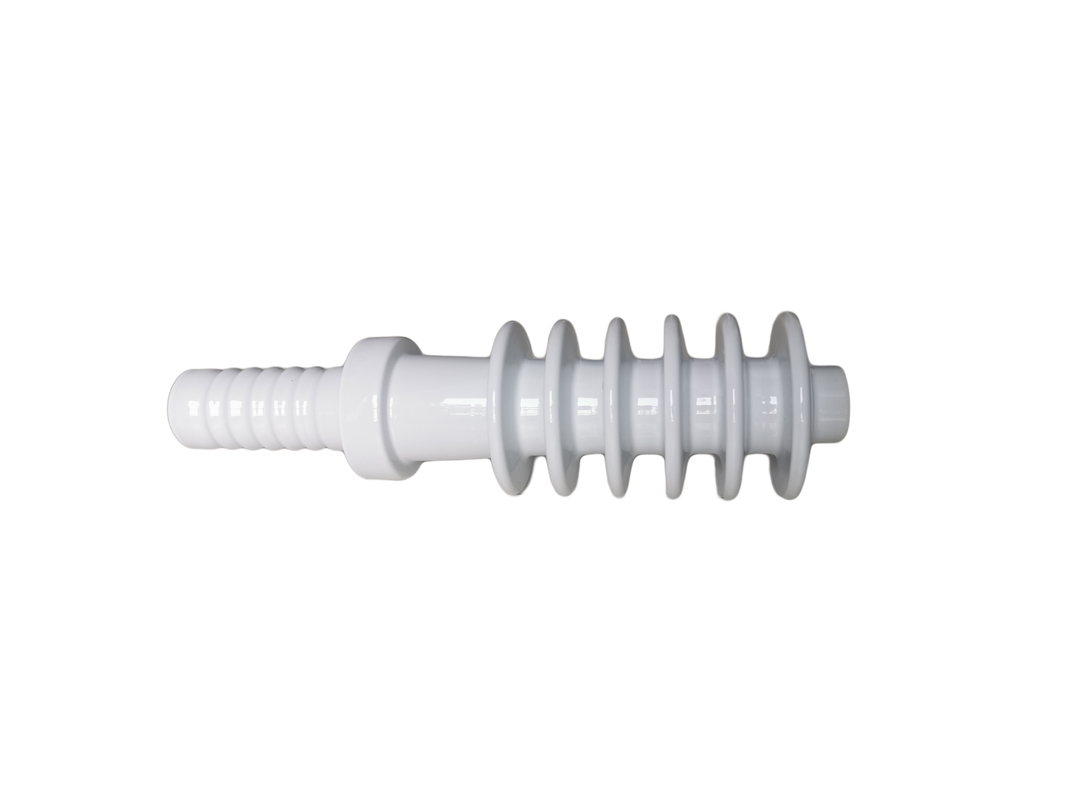

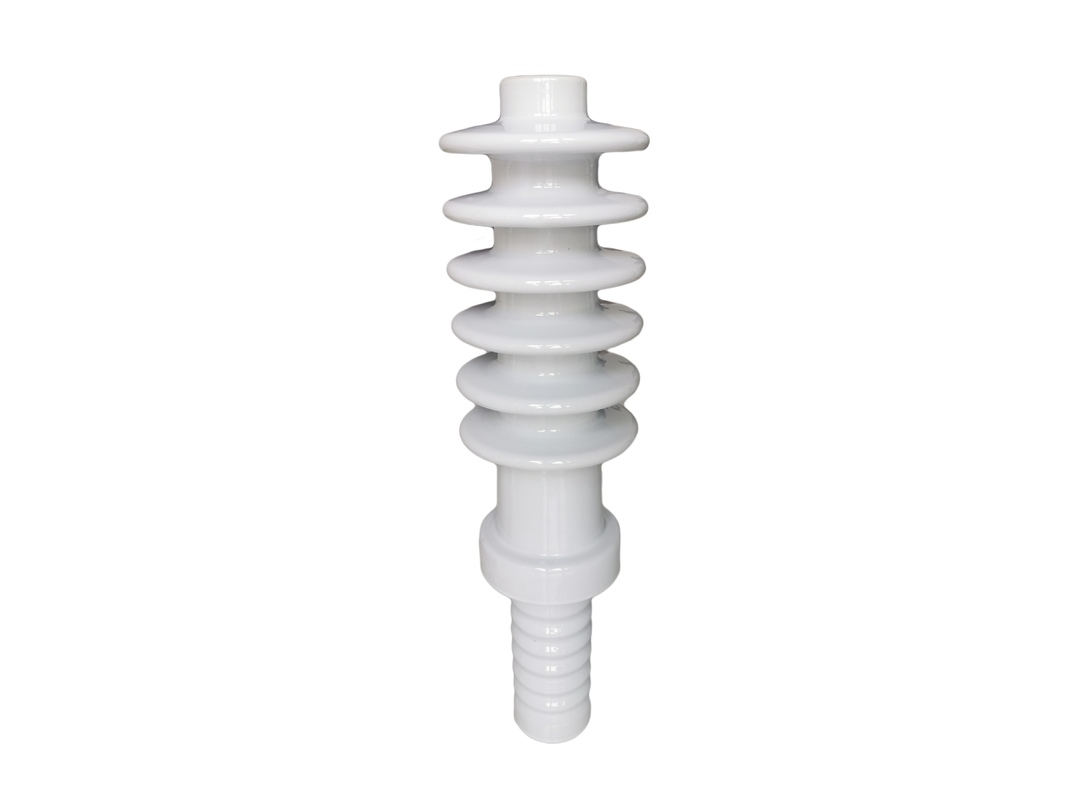

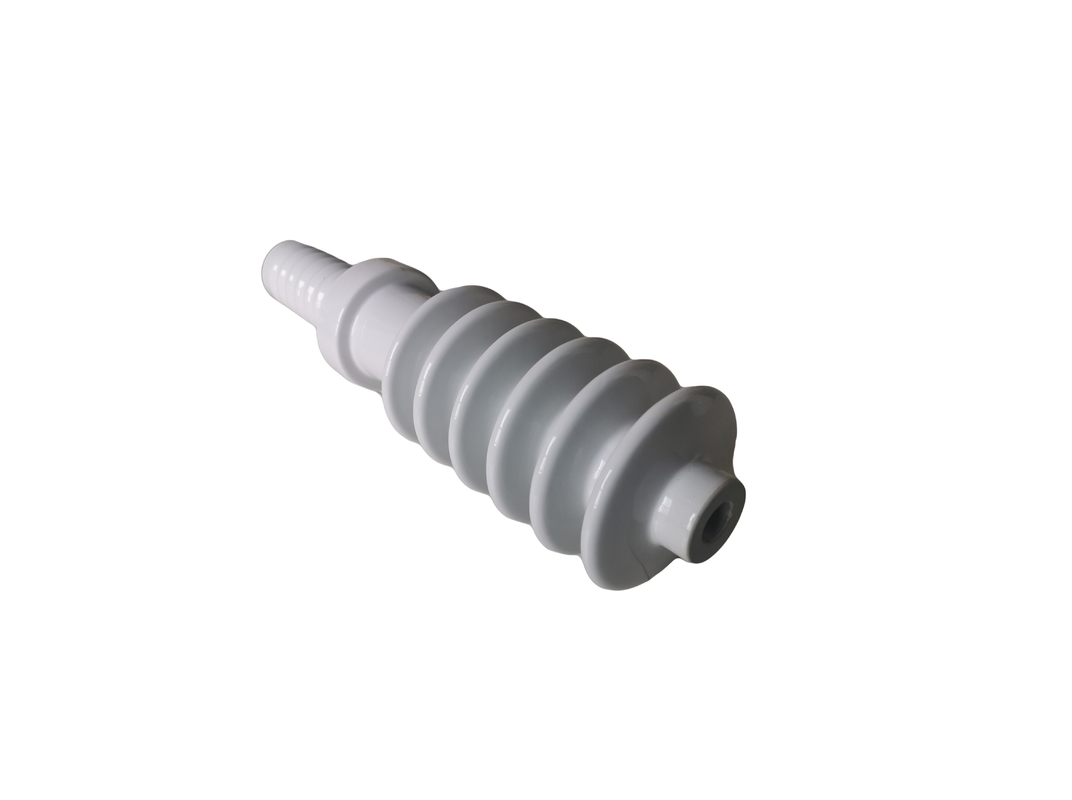

Easy Assembled OEM 36kV Transformer Porcelain Bushing

Easy Assembled OEM 36kV Transformer Porcelain Bushing

  • High Light

    36kV Transformer Porcelain Bushing

    ,

    OEM Transformer Porcelain Bushing

    ,

    36kV Easy Assembled Porcelain Bushing

  • Color
    White
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    IEC
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    36kV
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

Easy Assembled OEM 36kV Transformer Porcelain Bushing



Easy assembled Oil transformer porcelain bushing insulator / OEM available



Description:
IEC CLASS Height(mm) Shed dia.(mm) Creepage distance (mm) Power frequency withstand voltage(kV) Impulse withstand voltage(kV)
4001 471 120 645 60 20.3
Bushing insulator is used between the transformer rectifier and the discharge electrode suspension of an ESP for leading high voltage into the electric filed, functioning as insulating and supporting of the bus rod. By its own structure it is divided into two types: pure ceramic insulator and combined insulator.



Specifications:



1.Material:Electrical porcelain

2.Applied Standard: IEC,AS,BS,AN

3. Product can be Customized

4. Our bushing is applied for oil-immersed type transformer, enjoying good reputation among clients from different countries.





Applications:



Transformer bushing insulators are applied as a structure, carrying on conductor through a partition such as transformer tank and insulating it, incorporating the means of attached flange to the partition for medium voltage level.
