IEC CLASS | Height(mm) | Shed dia.(mm) | Flange dia. (mm) | Inner hole dia.(mm) |
10R-1320 | 742 | 185 | 162 | 43 |

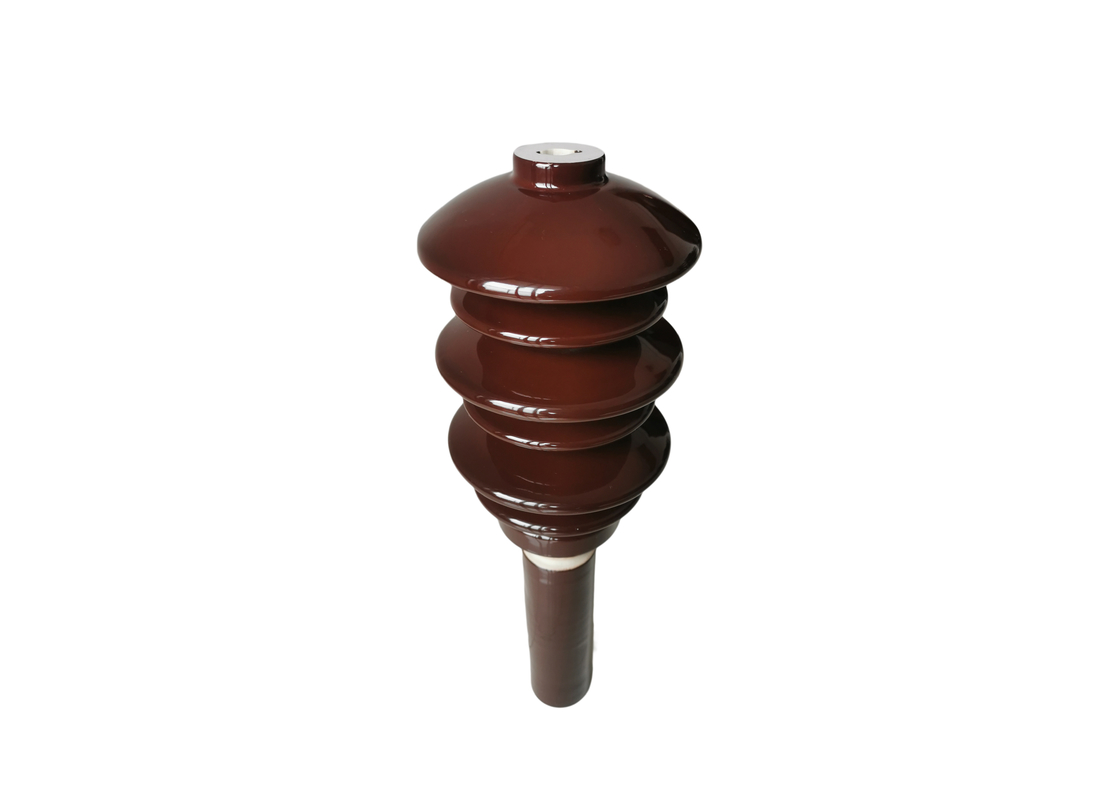

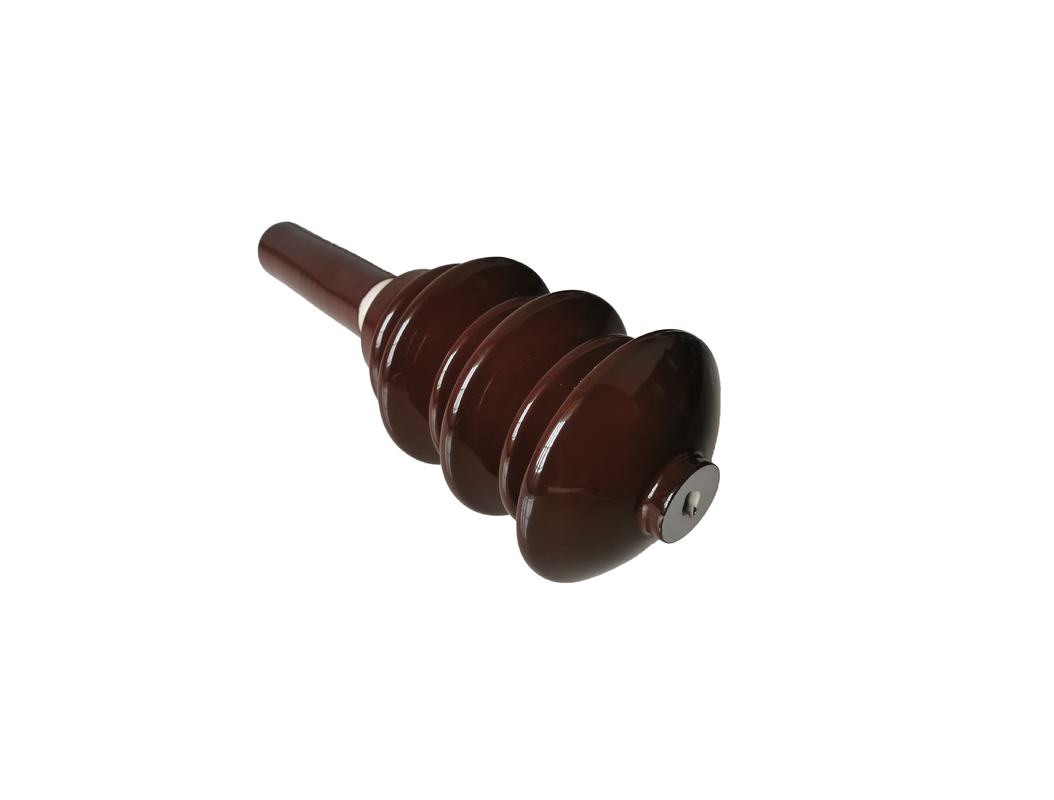

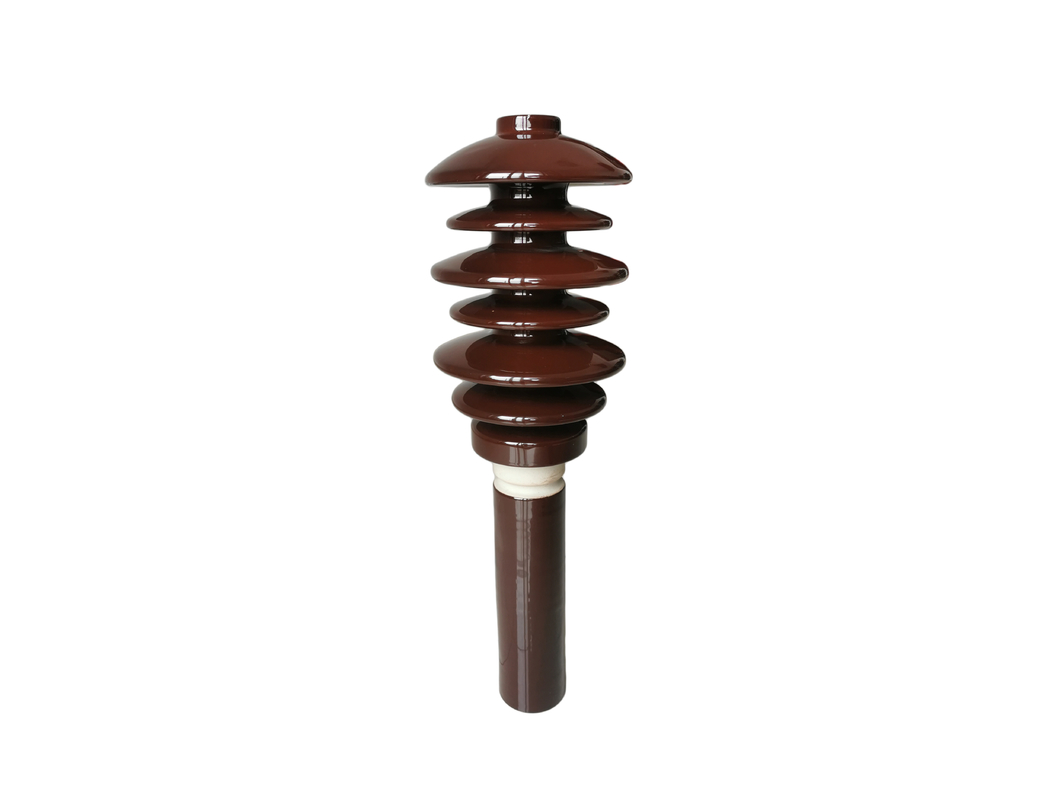

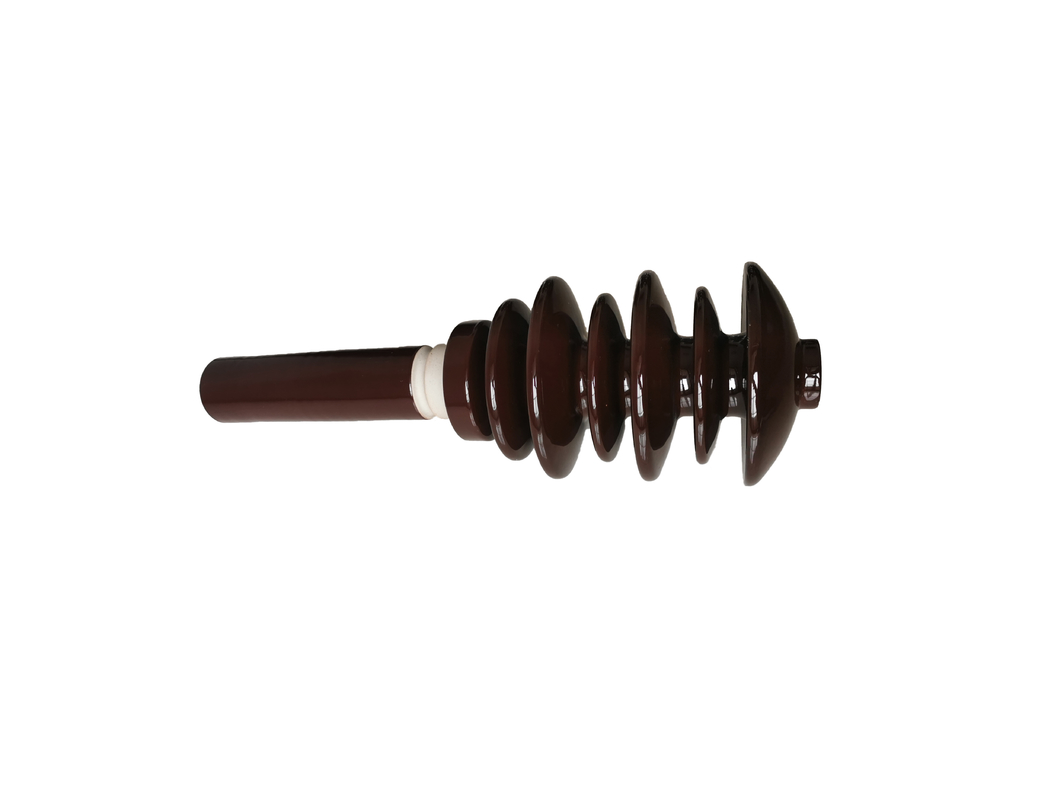

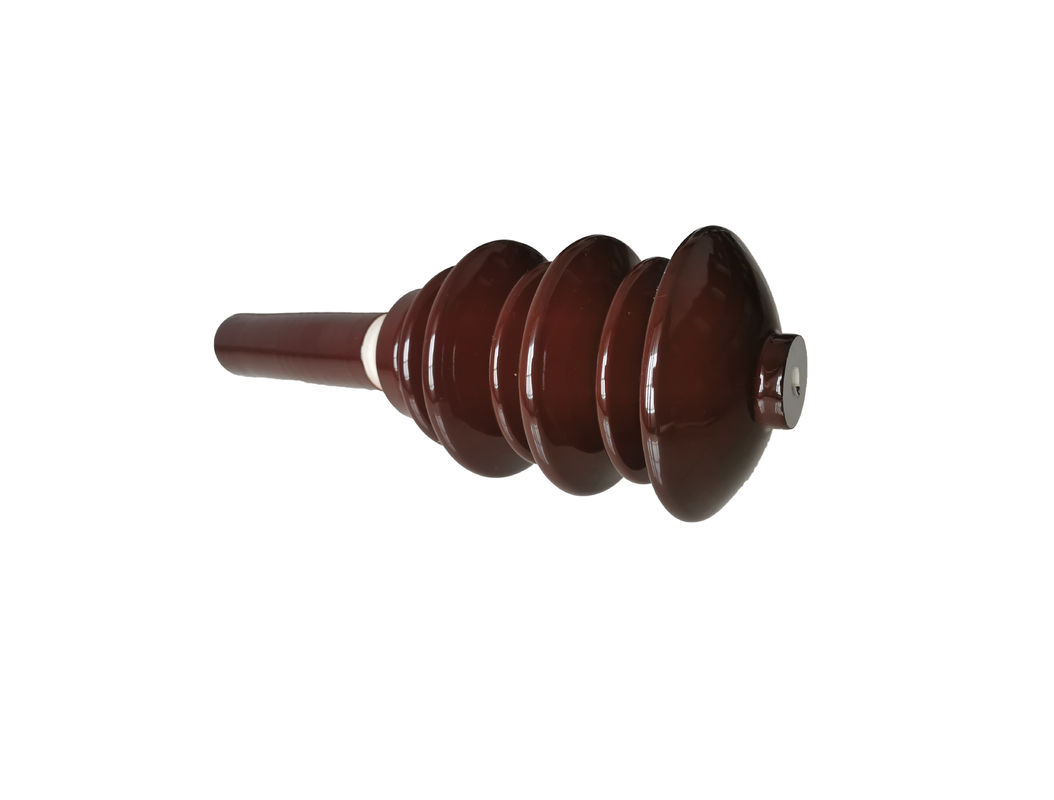

Anti-pollution type Transformer bushing insulators are applied as a structure, carrying on conductor through a partition such as transformer tank and insulating it, incorporating the means of attached flange to the partition for medium voltage level.
All Ares Insulator transformer bushing insulators are made of ceramic materials according to IEC 672. Other Transformer bushing custom-made insulators can be supplied upon customer's request and specifications.
Applications:
The transformer bushing is to lead the high and low voltage leads inside the transformer to the outside of the oil tank, not only as the lead to ground insulation, but also plays a role of fixing the lead.
