HV Height 580mm 150BIL Transformer Porcelain Bushing

HV Height 580mm 150BIL Transformer Porcelain Bushing

  • High Light

    150BIL Transformer Porcelain Bushing

    ,

    Height 580mm Transformer Porcelain Bushing

    ,

    150BIL HV Porcelain Bushing

  • Color
    Light Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Sample
    Provided
  • Oem
    YES
  • Size
    Customized Size
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    34.5kV
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

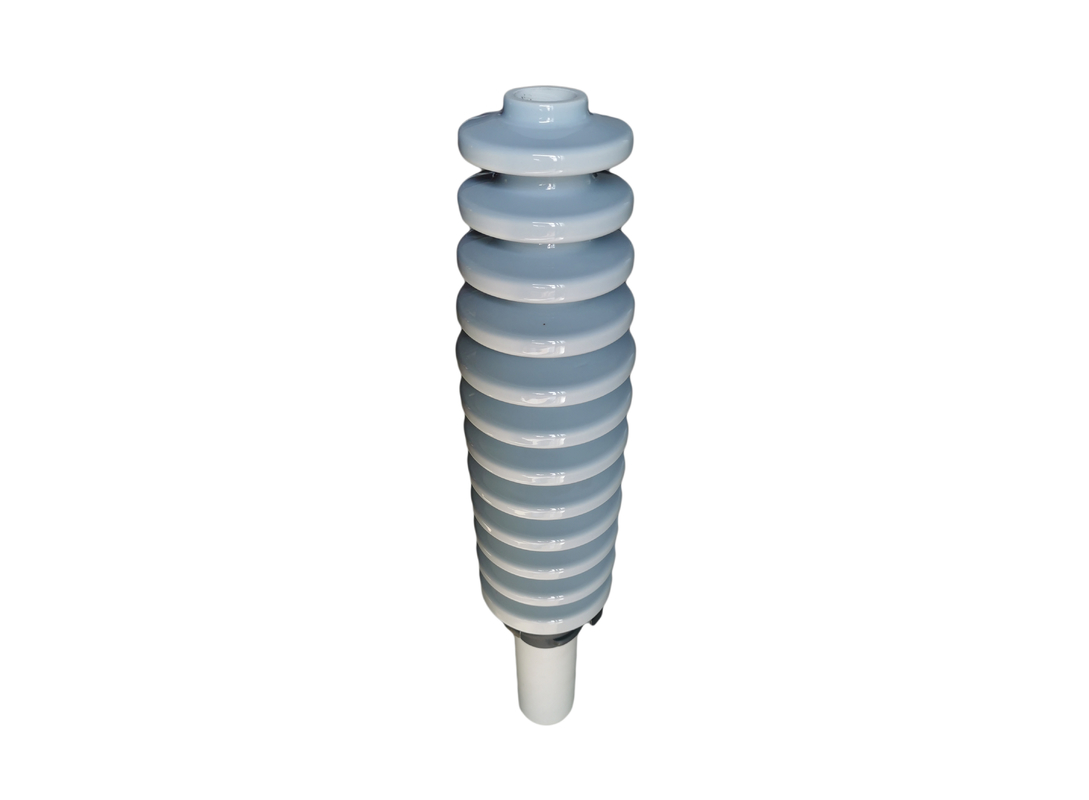

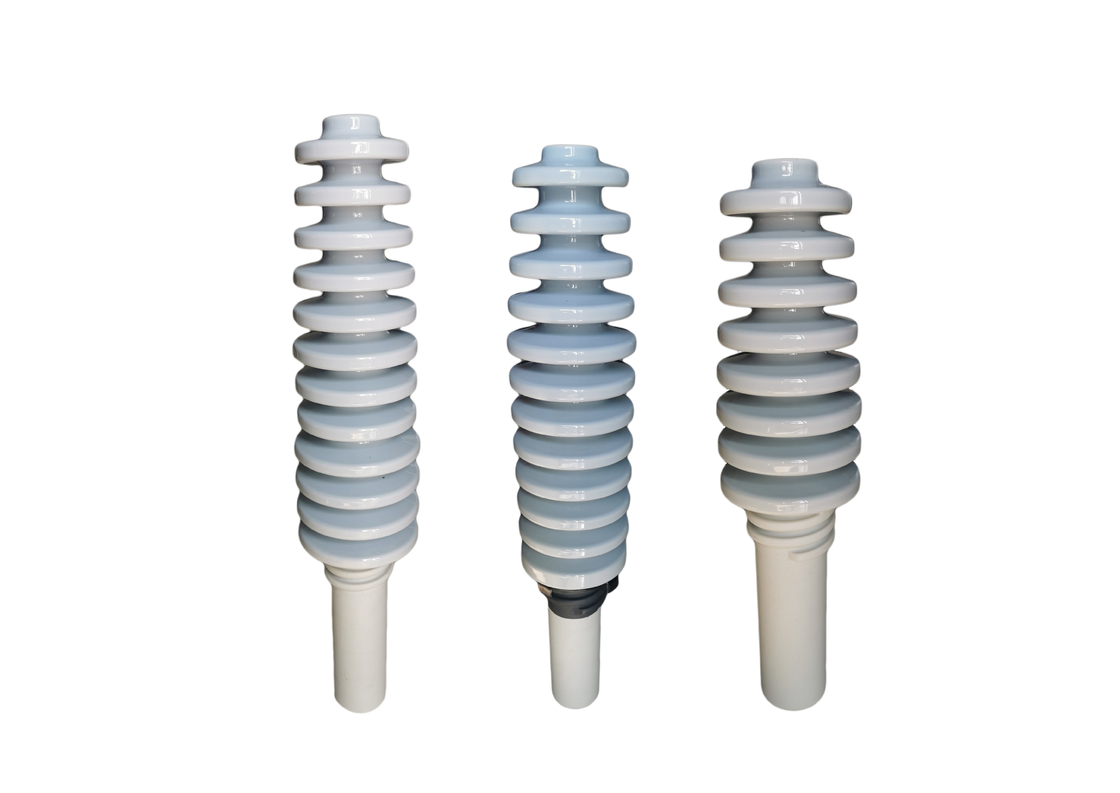

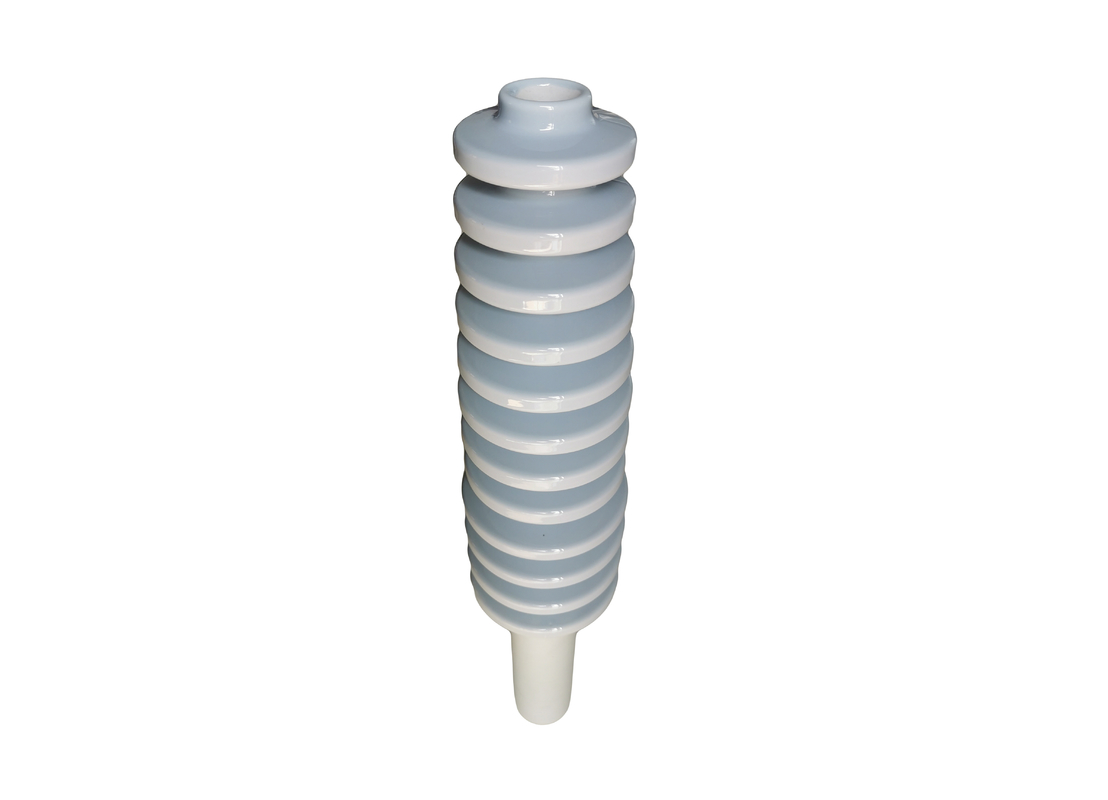

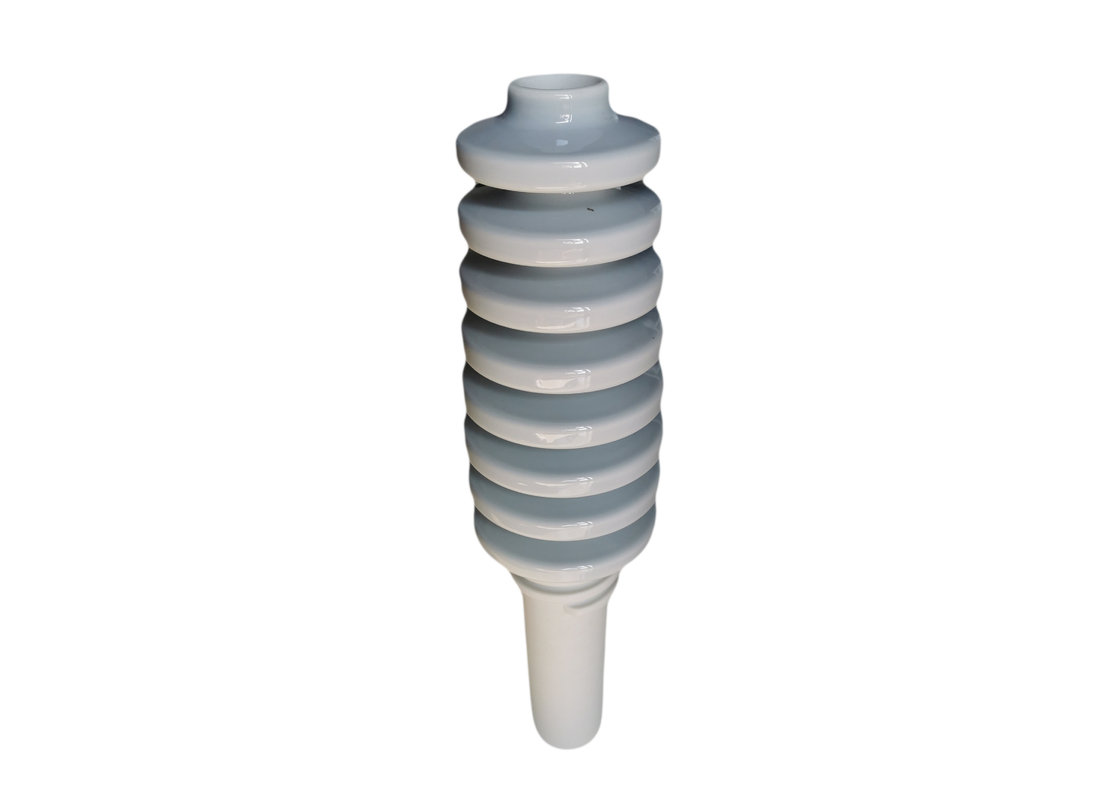

HV Height 580mm 150BIL Transformer Porcelain Bushing



American market used HV Transformer Porcelain Bushing light gray color





Description:

ANSI CLASS Height(mm) Creepage distance (mm) Dry arcing distance (mm) BIL(kV) Torsion strength (N.m)
34.5kV 580 785 350 150 20.3

Porcelain insulators acc. To IEC, ANSI and customer standards are produced with cylindrical, conical or straight inner and outer appearance up to a maximum length of 2800mm in one piece. These insulator types are produced to withstand high mechanical forces such as inner pressure and cantilever.





Applications:



​The bushings are used for oil type distribution transformer.





Competitive Advantages:



We offer 2-3 years quality guarantee.

Bushings have excellent performance due to many years' exporting experience.

OEM design available upon customer’s requirement or special technical specifications.
