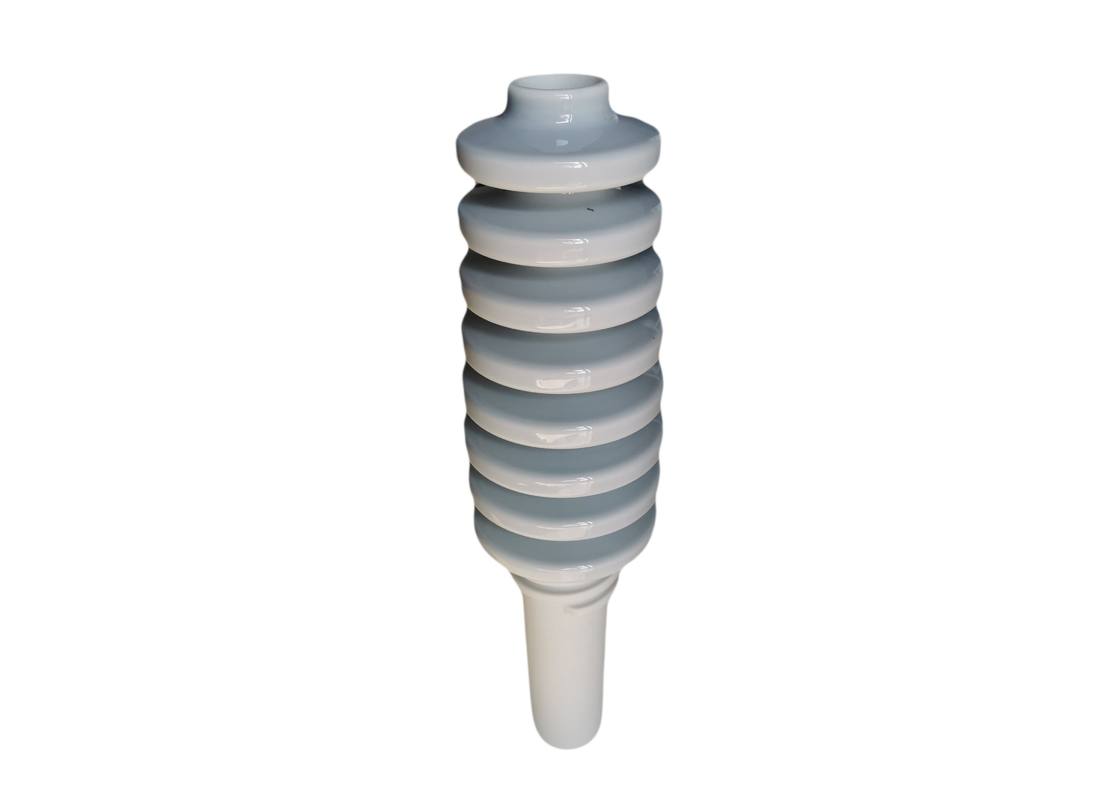

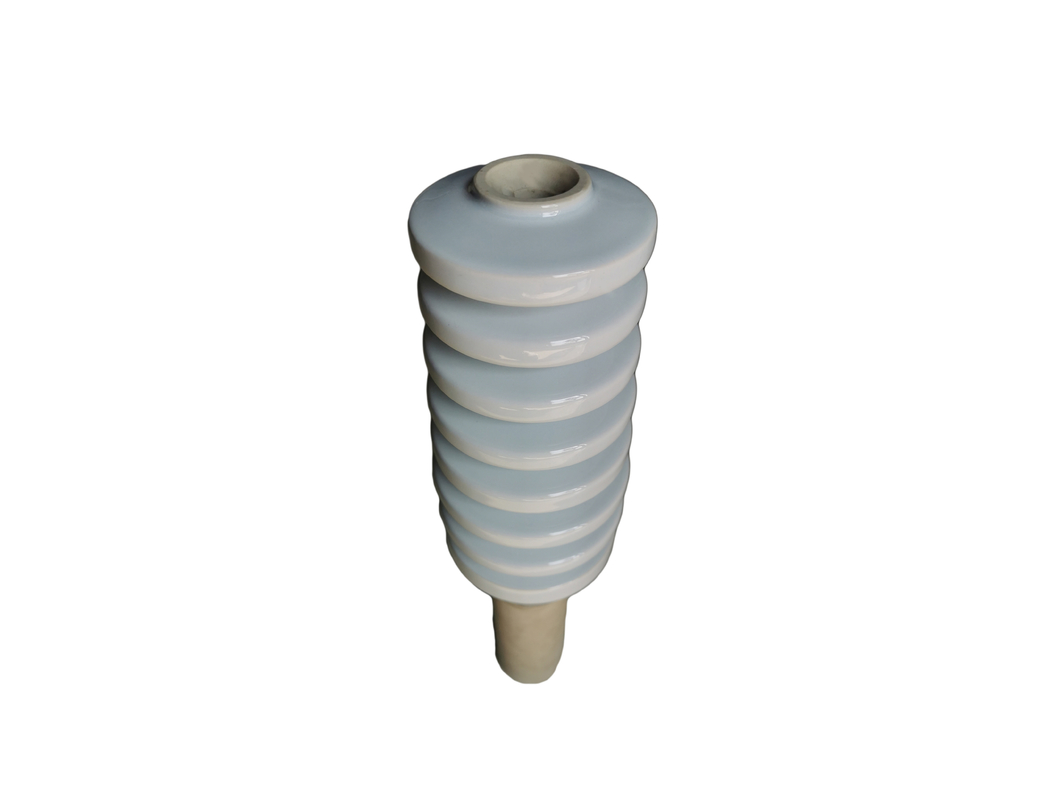

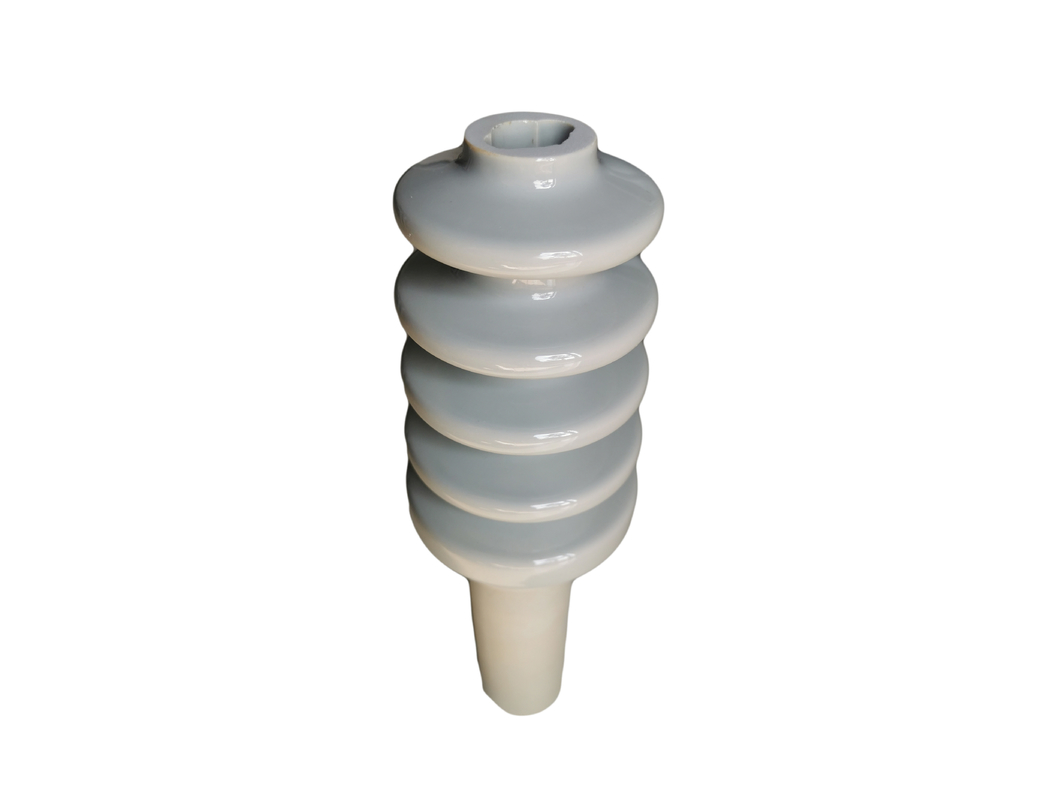

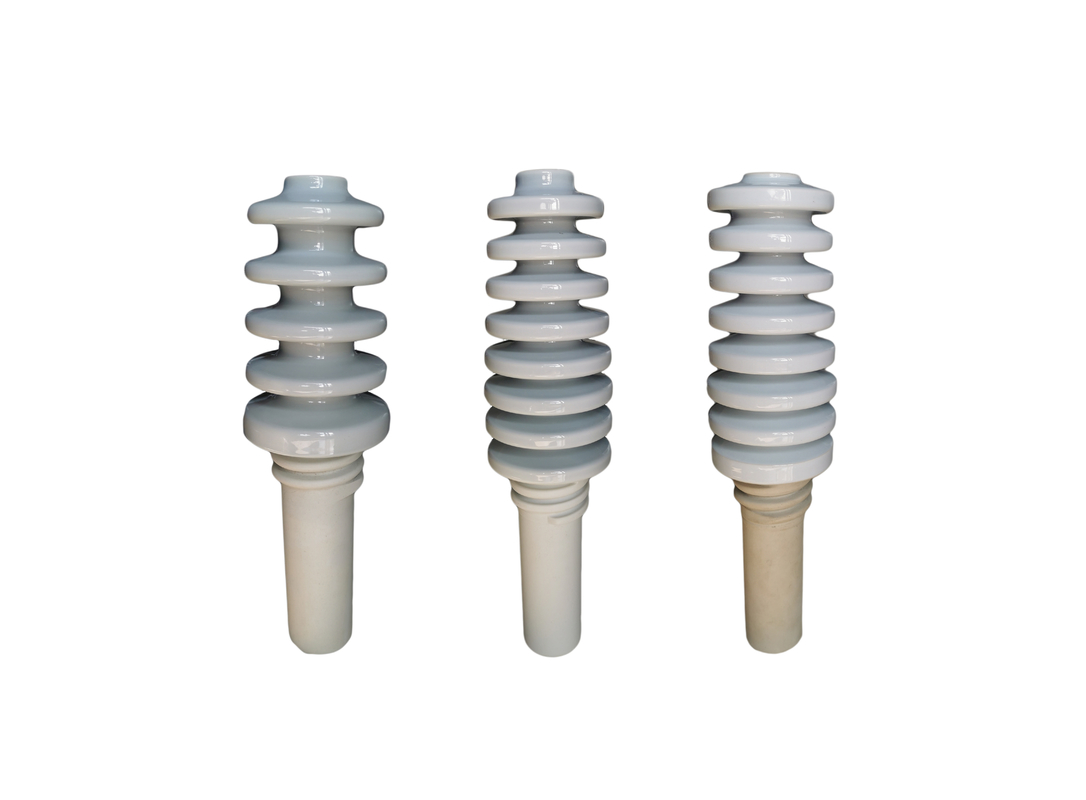

Light Gray ANSI 18kV Transformer Porcelain Bushing

Light Gray ANSI 18kV Transformer Porcelain Bushing

  • High Light

    18kV Transformer Porcelain Bushing

    ,

    ANSI Transformer Porcelain Bushing

    ,

    18kV Light Gray Porcelain Bushing

  • Color
    Light Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Sample
    Provided
  • Oem
    YES
  • Size
    Customized Size
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    15kV
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN PALLET
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

Light Gray ANSI 18kV Transformer Porcelain Bushing



ANSI 15kV Electric Transformer Porcelain Bushing in light gray color





Description:

ANSI CLASS Height(mm) Creepage distance (mm) Dry arcing distance (mm) BIL(kV) Torsion strength (N.m)
15kV 338 280 160 95 20.3

The hollow insulator, porcelain bushings are used extensively in electrical apparatus. Porcelain bushing is the device that enables one or several conductors to pass through a partition such as a wall or tank and insulates the conductors from it. The means of attachment to the partition, such as flange or other fixing device, forms part of the ceramic/porcelain bushing.





Applications:



The bushings are used for oil type distribution transformer.





Ordering instructions:



If the transformer bushing is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.

When the user has special requirements, the design can be carried out according to the user's requirements.





Competitive Advantage:



We offer 1 year quality guarantee.

Bushings have excellent performance due to many years' exporting experience.

OEM design available upon customer’s requirement or special technical specifications.

we offer 2 years quality guarantee after shipment .

The porcelain glaze are smooth and shinning , it is easy for maintenance .
