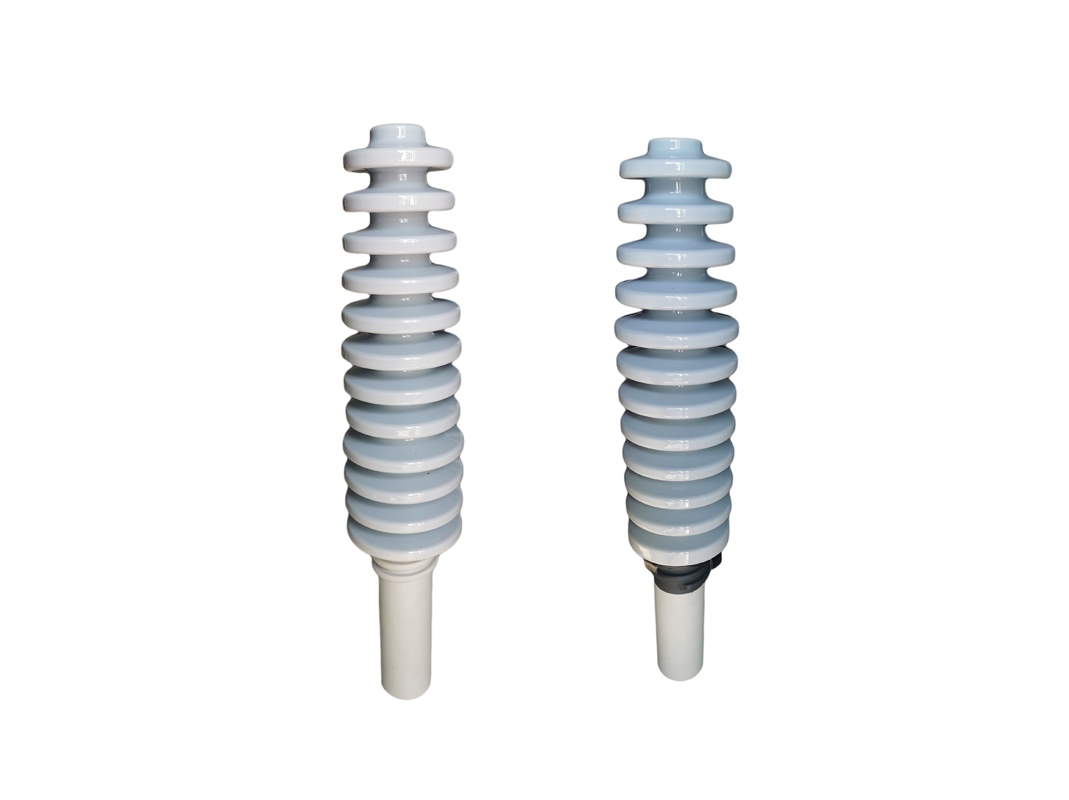

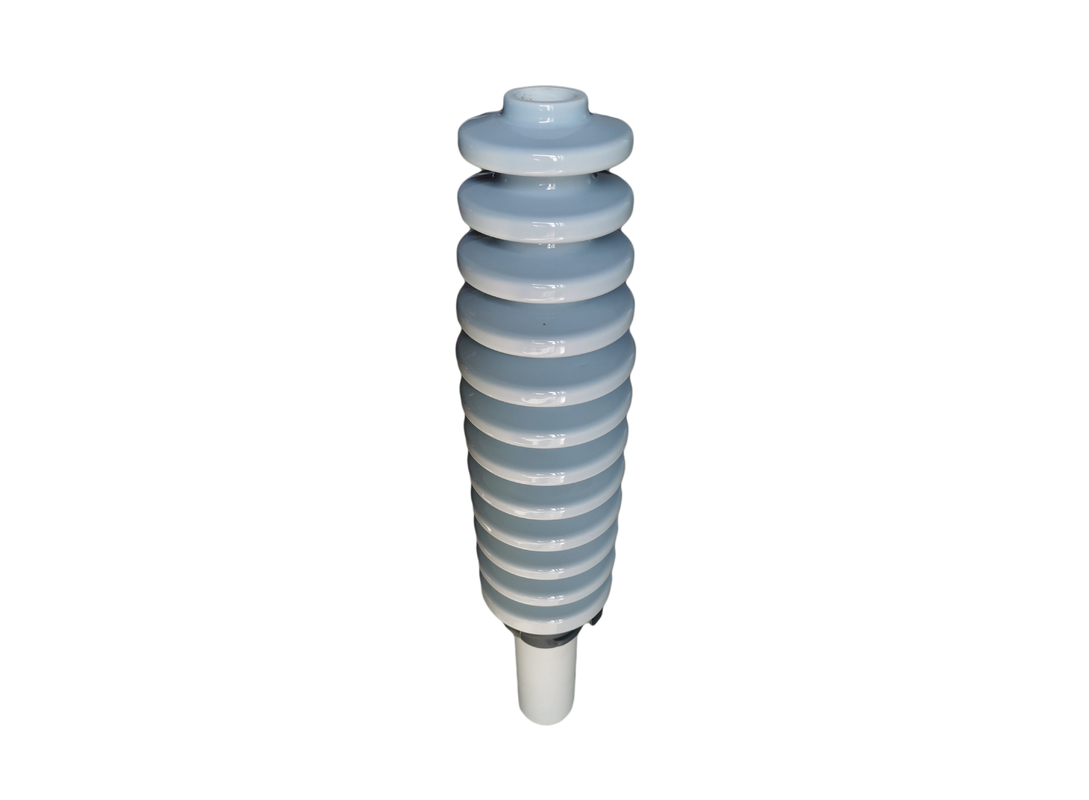

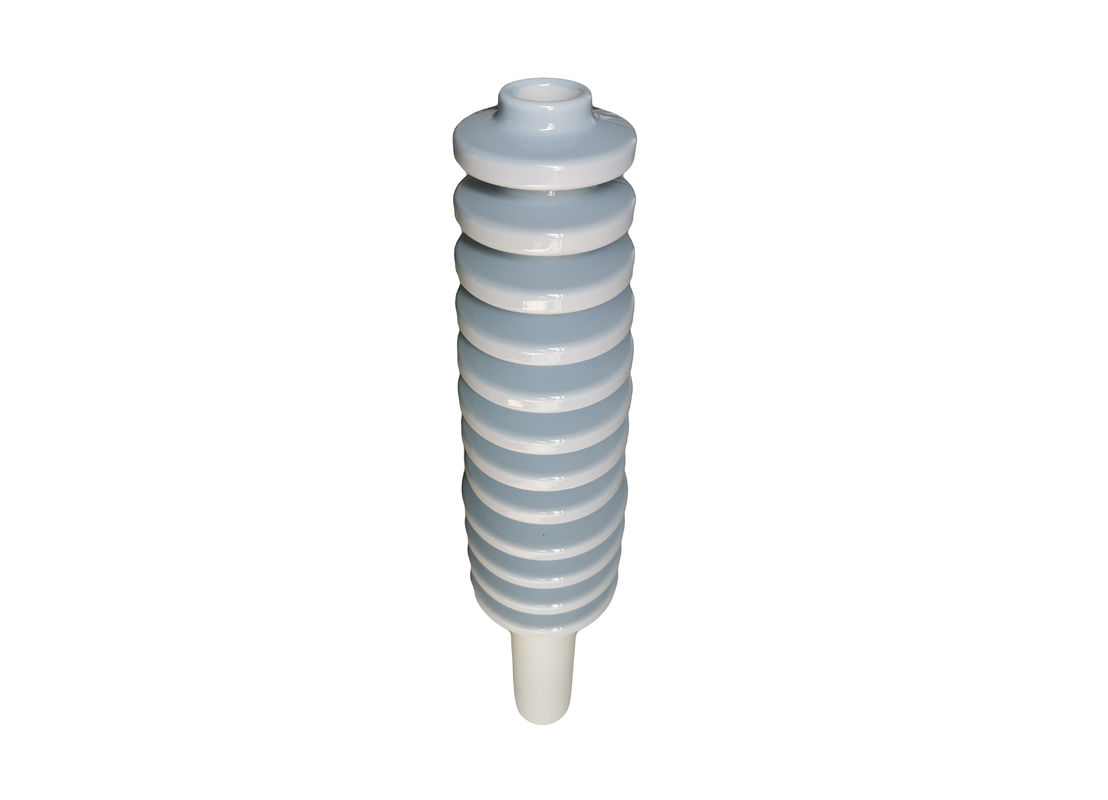

ANSI 34.5kV transformer porcelain bushing for US market / OEM available
Description:
| ANSI CLASS | Height(mm) | Creepage distance (mm) | Dry arcing distance (mm) | BIL(kV) | Torsion strength (N.m) |
| 34.5kV | 740 | 1054 | 467 | 200 | 20.3 |
ANSI thread transformer bushing is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.
Applications:
The bushings are used for oil type distribution transformer.
Features:
Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.
Competitive Advantage:
We offer 2-3 years quality guarantee.
Bushings have excellent performance due to many years' exporting experience.
OEM design available upon customer’s requirement or special technical specifications.
we can design similar type of insulators based on customer's requirement.
Our products are sold all over the world, you can rest assured.
