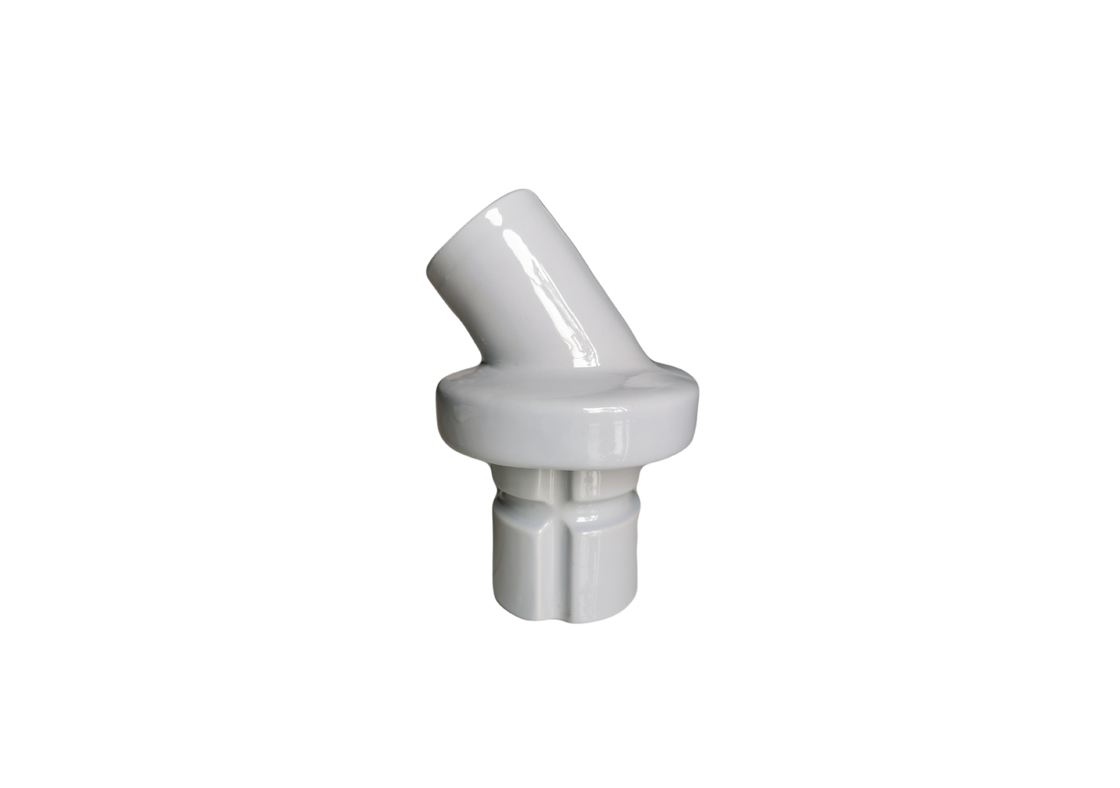

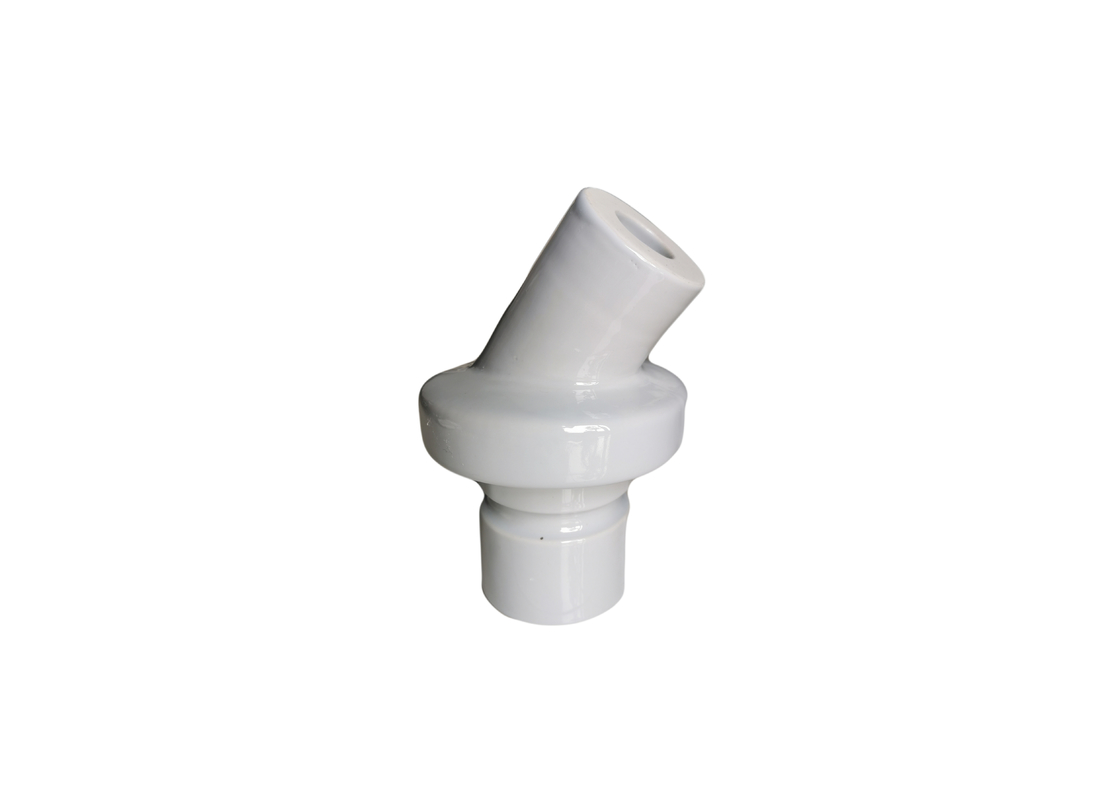

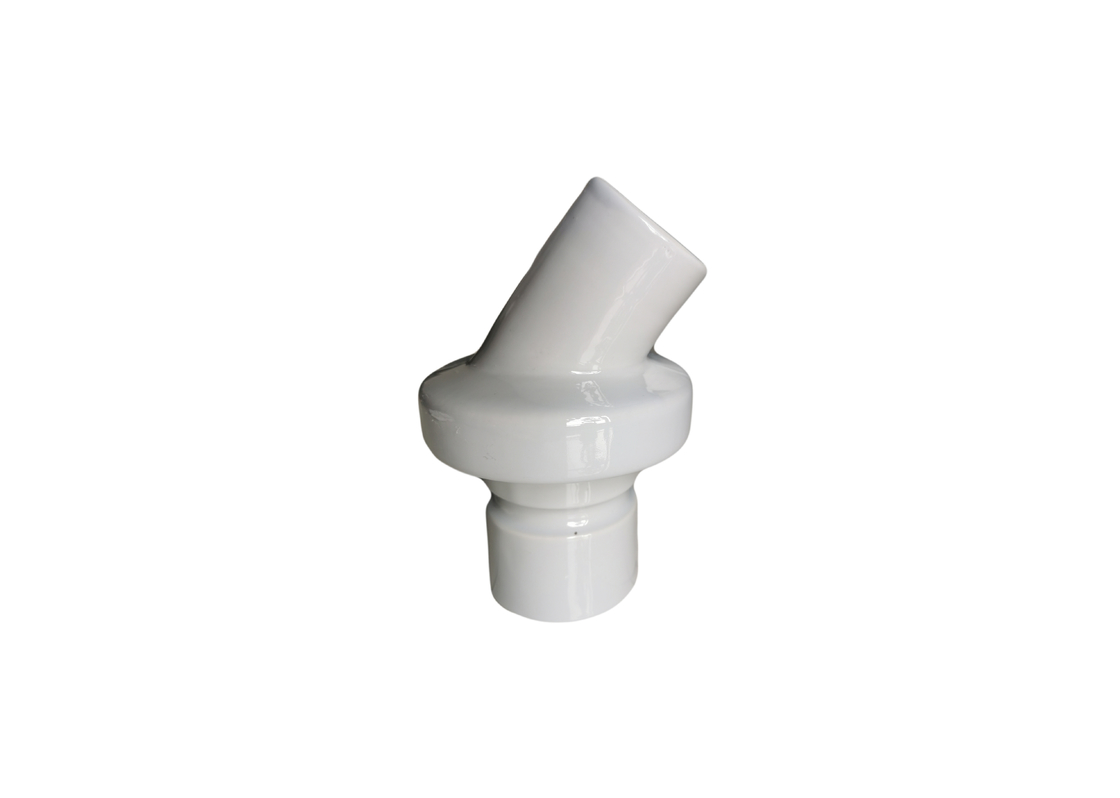

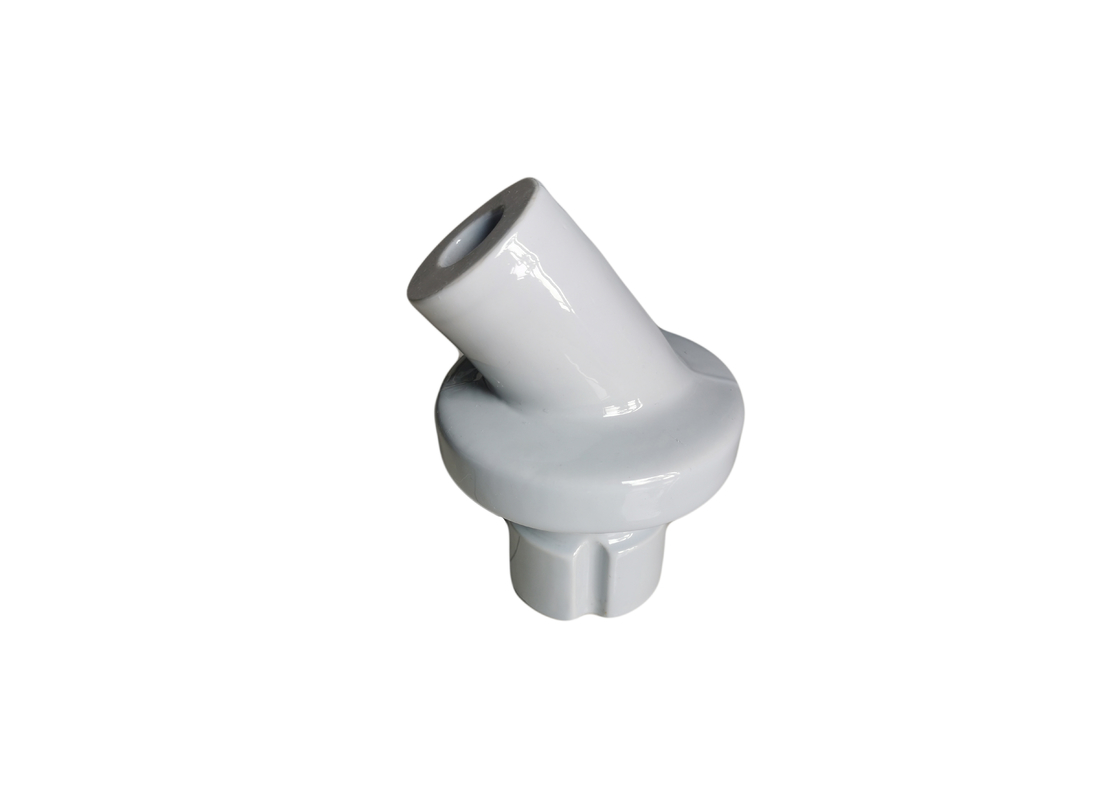

Customerized special transformer porcelain bushing / bright light gray
Description:
| IEC CLASS |
Upper height(mm) |
Lower height(mm) |
Lower dia.(mm) |
Color |
| B6000 |
193 |
75 |
220 |
Brown |
Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current
Applications:
The bushings are used for oil type distribution transformer.
Competitive advantages:
- Reasonable insulation structure high reliability of inter-turn insulation.
- Small volume light weight
- Stainless steel flange low magnetic inductivity high resistivity.
- Convenient transportation and flexible installation.
- Low loss
- Low temperature rise
- High mechanical strength, strong weather ability.
- Outstanding crack resistance.
- Low thermal expansion coefficient.
