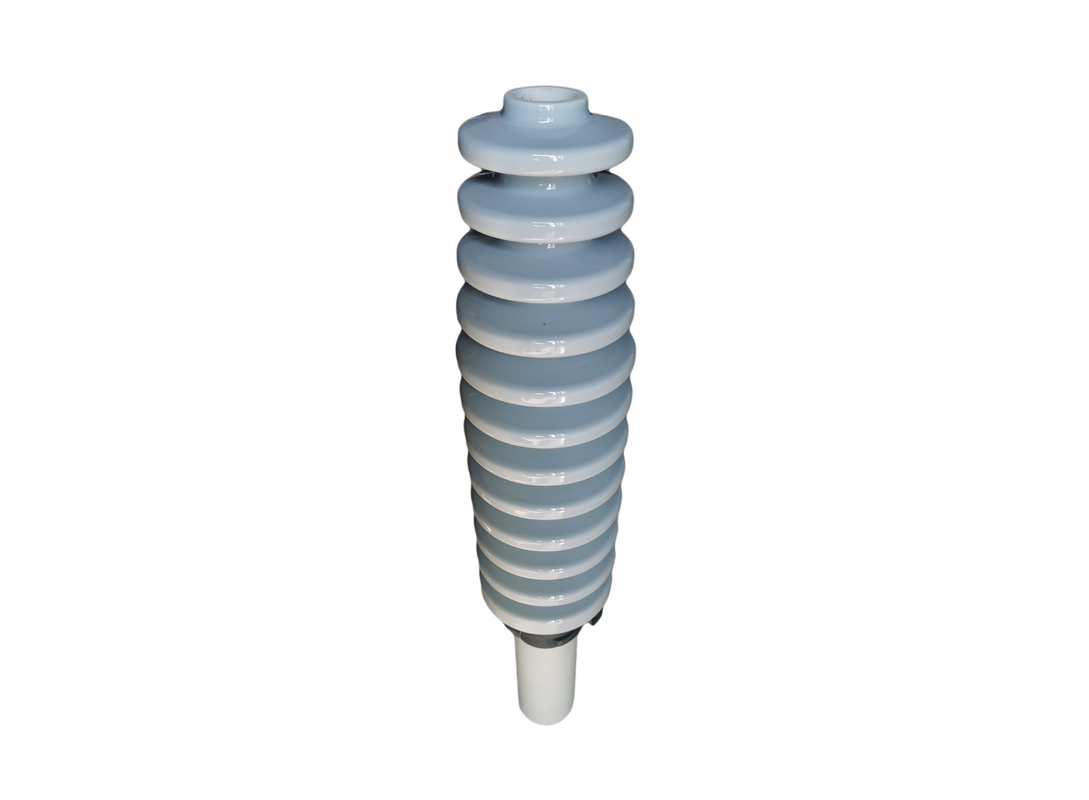

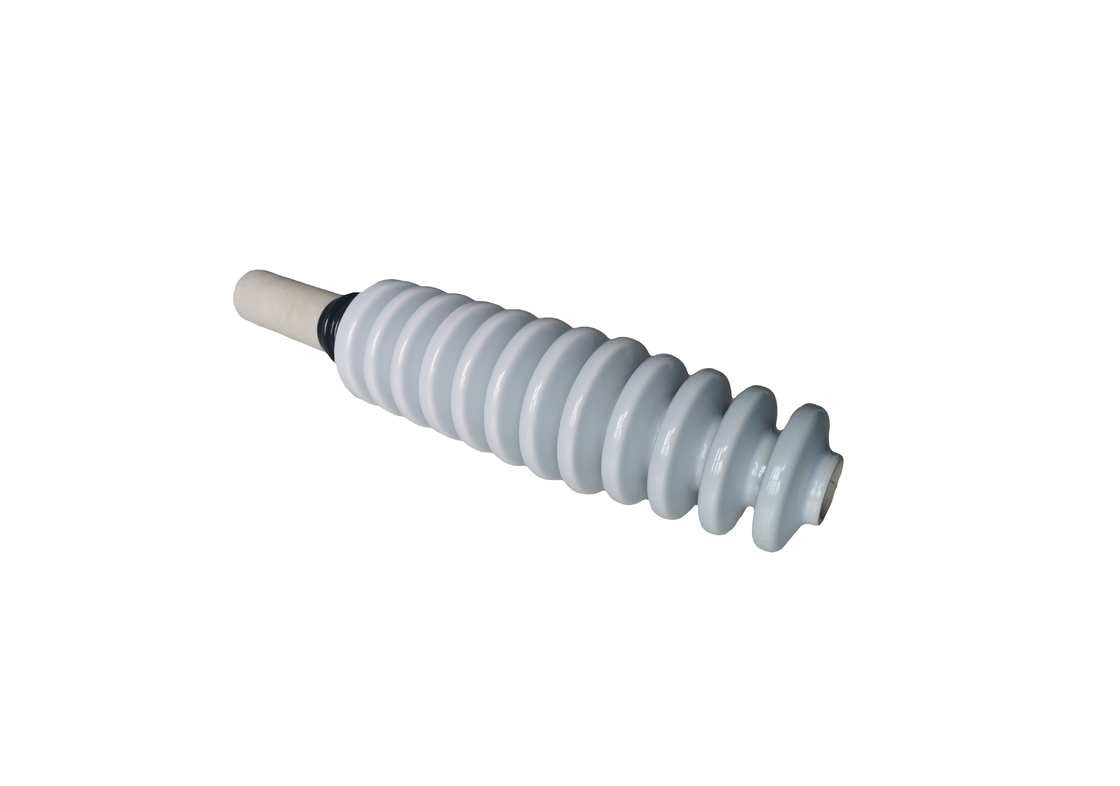

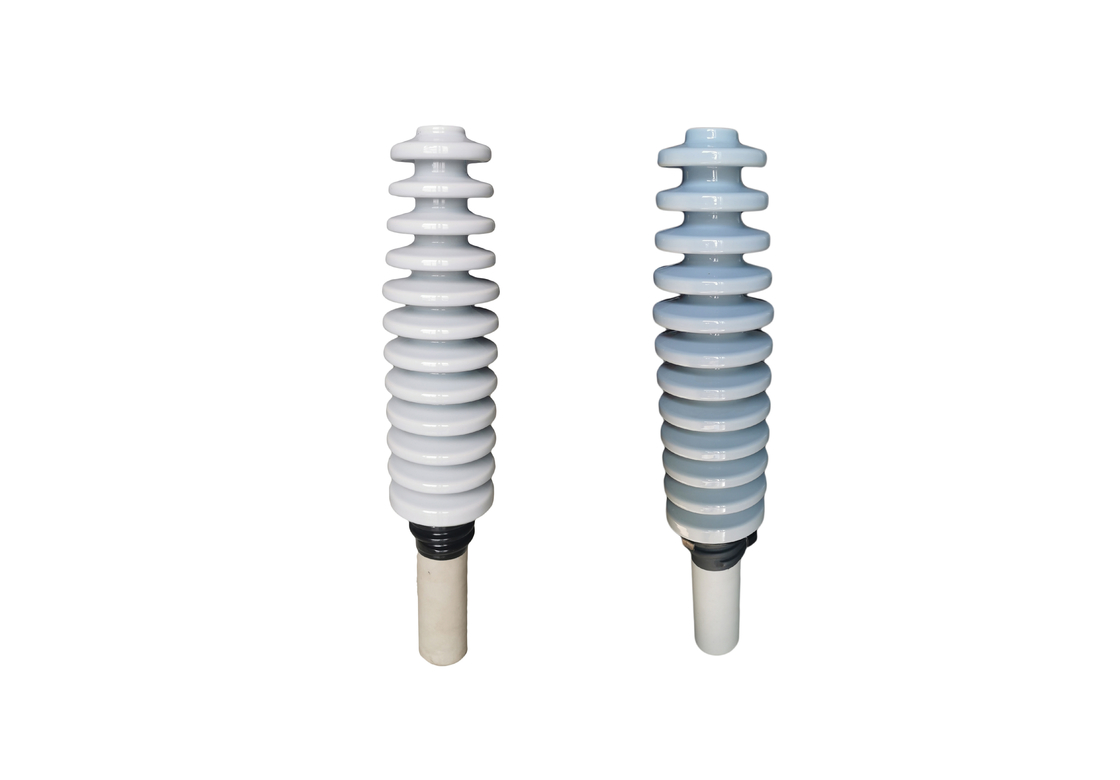

Semi Conductive Glazed HV Transformer Porcelain Bushing

Semi Conductive Glazed HV Transformer Porcelain Bushing

  • High Light

    HV Transformer Porcelain Bushing

    ,

    Semi Conductive Transformer Porcelain Bushing

    ,

    HV Glazed Porcelain Bushing

  • Color
    Light Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    34.5kV
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

Semi Conductive Glazed HV Transformer Porcelain Bushing



ANSI standard semi-conductive glazed HV transformer porcelain bushing





Description:

ANSI CLASS Height(mm) Creepage distance (mm) Dry arcing distance (mm) BIL(kV) Torsion strength (N.m)
34.5kV 580 785 350 150 20.3

ANSI standard semi-conductive glazed bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current.





Applications:



The bushings are used for oil type distribution transformer.





Competitive Advantages:



We offer 2-3 years quality guarantee.

Bushings have excellent performance due to many years' exporting experience.

OEM design available upon customer’s requirement or special technical specifications.





Ordering instructions:



1.If the transformer bushing is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.

2.When the user has special requirements, the design can be carried out according to the user's requirements.
