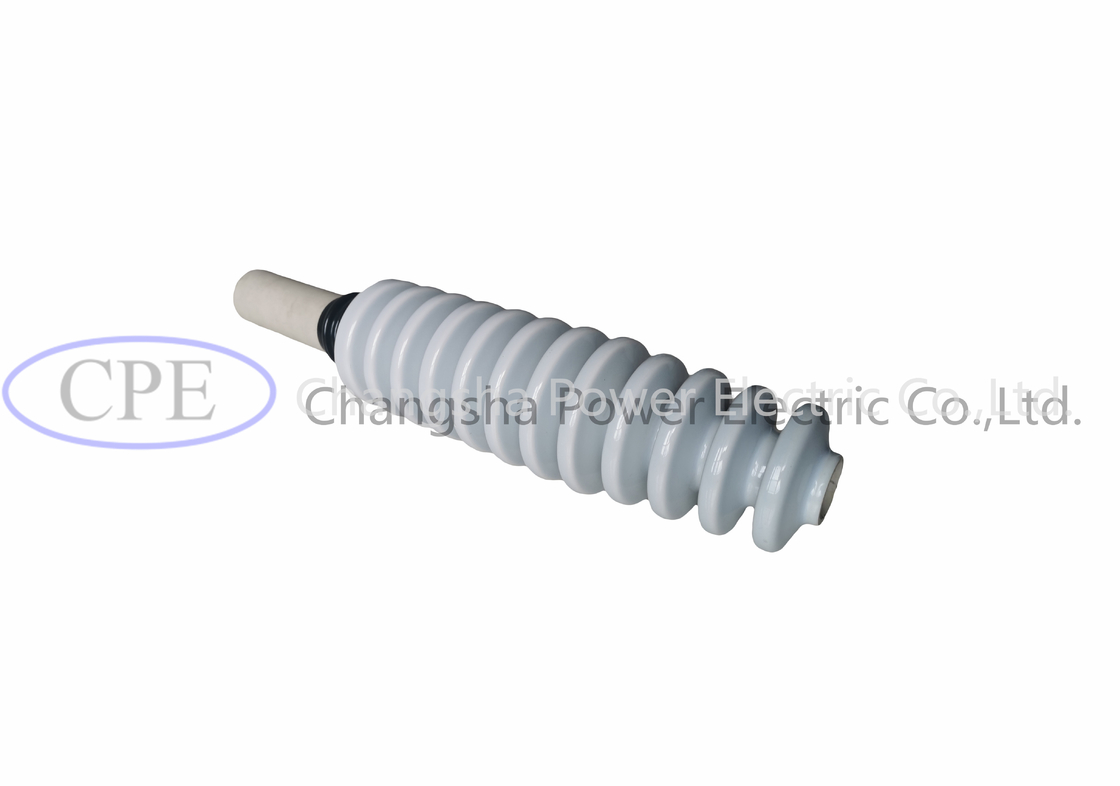

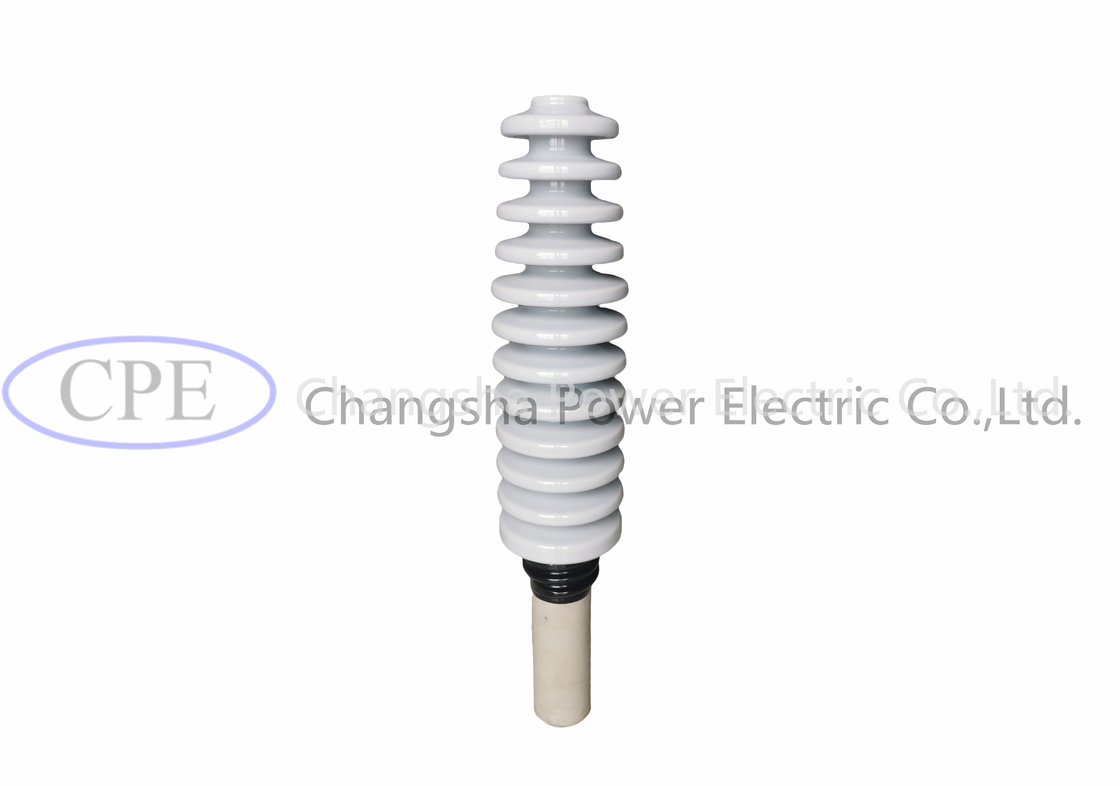

ANSI 36kV screwed transformer porcelain bushing light gray glaze
| ANSI CLASS | Height(mm) | Creepage distance (mm) | Dry arcing distance (mm) | BIL(kV) | Torsion strength (N.m) |
| 36kV | 745 | 1055 | 467 | 200 | 20.3 |
Applications:
Normally the bushing will be assembled with related hardwares and equiped in power transformer and distribution transformers etc.
Competitive advantages:
The porcelain glaze are smooth and shinning , it is easy for maintenance .
we tested each unit of transformer bushing to be sure all bushings are qualified . the tests including
routine visual inspection and electrical flashover test
sample test , for example dimensional check , porosity test etc.
on every lot of bushings.
in this case the user can use our product safely .
OEM product are available .
Our products are sold all over the world, you can rest assured.
