20.3Nm ANSI 18kV Transformer Porcelain Bushing For Distribution

20.3Nm ANSI 18kV Transformer Porcelain Bushing For Distribution

  • High Light

    ANSI 18kV Transformer Porcelain Bushing

    ,

    20.3Nm Transformer Porcelain Bushing

    ,

    ANSI 18kV Porcelain Bushing For Distribution

  • Color
    Light Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    18kV
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

20.3Nm ANSI 18kV Transformer Porcelain Bushing For Distribution

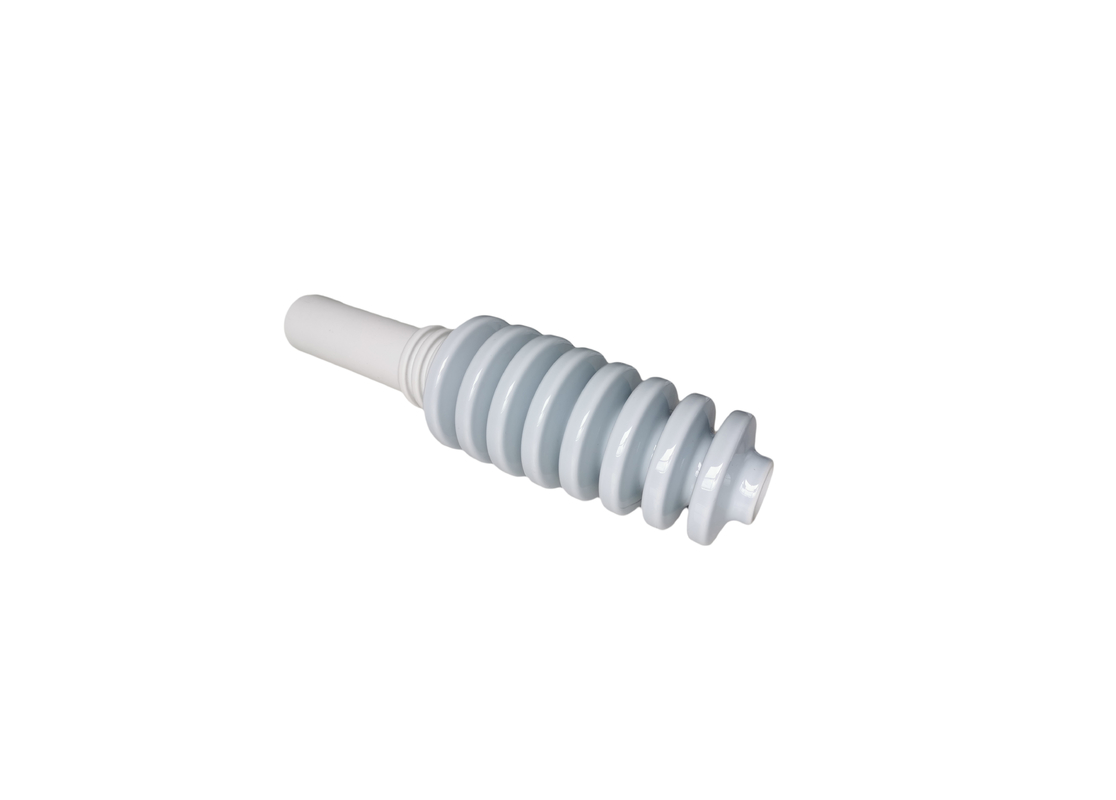

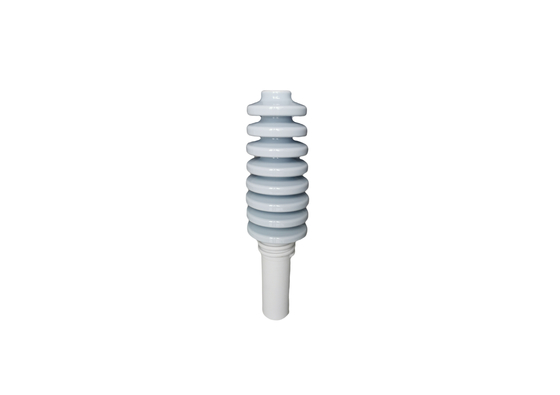

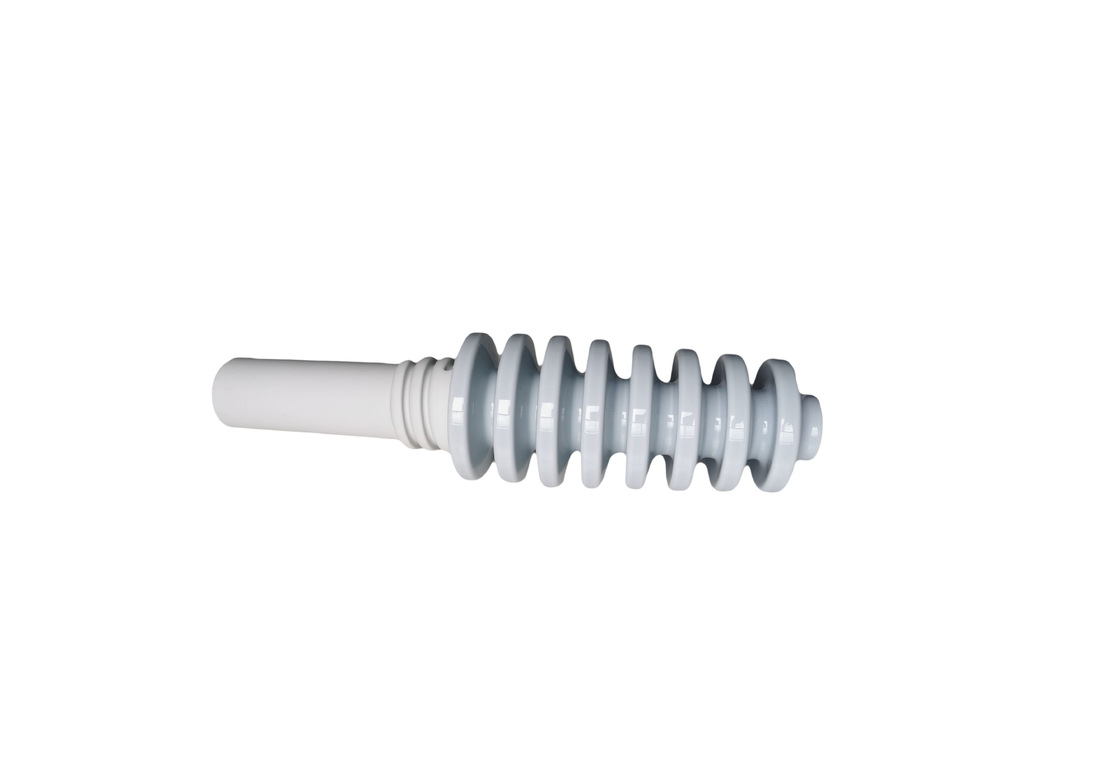

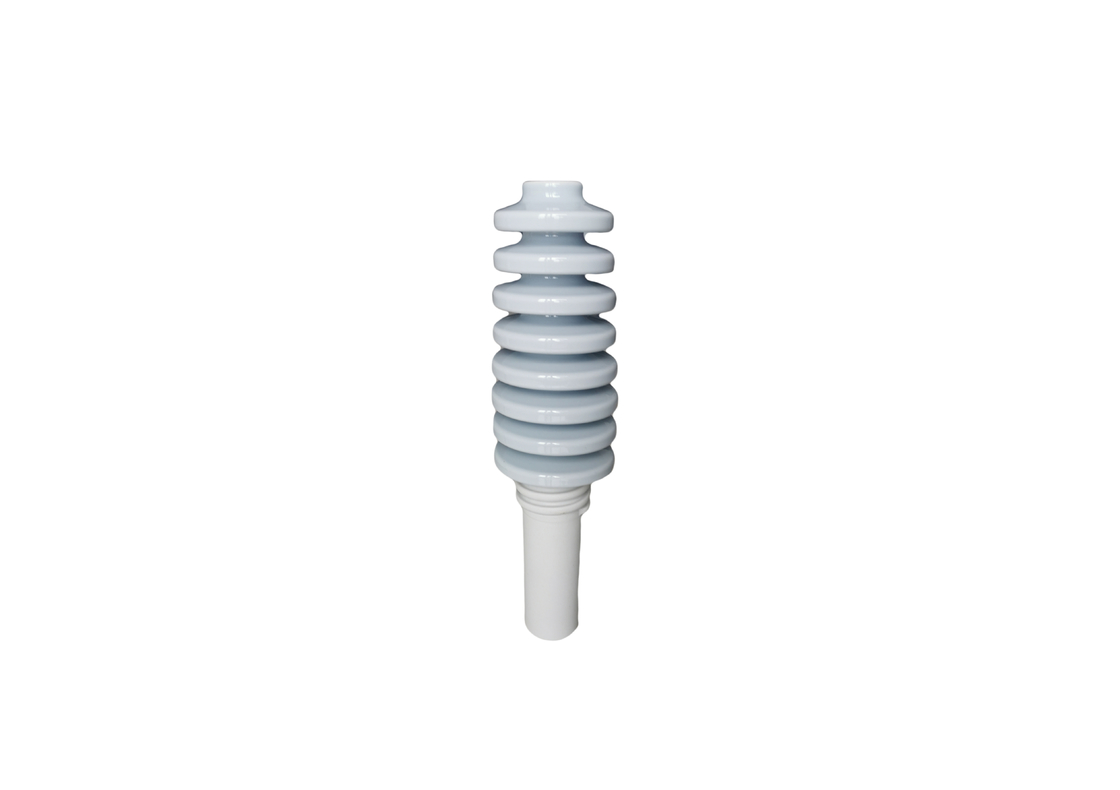

ANSI 18kV screwed transformer porcelain bushing for American light gray color


Description:
ANSI CLASS Height(mm) Creepage distance (mm) Dry arcing distance (mm) BIL(kV) Torsion strength (N.m)
18kV 422 460 220 125 20.3
The ANSI HV transformer bushing is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.



Applications:



Normally the bushing will be assembled with related hardwares and equiped in power transformer and distribution transformers etc. Used for oil type distribution transformers





Competitive Advantages:



1. Products are produced by ourselves, which ensures competitive prices, good profit margin and flexible services;

2. OEM & ODM services are acceptable and various styles, latest designs are recommended once in a while;

3. Very high mechanical strength for much longer time service;

4. Glaze is shinning and smooth ,free of defect;

5. Most reasonable price will help your product more competitive.
