Gray Color ANSI Class 1.2kV Low Voltage Bushing

Gray Color ANSI Class 1.2kV Low Voltage Bushing

Products - Transformer Porcelain Bushing
  • High Light

    1.2kV Low Voltage Bushing

    ,

    ANSI Class Low Voltage Bushing

    ,

    1.2kV White Porcelain Insulators

  • Color
    Light Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    1.2kV
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN PALLET
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

Gray Color ANSI Class 1.2kV Low Voltage Bushing

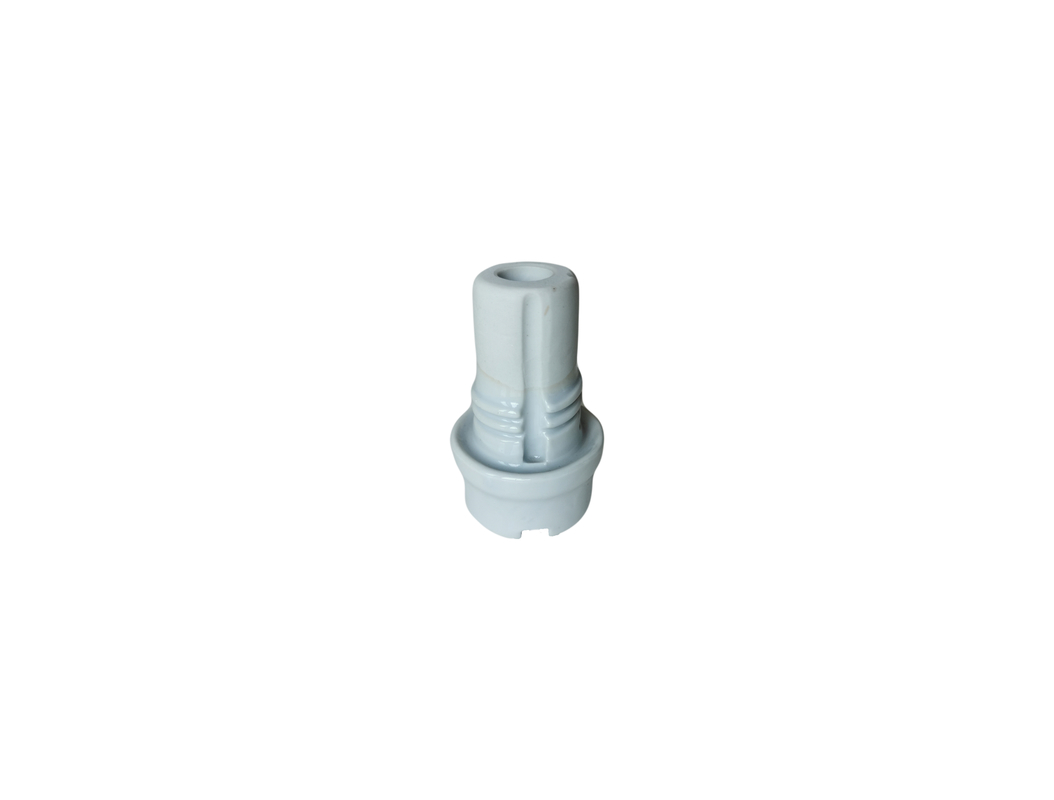

  • Gray Color ANSI Class 1.2kV Low Voltage Bushing

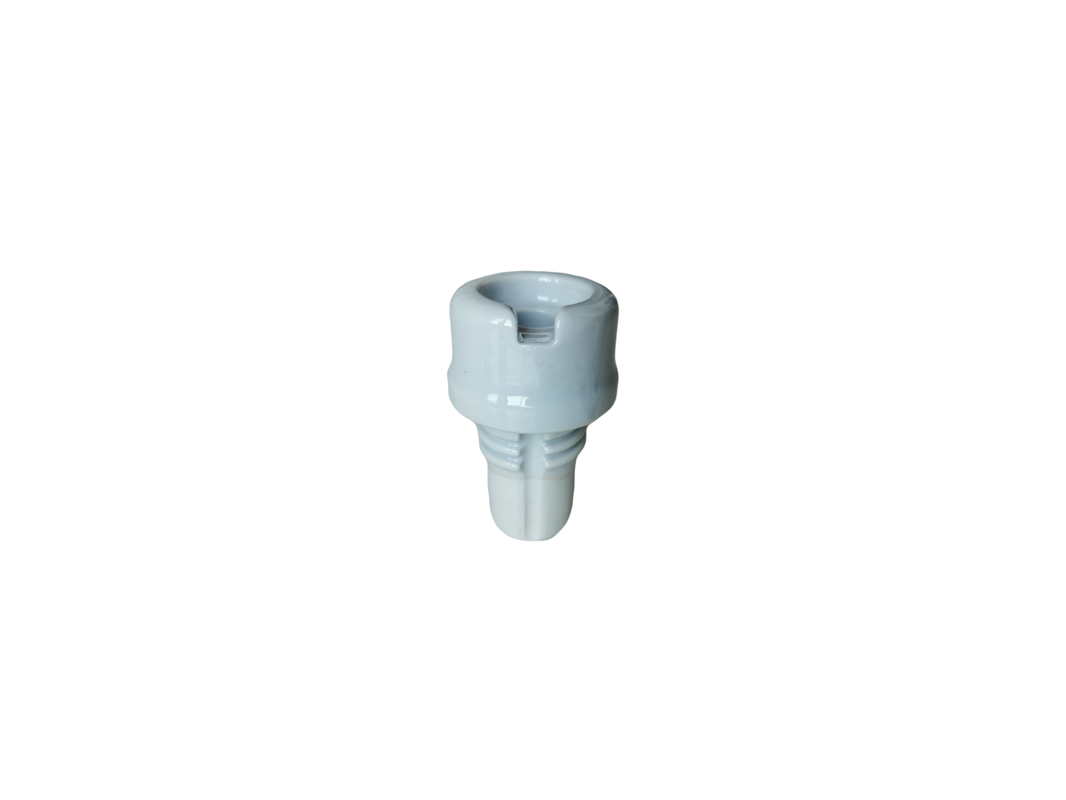

  • Gray Color ANSI Class 1.2kV Low Voltage Bushing

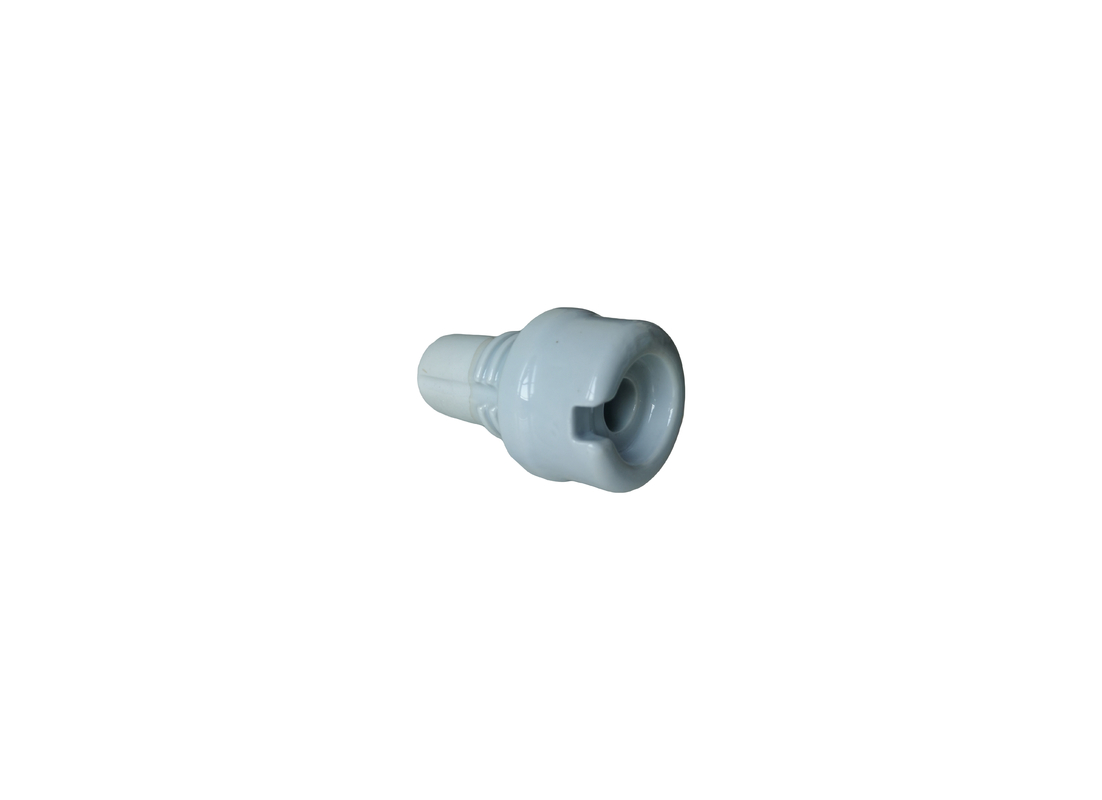

  • Gray Color ANSI Class 1.2kV Low Voltage Bushing

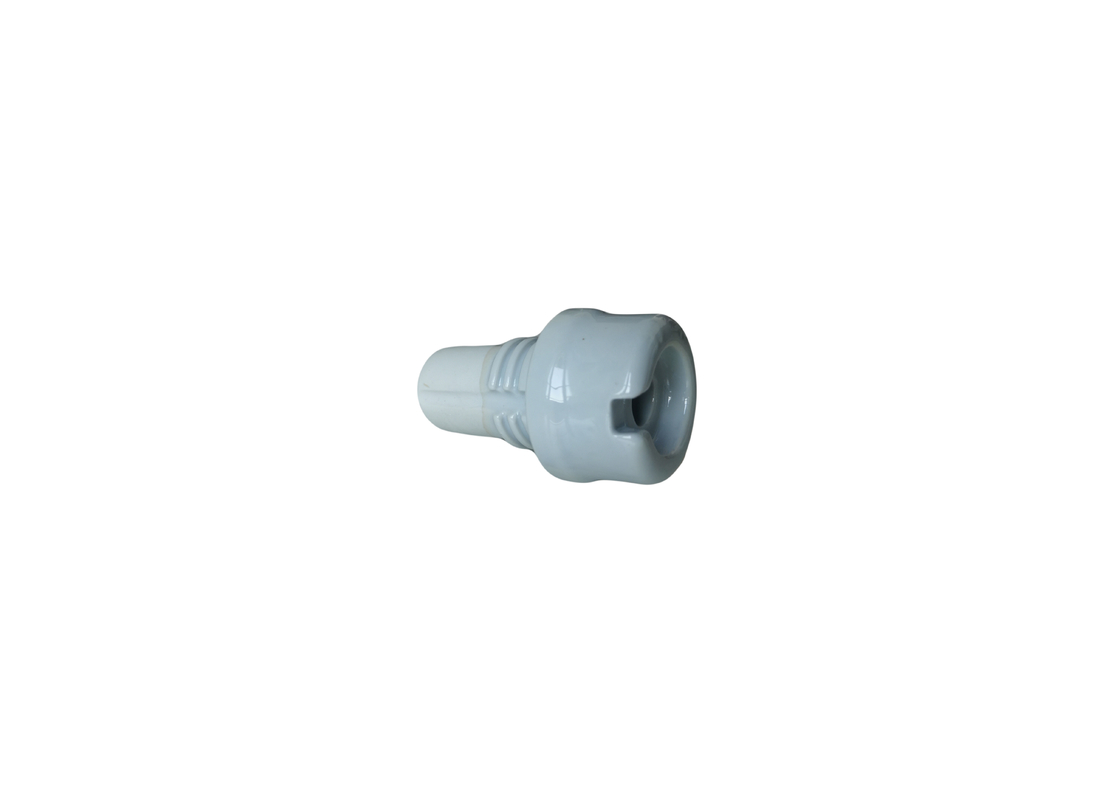

  • Gray Color ANSI Class 1.2kV Low Voltage Bushing
Get Price Contact Now



Low voltage Thread transformer porcelain bushing in gray color / US market





Description:
ANSI CLASS Height(mm) Creepage distance (mm) Dry arcing distance (mm) BIL(kV) Torsion strength (N.m)
1.2kV 81 28 25 30 24.4
The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below.



Applications:



At present,the bushing are mainly configured with copper conductor or aluminum conductor,in which the aluminum conductor is cheaper but with equal performance.





Competitive advantages:



Products are produced by ourselves, which ensures competitive prices, good profit margin and flexible services

OEM & ODM services are acceptable and various styles, latest designs are recommended once in a while;

We have large market share home and abroad;

We have lots of experience in providing good service to retailers;
