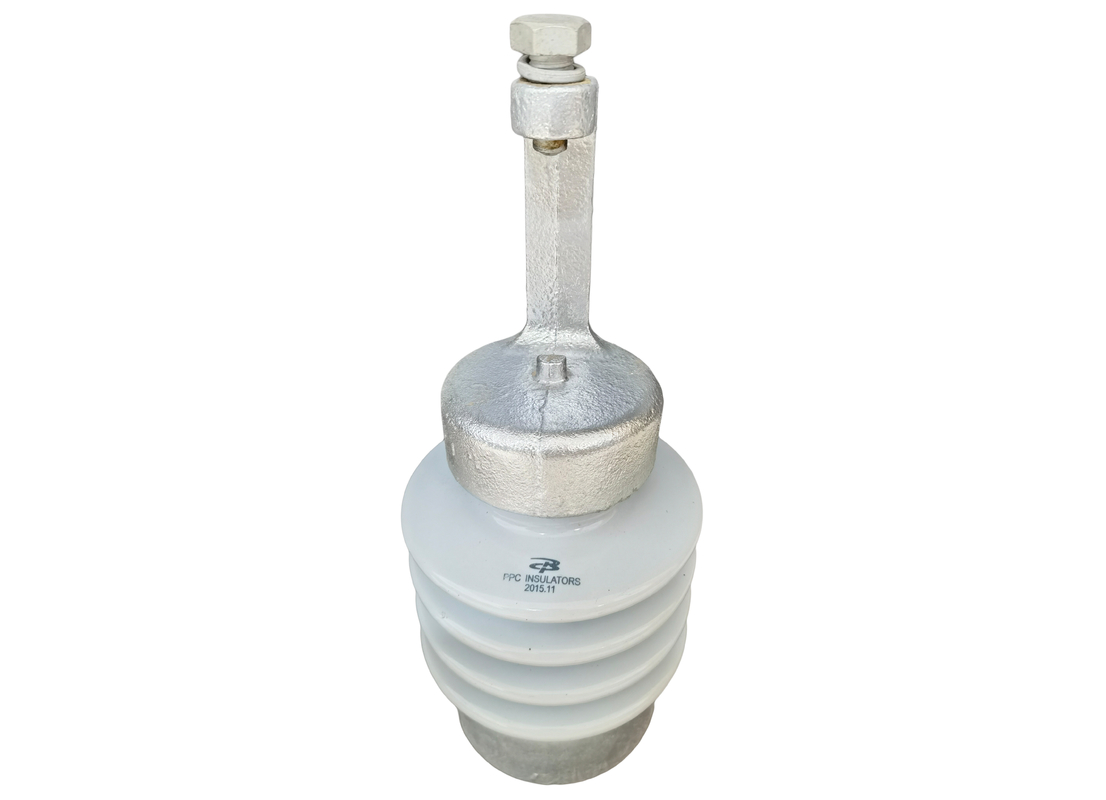

OEM ANSI 5225 Line Post Insulators PPC
Pre-sales service:
Choose the proper reactor type
Installation recommendations and to provide technical information
Satisfied users of the special design requirements
After-sales service:
Offer professional equipment installation instructing
Provide spare parts for wearing parts(such as post insulator, bolt, etc.)
specification:
| IEC CLASS | Height(mm) | Shed dia.(mm) | Creepage distance (mm) | Power frequency withstand voltage(kV) | Impulse withstand voltage(kV) |
| 4001 | 471 | 120 | 645 | 60 | 20.3 |
Descriptions:
Line post insulators shall conform in all respects to the requirements of ANSI standard.
The insulators shall be made of good commercial-grade wet-process porcelain.The entire surface of the insulator,
with the exception of a firing surface, shall be glazed.If gray is required, it shall be in accordance with ANSI Z55.1-1967 (R1973).

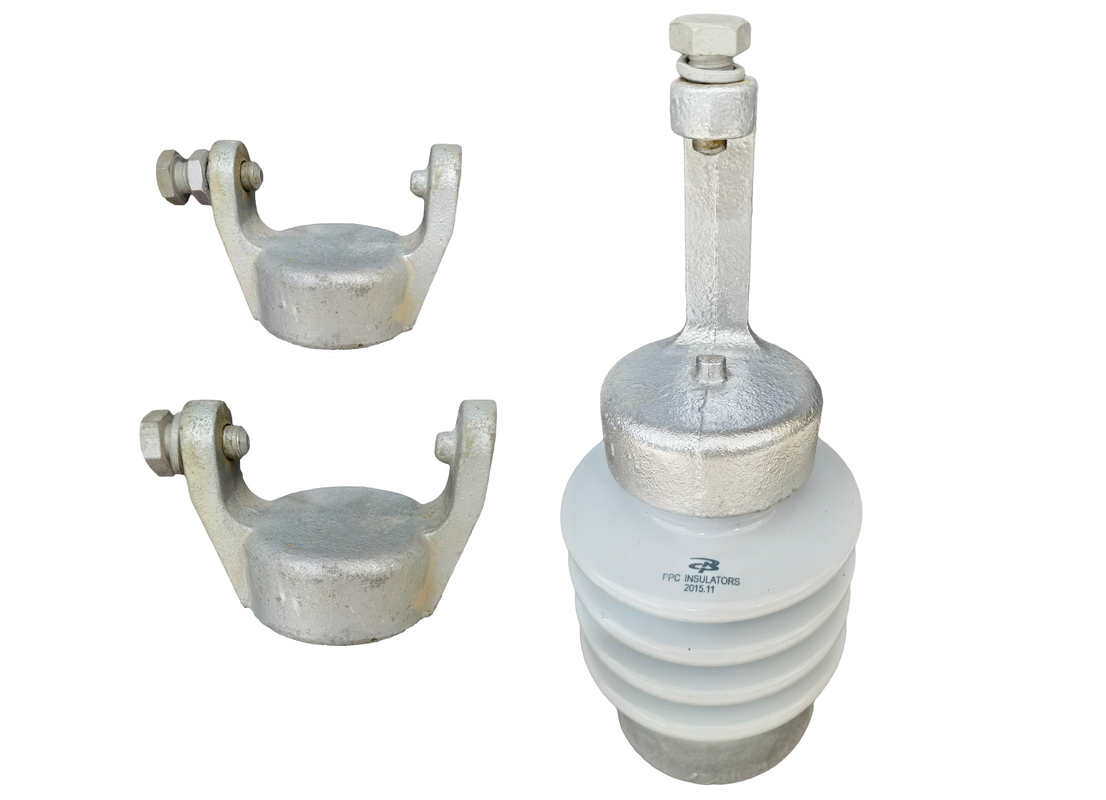

Metal parts shall be made of a good commercial grade of malleable iron, ductile iron, steel, or
aluminum. Ferrous parts, other than stainless steel, shall be galvanized in accordance with ASTM A153.
Our products are sold all over the world, you can rest assured.
