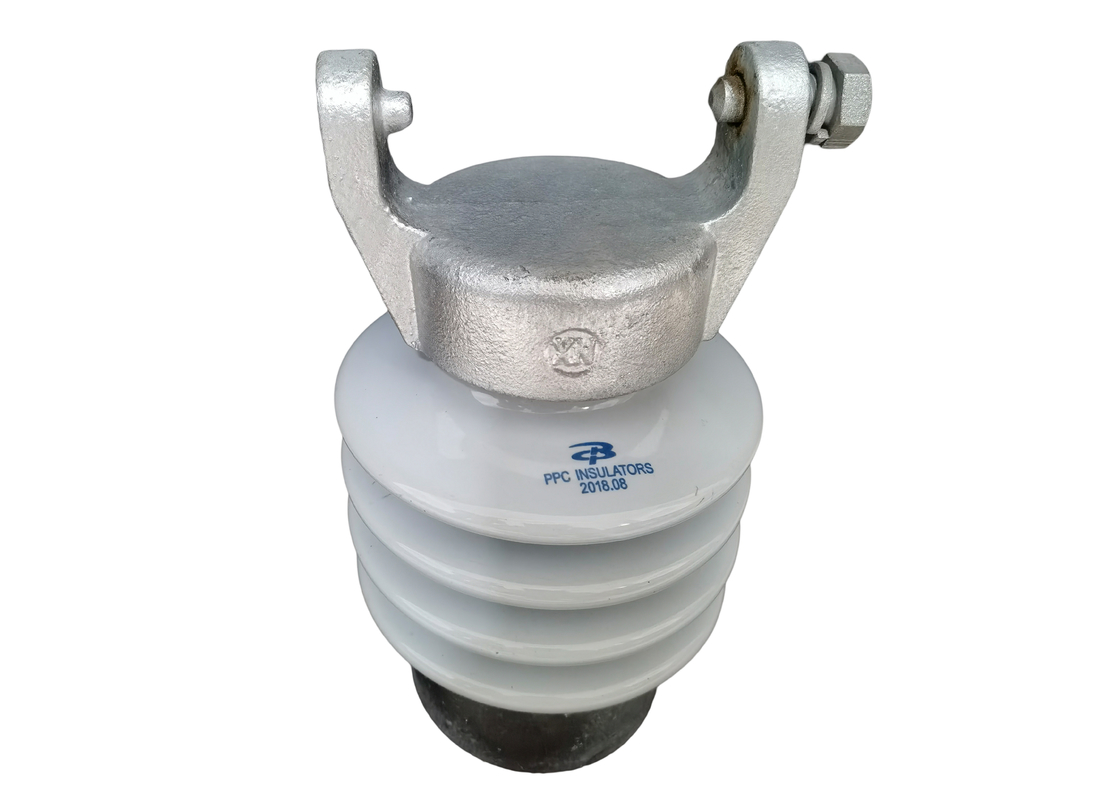

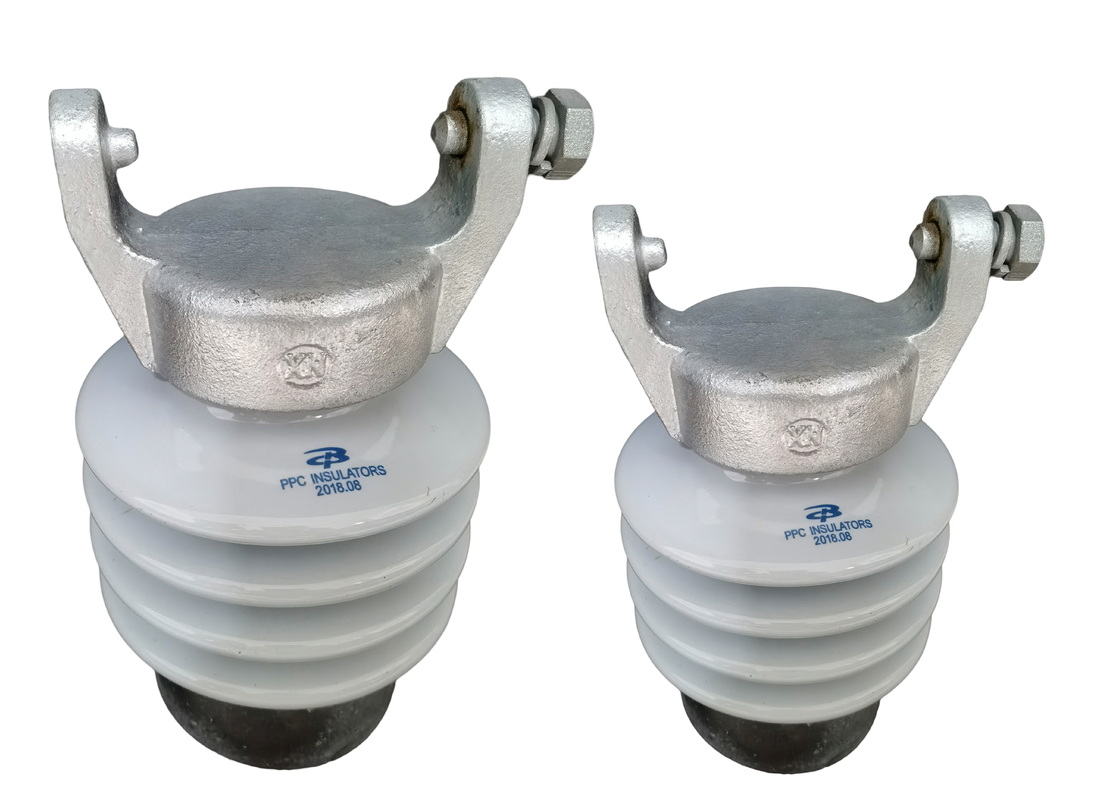

High Mechanical Strength C-120 Porcelain Line Post Insulator Low loss

High Mechanical Strength C-120 Porcelain Line Post Insulator Low loss

  • High Light

    C-120 Porcelain Line Post Insulator

    ,

    Porcelain Line Post Insulator Low Loss

  • Color
    Light Gray
  • Material
    Porcelain C-120
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    5325
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

High Mechanical Strength C-120 Porcelain Line Post Insulator Low loss

ANSI OEM Porcelain 5325 Line Post Insulator



Descriptions:



Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body.



Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.



Either chocolate brown or Munsell gray glaze is available. caps and flanges are ferrous, hot dip galvanized. thread holes are proper tapped.





specification:



DIN 42531 Height(mm) Creepage distance (mm) Power frequency withstand voltage(kV) Lightning impluse withstand voltage(kV) Weight(kg)
30NF250 485 600 70 170 6.6









Competitive advantages:



Low loss.



Low temperature rise.



Outstanding crack resistance.



Low thermal expansion coefficient.



High mechanical strength, strong weather ability.



Convenient transportation and flexible installation.



Stainless steel flange low magnetic inductivity high resistivity.



Reasonable insulation structure high reliability of inter-turn insulation.
